PAM8403 Mini 5V Digital Small Power Amplifier Board with Switch Potentiometer USB Power Supply Good Sound EffectItem NO.: GF1002
-
Customized Requirements
- Quantity
-
-
- Product Name: PAM8403 Mini 5V Digital Small Power Amplifier Board with Switch Potentiometer USB Power Supply Good Sound Effect
- Item NO.: GF1002
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: PAM8403 , Mini 5V , Digital Small Power Amplifier Board , Switch Potentiometer
- Creation Time: 2024-03-27
PAM8403 5V Mini Power Amplifier Board
With
Switch PotentiometerProduct Information:
PAM8403 is a small digital power amplifier chip. The high-definition sound quality highlights the advantages of the digital chip. The circuit adopts reasonable peripheral configuration, and the power filter is upgraded to 470uf (some sellers have less than 100uf or even no capacitance) 1.6mm glass fiber board. The power amplifier board is meticulous, and the output of 3W+3W high fidelity sound quality is a good product for power amplifier enthusiasts. The potentiometer uses the original anti meter body, with a service life of up to 15 years, Potentiometer with switch can directly cut off the power supply when it is reversible, which has been highly praised by buyers since it was listed on the market!
Product Parameters:
● Product name: PAM8403 digital power amplifier board
● Specification and model: GF1002
● Power supply range: 5v DC
● Low output: 3W * 2

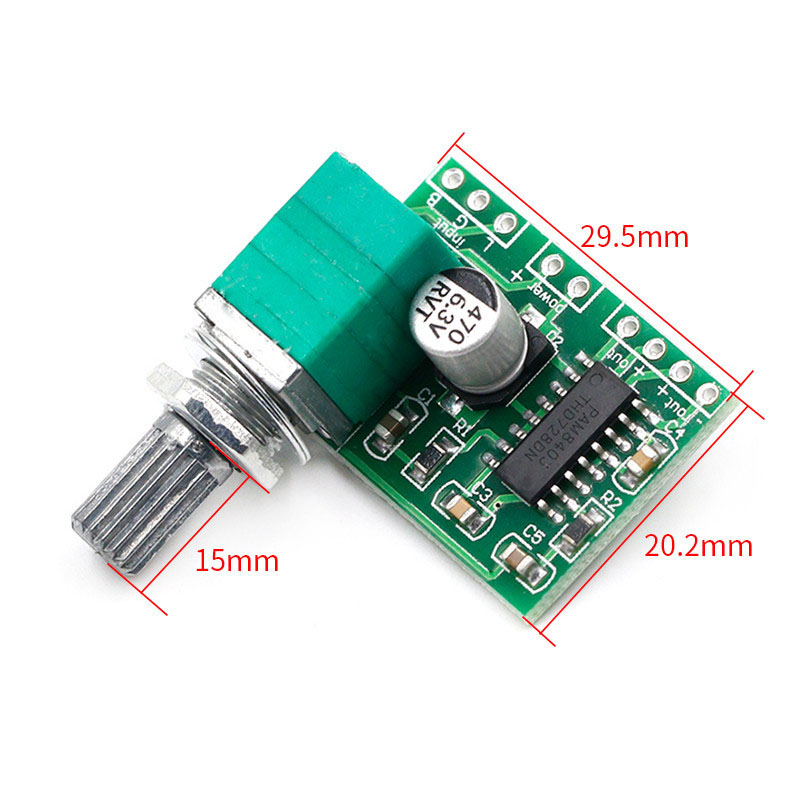

● Appearance dimension: 29.5 * 20.2 * 15mm (excluding protruding potentiometer rod)
