Ultra-Small Power Bank With Power Indicator 3A High Efficiency Step-up Board DC-DC Booster ModuleItem NO.: MK01085

Ultra-Small Power Bank Step-up Board

Product Information:

New high efficiency high current mobile power board, Z large 2A output, integrated with over discharge, over current, and over temperature protection. The choice of DIY mobile power supply is based on the indication of charging capacity, excellent price, and outstanding performance.

Module Parameters:

● Module Name: 3A Booster Mobile Power Board

● Module nature: Non isolated boost module (BOOST)

● Input voltage: 2.6-5.5V

● Output voltage: 5V

● Input current: 0-3A

● Output current: 0-2A

● Operating temperature: -40~+85 degrees Celsius

● Operating frequency: 1.2MHz

● Conversion efficiency: 93% higher in Z (efficiency is related to input and output voltage, current, and voltage difference)

● Overcurrent protection: Yes

● Overtemperature protection: Yes (automatic shutdown output after overtemperature)

● Input reverse protection: None, (if necessary, please input a diode in series)

● Battery indicator: Red light on at 3.6V

● Identification resistor: tablet, iPad, iPhone

● Installation method: 2 3mm screws

● Wiring method: Welding, V-IN as input, USB as output,

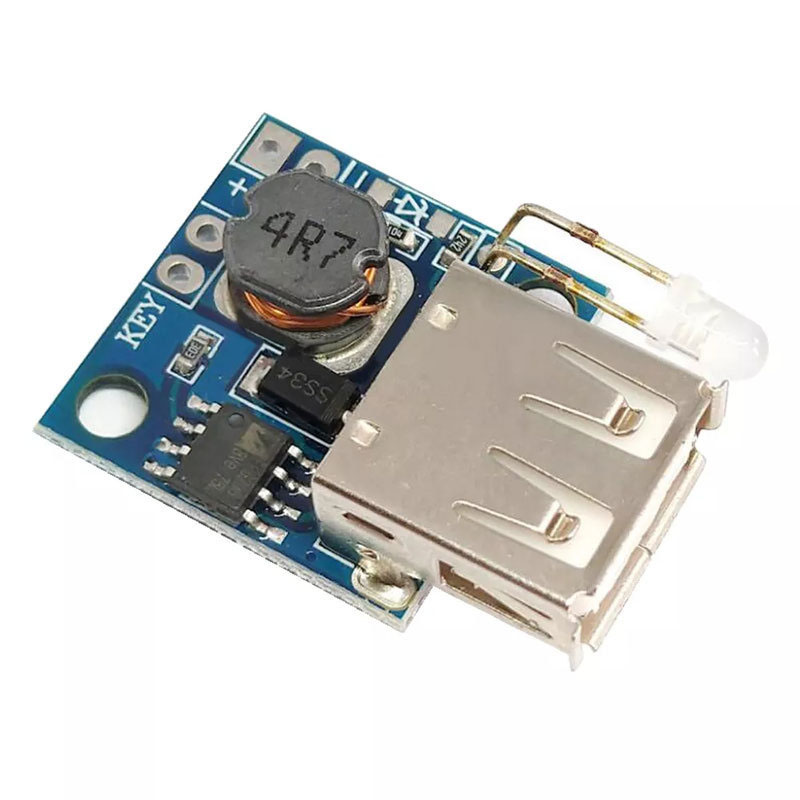

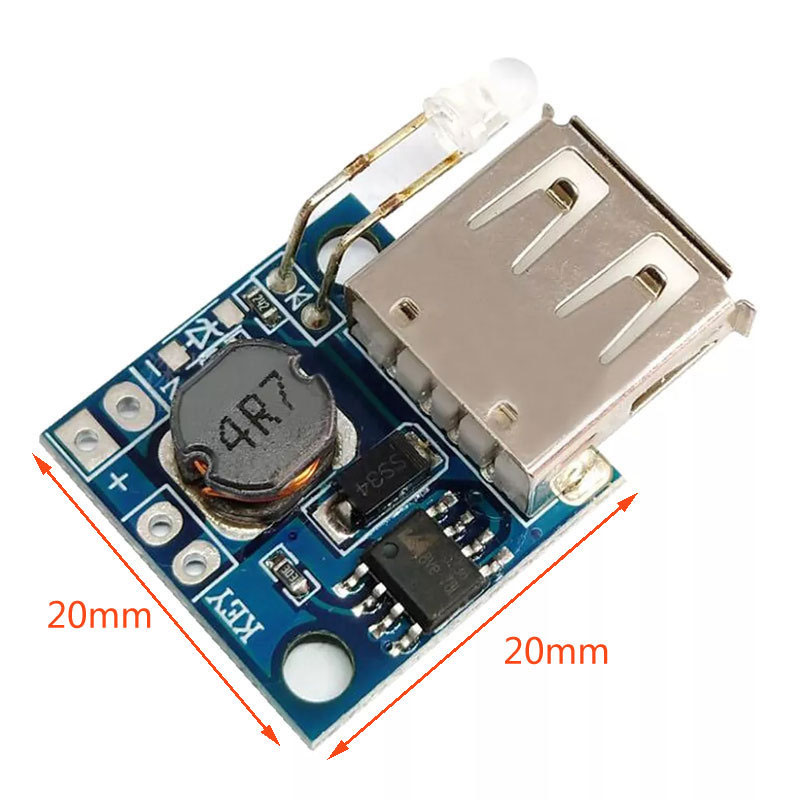

● Module size: length 20mm, width 20mm, height 6.8mm

Application Scope:

This module can be applied to single lithium-ion batteries with 5V-12V output, for general digital product charging, such as mobile phones, iPad, MP3, PSP, etc. Equipped with a charging circuit and a battery indicator circuit, it can become a high current output mobile power supply by simply connecting the battery. You can also set the output voltage to power products between 5-12V.
