Home>Electronic Modules>Audio Amplifier >PAM8610 Dual Channel 12V High-definition Power Amplifier Board Pure Digital 15W*2 High-power Amplifier Module
PAM8610 Dual Channel 12V High-definition Power Amplifier Board Pure Digital 15W*2 High-power Amplifier ModuleItem NO.: PAM8610 Black 15W*2
US$ 4.64
-
Customized Requirements
- Quantity
-
Adding to cart succeed
PAM8610 Dual Channel 12V High-definition Power Amplifier Board Pure Digital 15W*2 High-power Amplifier Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: PAM8610 Dual Channel 12V High-definition Power Amplifier Board Pure Digital 15W*2 High-power Amplifier Module
- Item NO.: PAM8610 Black 15W*2
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: 12V , Digital , Dual Channel , Power Amplifier Board , PAM8610 , High-definition , 15W*2 , High-power Amplifier Module
- Creation Time: 2024-03-27

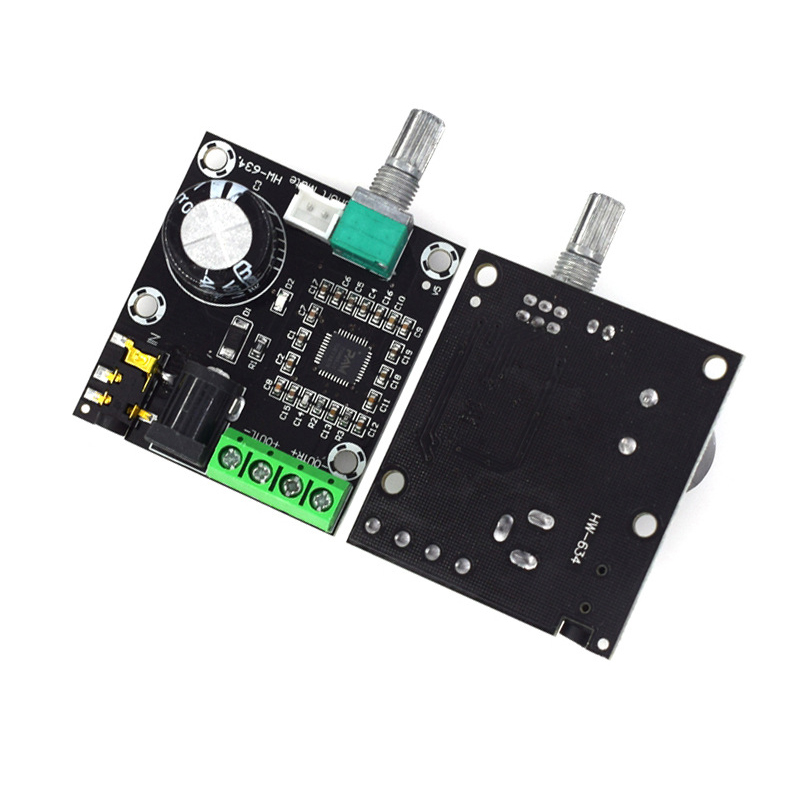

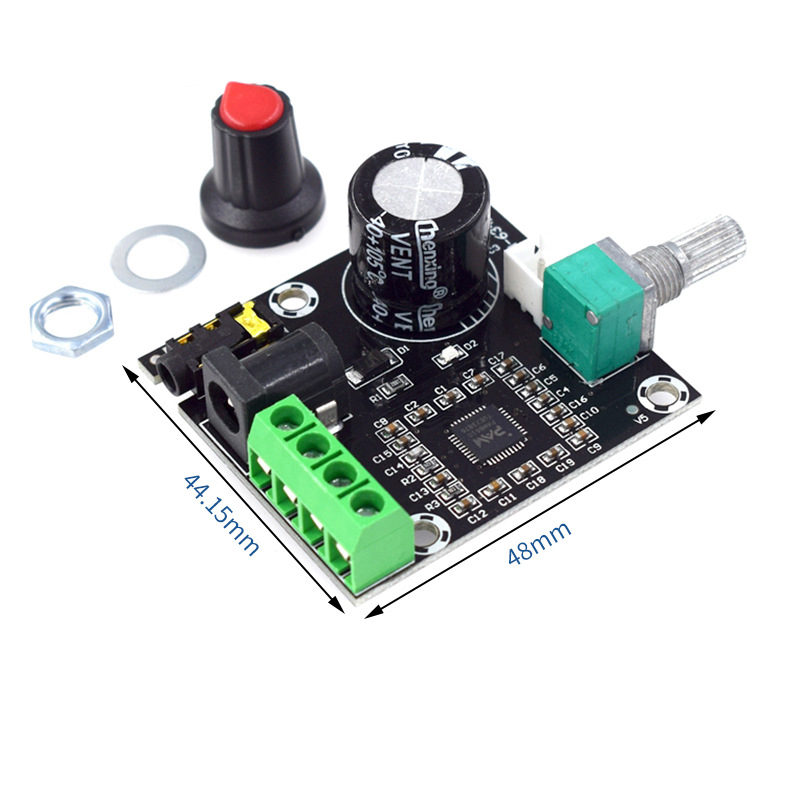

PAM8610 Power Amplifier Board Module 15W * 2
Product Parameters:
● Product name: digital audio amplifier board
● Working mode: Class D (PWM modulation)
● Chip selection: PAM8610
● Power supply range: DC 6-15V (protection)
● Recommended voltage: DC 6-12V
● Output power: 10w * 2 (8 Ω) 15w * 2 (4 Ω)
● Heat dissipation volume: no heat dissipation is required
● Frequency response: 20HZ-15KHZ
● Channel type: dual channel
● Static current: 20mA (DC12V)
● Signal to noise ratio: 90%
● Recommended speaker: 10-100W
● Input impedance: 20M lossless
● Output impedance: 4-8 Ω
● Harmonic distortion:<0.1%
