PN532 NFC RFID V3 Module Near-Field Communication Support With Android Mobile Phone Communication Red VersionItem NO.: PN532-Red

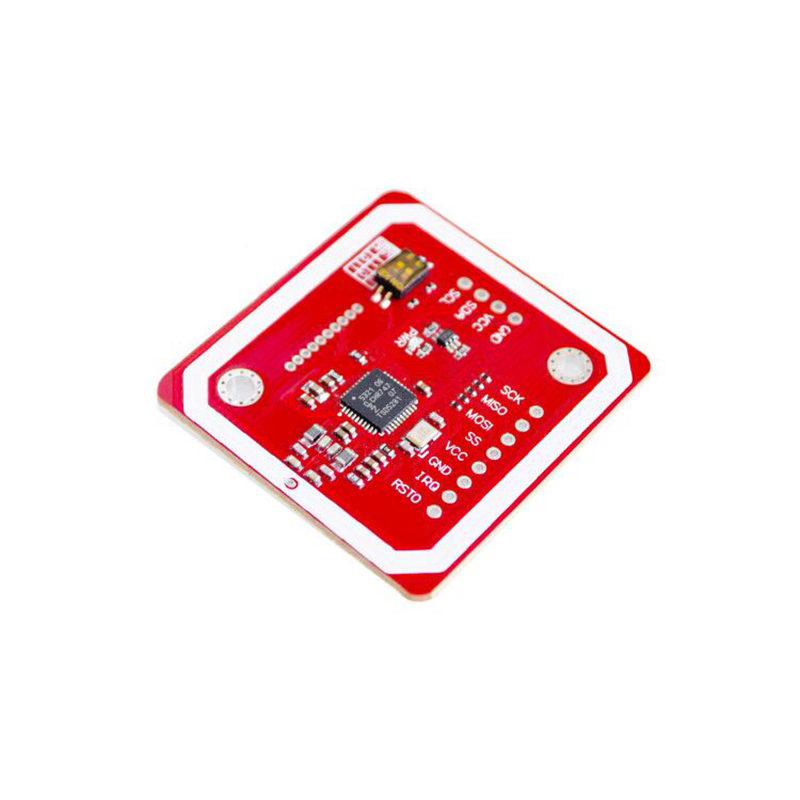

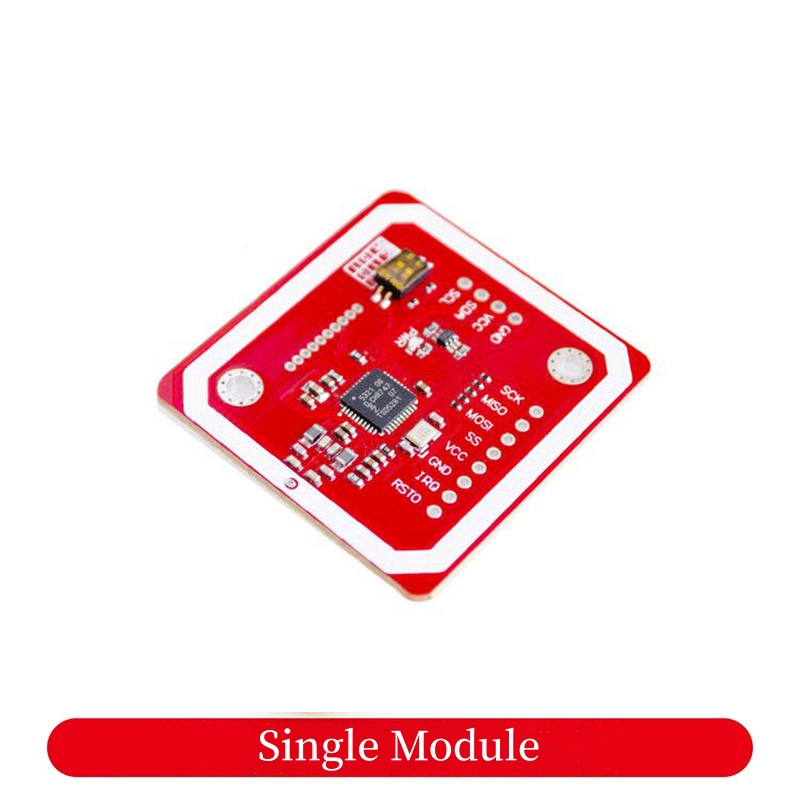

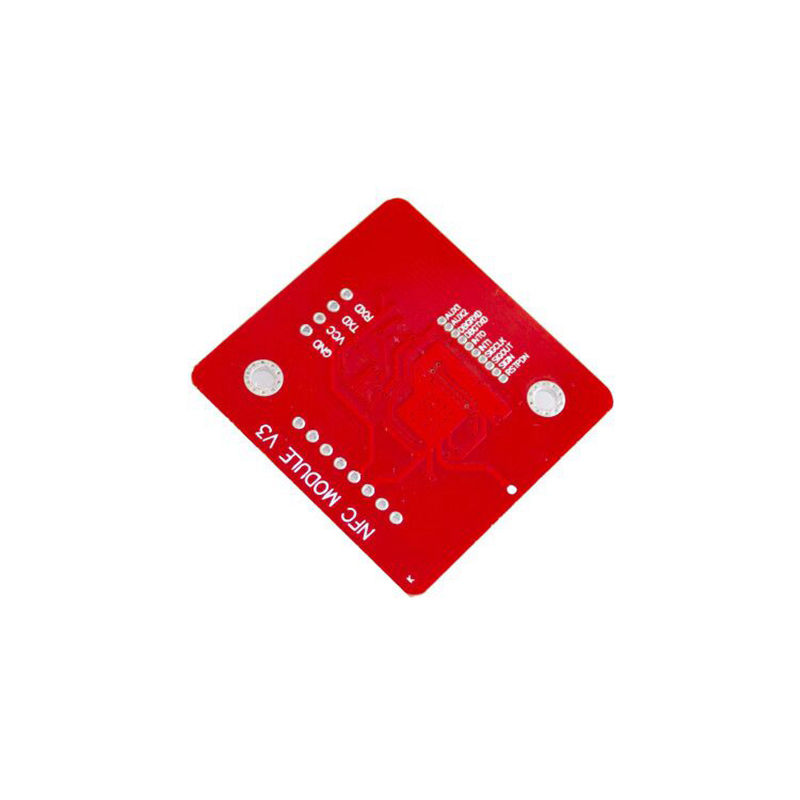

PN532 NFC RFID V3 Module-Red

Product Description:

NFC is a popular technology in recent years. We often hear about this work though smartphones. Almost all mobile phone markets support NFC.

Near Range Communication (NFC) is a group of wireless communication devices used for smart phones and similar devices to establish wireless communication and to collide with each other or take them to the near standard, usually no more than a few centimeters.

For electronics enthusiasts, we also want to use NFC technology to do our own thing. So we build this NFC RFID module. This module focuses on NXP PN532. NZP PN532 is very popular in NFC region. And the company to provide multiple technical documents to help. Our development is based on the official document module. To make things easier, we also built the library module.

We almost broke all the nxp532 IO pins in this module. Users can connect easily. Our sensor shield is easy to plug and play. However, if the user wants to use other interfaces such as UART and SPI, the module can also easily connect these pins.

Feature :

1.Gilt PCB and Small dimension and easy to embed into your project

2.Support I2C.SPI and HSU (High Speed UART), Change between those modes

3.Support RFID reading and writing; SupportP2P communication with peers; Support NFC with for Android phone

4.Typical Operating Distance have been updated to 5cm~7cm reading distance

5.Work in NFC Mode or RFID reader/writer Mode

6.RFID reader/writer supports:

1) 1k, 4k, Ultralight, and DesFire cards

2) ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)

3) Innovision Jewel cards such as IRT5001 card

4) FeliCa cards such as RCS_ 860 and RCS_ eight hundred and fifty-four

7.Plug and play, for compatible

8.Built in PCB Antenna, with 4cm~6cm communication distance

9.On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI

10.Work as RFID reader/writer

11.Work as 1443-A card or a virtual card

12.Exchange data with other NFC devices such as smartphone

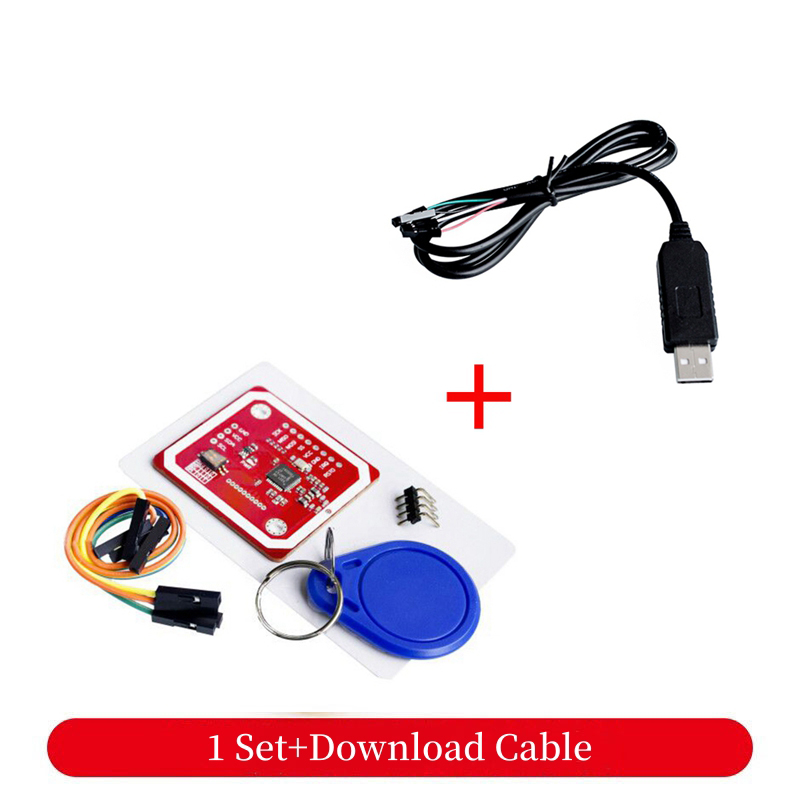

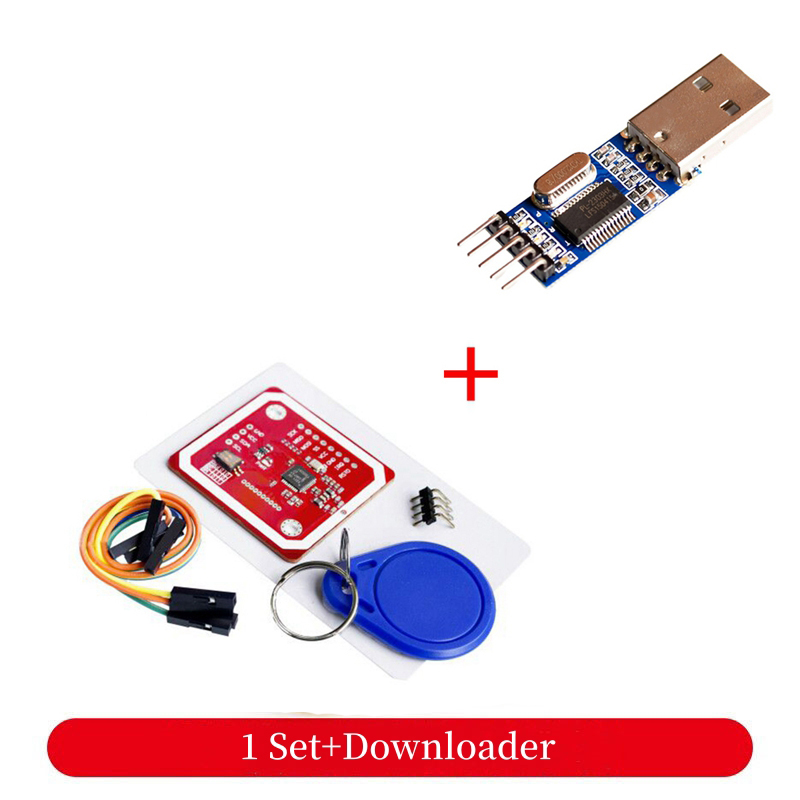

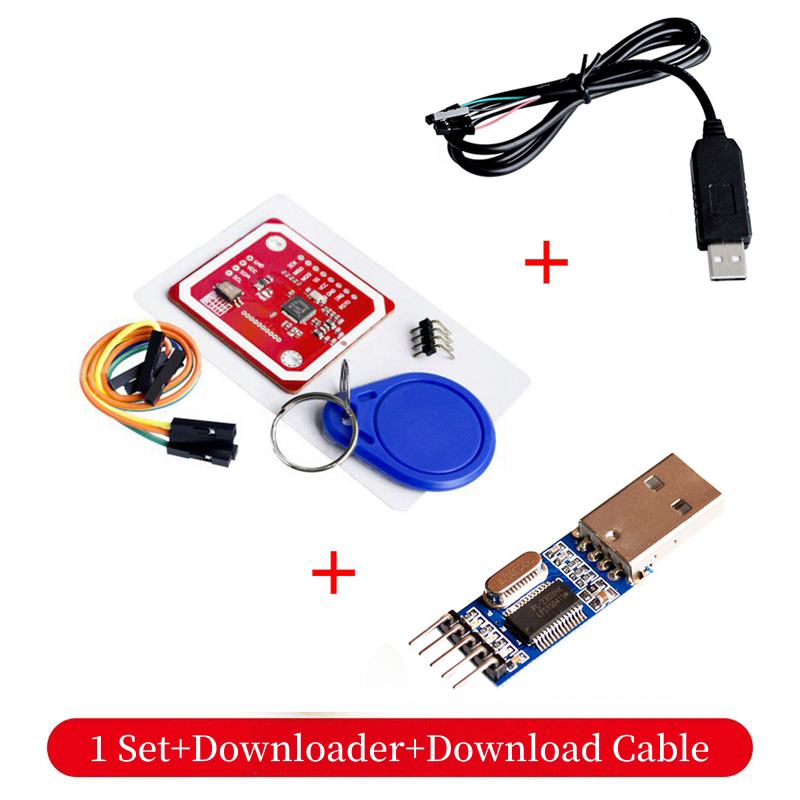

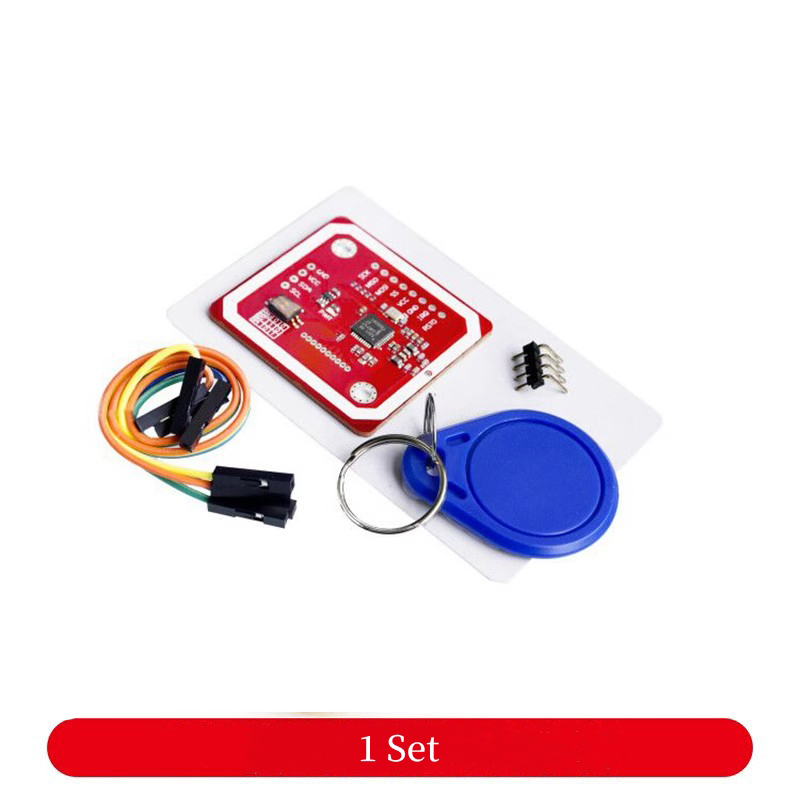

Package Included:

●1x1PCS*PN532 NFC RFID Module

●1x 2.54mm spacing 4pin Cable

●1x White Card

●1x Key Card

●1x12P bended male pins
