BT-09 Bluetooth 4.0BLE Module Serial Port Leads Out CC2541 Compatible with HM-10 Module and Connects to MicrocontrollerItem NO.: BT-09
-
Customized Requirements
- Quantity
-
-
- Product Name: BT-09 Bluetooth 4.0BLE Module Serial Port Leads Out CC2541 Compatible with HM-10 Module and Connects to Microcontroller
- Item NO.: BT-09
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: Bluetooth , Module , 4.0BLE , CC2541 , BT-09
- Creation Time: 2024-03-26

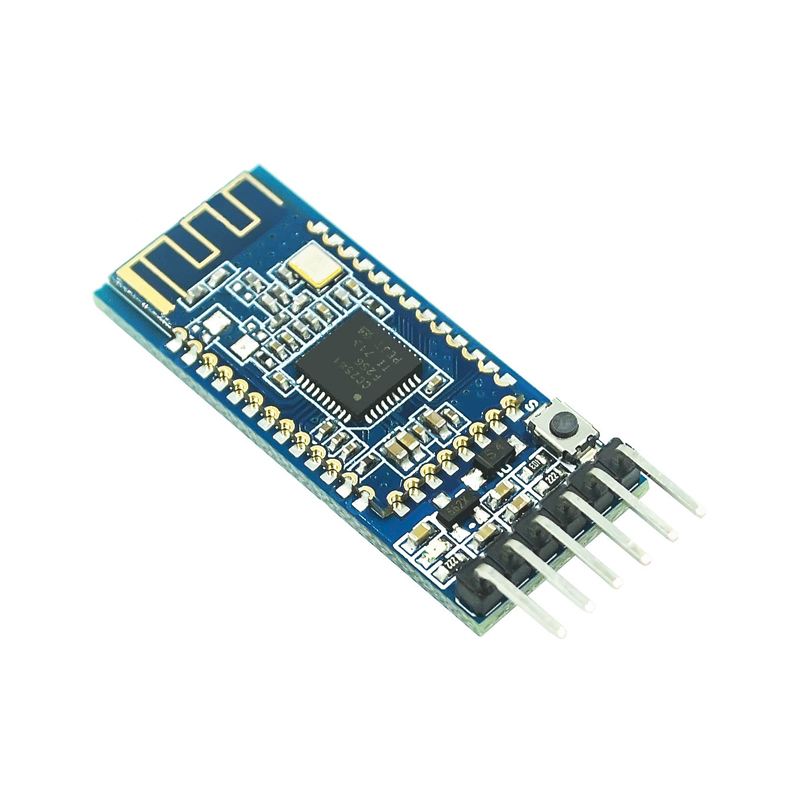

BT-09 Bluetooth 4.0BLE Module
Product Description:
●Input voltage: 3.3V/5V requires only one set of power supply.
●Built in level conversion function.
●If a 5.0V MCU is used to communicate with the Bluetooth module, the 5.0V power port is powered, and the RX TX logic level is 5V
●If a 3.3V MCU is used to communicate with the Bluetooth module, the 3.3V power port is powered, and the RX TX logic level is 3.3V

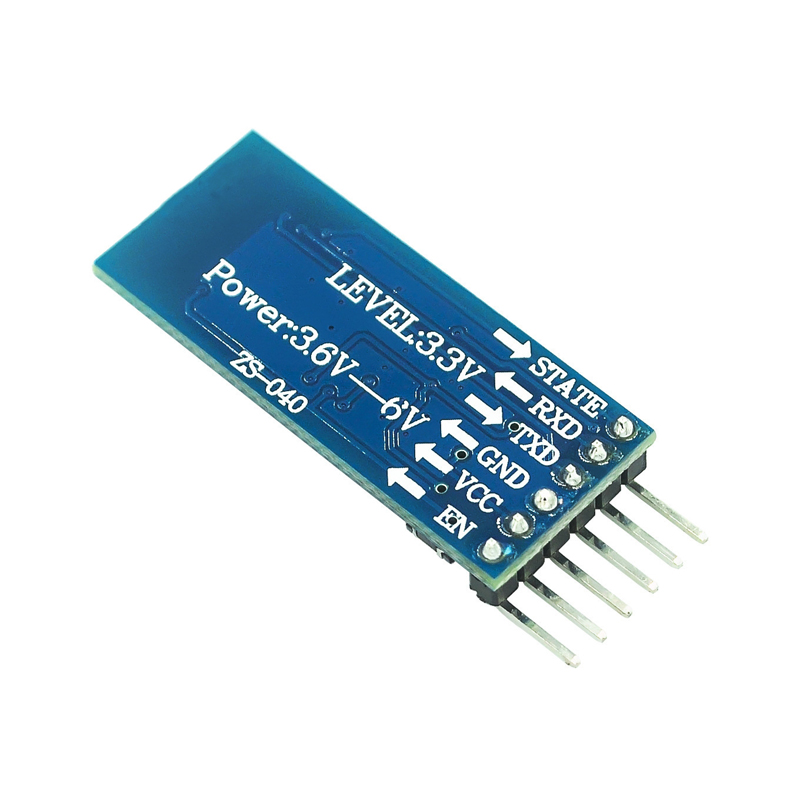

●RX, the serial port receiving end of the Bluetooth module is connected to the TXD of the MCU.
●TX, Bluetooth module serial port sending end connected to the RXD of MCU.
●GND, negative pole of ground power supply
●3.3V, power supply 3.3V power supply
●5V, power supply terminal 5V power supply
