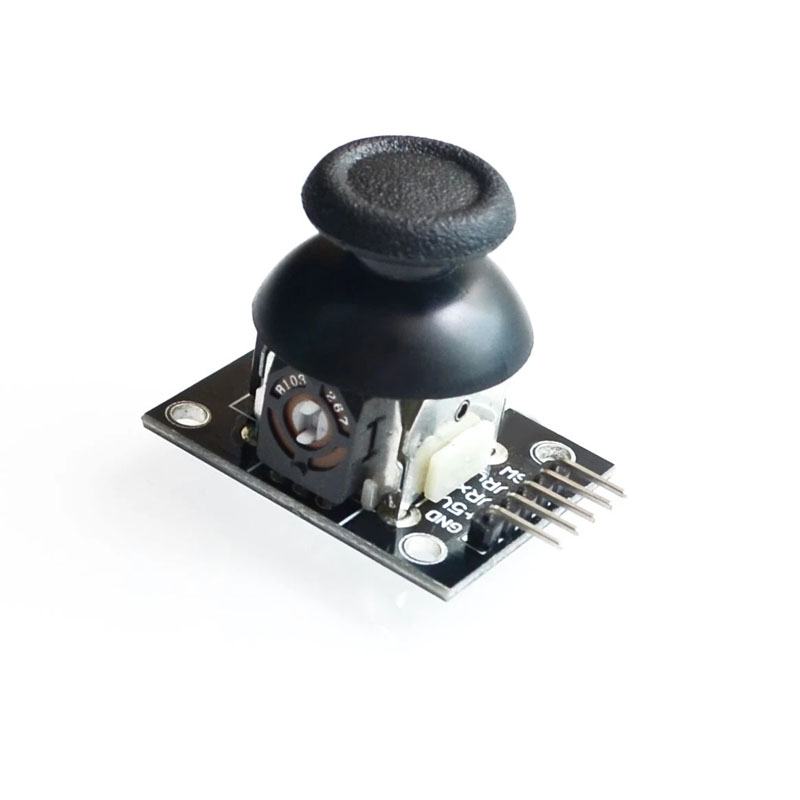

PS2 Game Joystick Sensor Dual-Axis Button Rocker Electronic Building Blocks Can Make Remote ControlItem NO.: PS2 game joystick sensor

Dual-Axis Button Joystick PS2

Product Parameters:

● Product name: Rocker module (double axis key rocker)

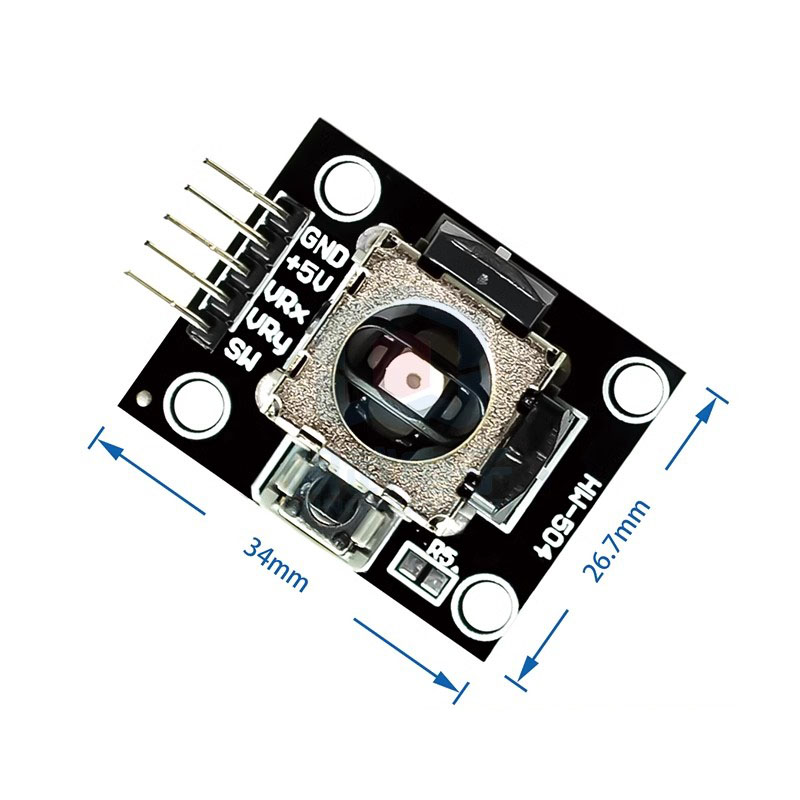

● Product size: 34.0mm * 26.0mm * 32.0mm (L x W x H)

● Color: black

● Product weight: 11.0g (including packaging)

● Packaging: single module electrostatic bag packaging

● Material: FR4+electronic element

Product Introduction:

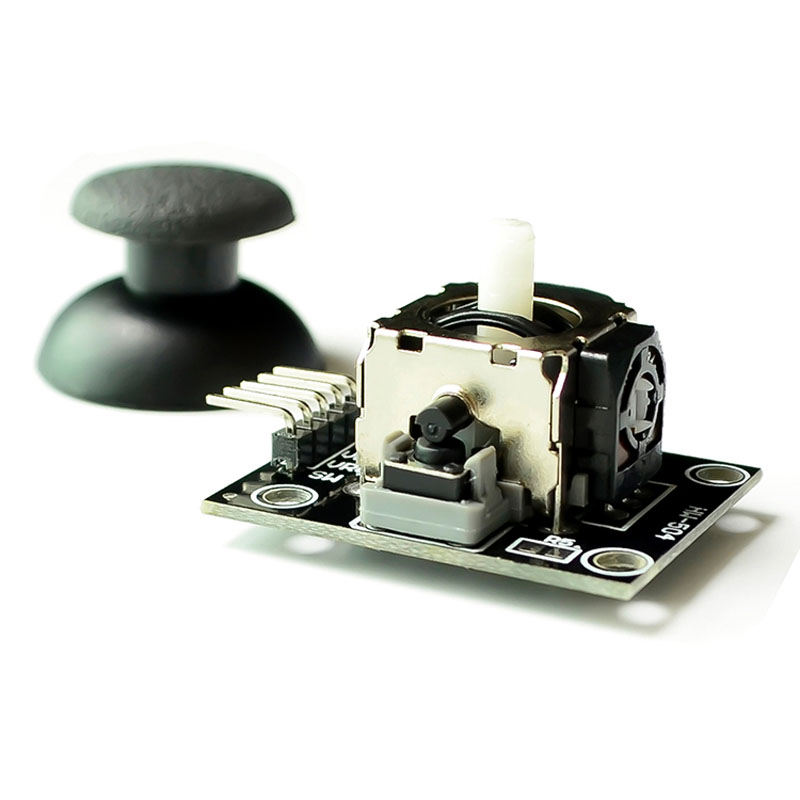

The dual axis key rocker sensor module is made of PS2 rocker potentiometer, with (X, Y) 2-axis analog output and (Z) 1-channel button digital output. coordination. The sensor expansion board can produce interactive works such as remote control. In addition, this product is designed to facilitate customer cooperation For standard interfaces such as the expansion board, the X, Y, and Z axis circuits are designed to be led out by a single DU. Users can use a 3-pin dedicated line to connect to the expansion board for use.

Product Performance:

1. Input voltage range: 3.3V to 5V DC

2. Output signal: the module is equipped with two analog outputs and one digital output interface. The output values correspond to (X, Y) biaxial offsets respectively, and the type is analog; The key indicates whether the user presses on the Z axis, and its type is digital switching value.

3. Creative remote control interaction works can be completed through controller programming and sensor expansion board plugging.

4. The cross rocker is a bidirectional 10K resistor. The resistance of the tap varies with the direction of the rocker. This module uses 5V power supply. The X and Y readout voltages are about 2.5V at the beginning of the YUAN state. When the voltage is pressed in the direction of the arrow, the readout voltage increases to 5V; Press the arrow in the opposite direction, and the reading voltage decreases, and the Z value is 0V.
