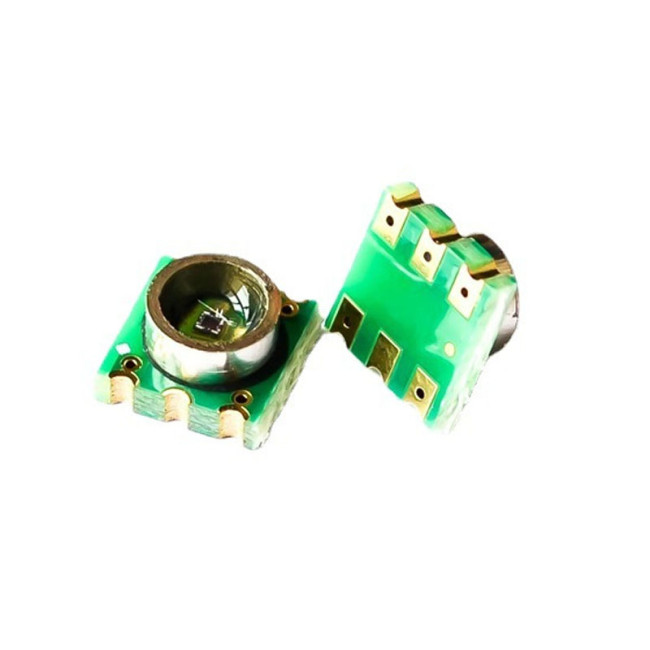

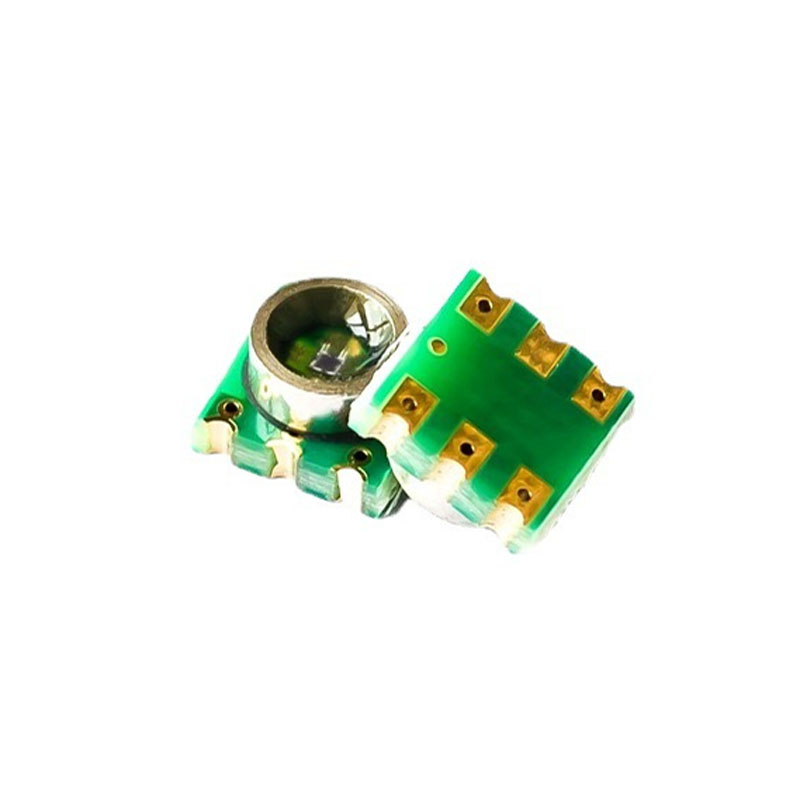

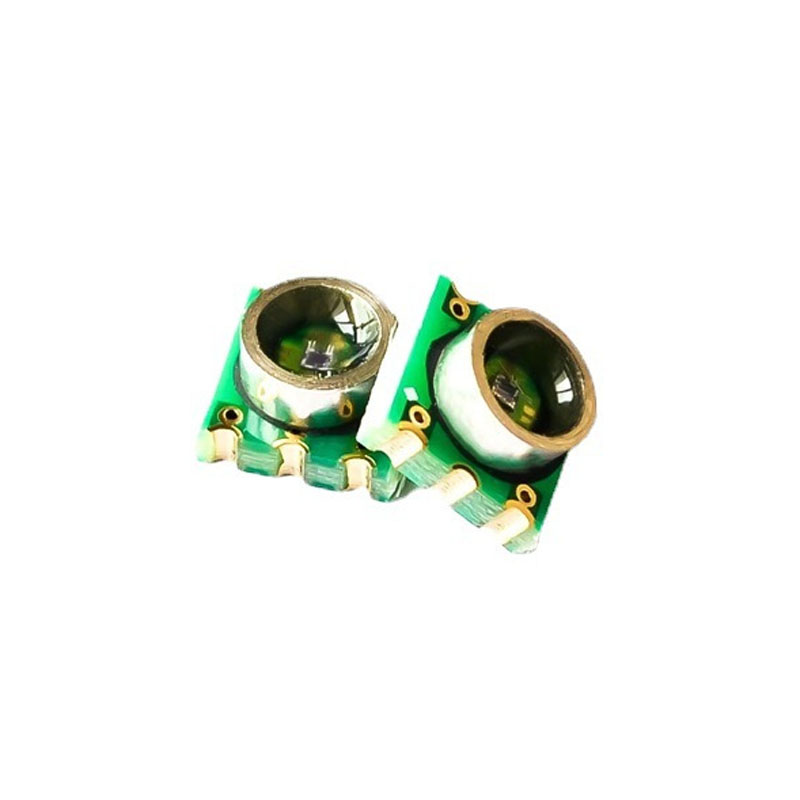

  • Pressure Sensor MD-PS002-150KPaA



    Product Information:



    ● The product does not support reflow soldering and requires manual soldering

    ● Economical and compact in size;

    ● Chip surface coating protection to prevent the impact of moisture, dust, etc. on the chip;

    ● The pressure interface is made of stainless steel with strong pressure resistance;

    ● Clearly defined pins for easy connection;

    ● Multiple ranges are available for selection.



    Product Parameters:



    ● Range: 150 kpa (absolute pressure) Pressure range from vacuum (0 pressure) to 50 kpa above atmospheric pressure

    ● Remarks: All 15psi are in this range. It can be used to measure vacuum (- 100 kpa), positive pressure, and composite range (positive and negative pressure detection).

    ● Output: mV signal

    ● Power supply: 5VDC or constant current 1Ma

    ● Linear accuracy: 0.25% FS



    Application Field:



    ● Automobile: tire pressure gauge, on-board air pump, MAP sensor, diagnostic instrument, steam engine and suspension mechanism control, automobile sensor.

    ● Industry: Pressure switches and controllers, air brake switches, cable leakage detection, portable pressure gauges.

    ● Medical: Patient monitoring and diagnostic equipment, blood pressure meters.

    ● Scientific research: Aerodynamic micro absolute pressure sensor.
