YF-S201 Water Flow Sensor/4 Points G1/2 Interface Water Heater Water Dispenser Water Dispenser Hall FlowmeterItem NO.: YF-S201

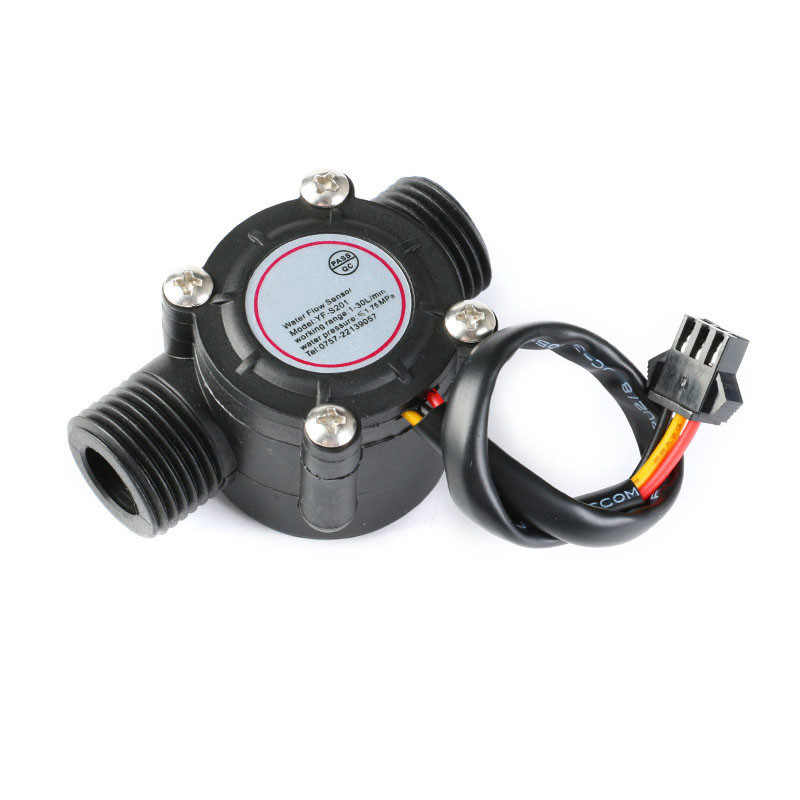

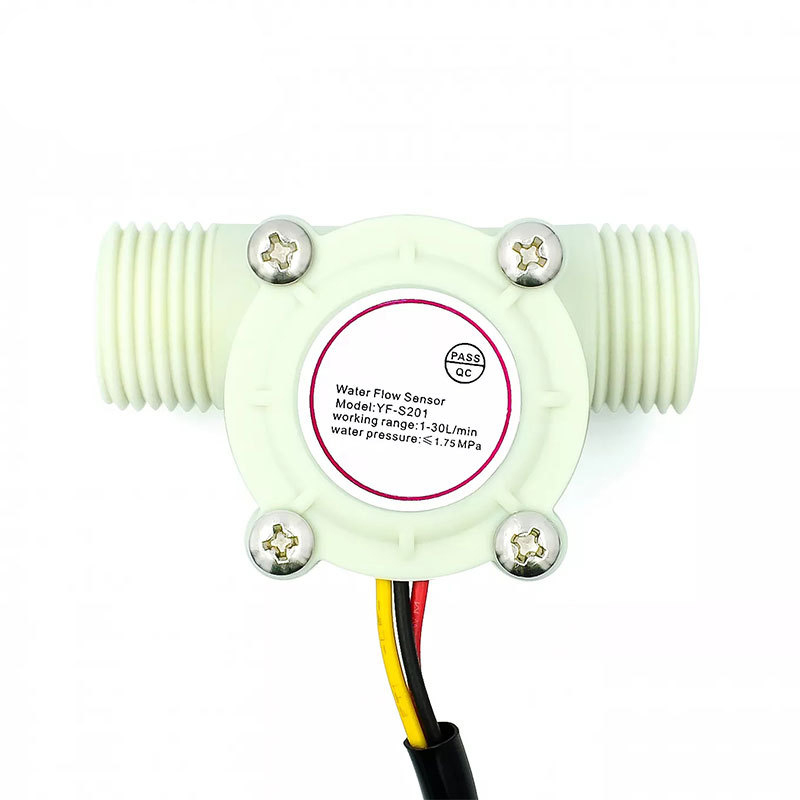

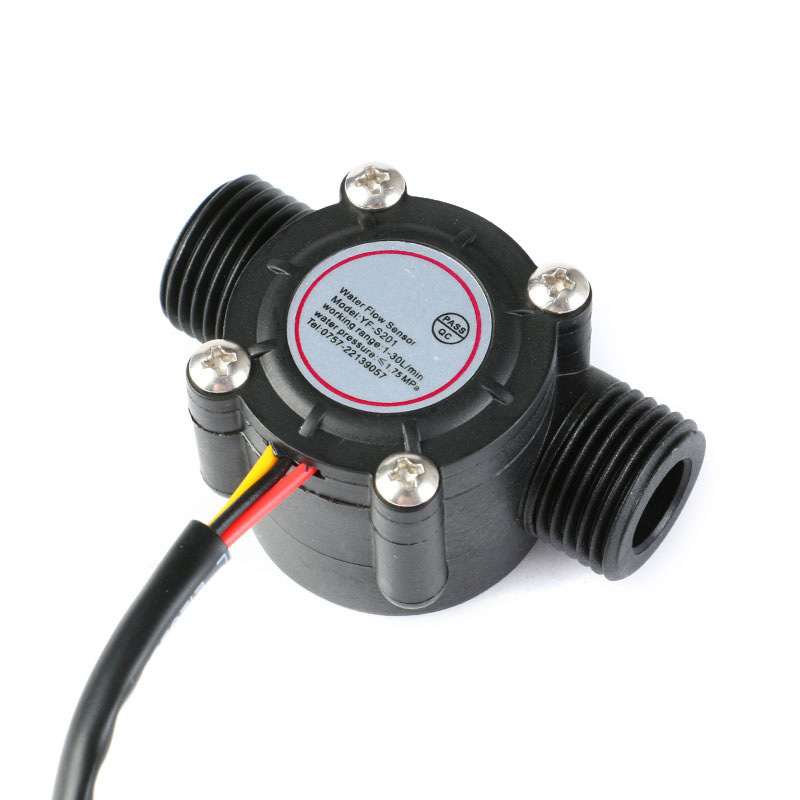

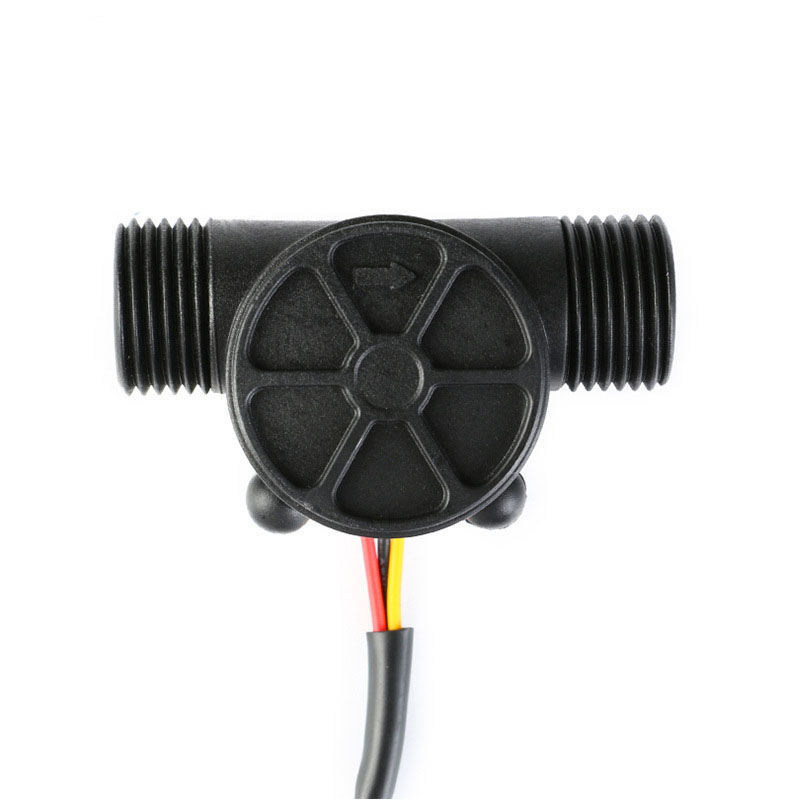

YF-S201 Water Flow Sensor

Product Description:

The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor. It is installed at the water inlet end of the water heater to detect the water inlet flow. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller, which judges the water flow and regulates it.

Product Parameters:

● Minimum rated working voltage: DC4.5

● MAX working current: 15 mA (DC 5V)

● Operating voltage range: DC 3.5~24V

● Load capacity: ≤ 10mA (DC 5V)

● Operating temperature range: ≤ 80 ℃

● Operating humidity range: 35%~90% RH (no frost)

● Allowable pressure resistance: water pressure below 1.75Mpa

● Storage temperature: - 25~+80 ℃

● Storage humidity: 25%~95% RH

● Frequency: F=7.5 * Q (L/Min)

● Voltage: 3.5~24V DC, current cannot exceed 10mA, and 450 pulses are output after one liter of water flows

● Flow range: 1~30L/min

Product Features:

1. This product is light and convenient in appearance, small in size and easy to install

2. The impeller is inlaid with stainless steel for permanent wear resistance

3. The sealing ring adopts the structure of upper and lower stress, and never leaks

4. Hall element is imported, the line is equipped with waterproof sealing rubber ring, and the waterproof silica gel at the inlet enhances the waterproof

5. All raw materials comply with ROHS testing standards

Scope Of Application:

Applicable to water heater, card reader, automatic water vending machine and other flow metering equipment

Pin Description:

● Red (IN): power supply positive

● Yellow (OUT): signal output line

● Black (GND): ground

Matters Needing Attention:

1. It is strictly prohibited to throw or collide. The medium temperature should not exceed 120 ℃. The installation should be in the direction of the installation arrow on the product. It is strictly prohibited to have severe impact and chemical erosion.

2. If the water quality is poor, please add a filter screen at the inlet end

3. Do not exceed the flow range to use
