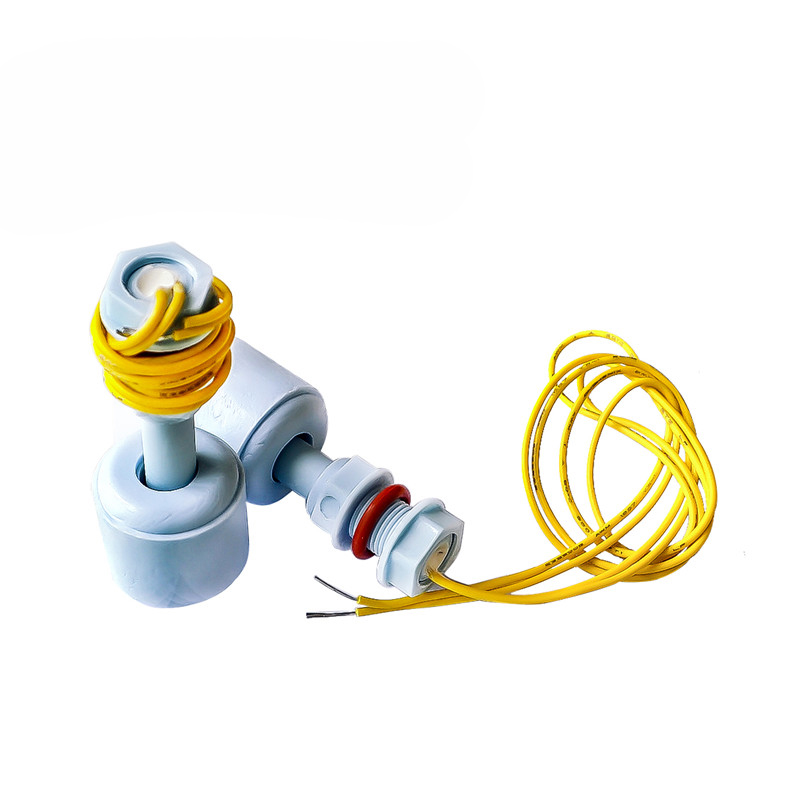

PP Plastic Small Floating Ball Water Level Switch Liquid Level Sensor Anti-corrosion Acid and Alkali Resistant 52MM

PP Plastic Small Floating Ball Water Level Switch Liquid Level Sensor Anti-corrosion Acid and Alkali Resistant 52MMItem NO.: PP52MM

US$ 3.94
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
PP Plastic Small Floating Ball Water Level Switch Liquid Level Sensor Anti-corrosion Acid and Alkali Resistant 52MM
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • PP Plastic Small Floating Ball Water Level Switch



    Product Introduction:



    Line length 40CM



    What is the pitch between this screw and the thread? The M10 * 1 PP float switch L=52mm is normally closed by default and can be adjusted to be normally open? Yes, pull out the clip and flip the float down



    Float level switch is a simple and convenient liquid level control device that does not require power supply or complex circuits. It has advantages such as smaller volume and longer working life compared to general mechanical switches. As long as the material selection is correct in the design, and any liquid or pressure, temperature can be used, it is widely used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, and other fields.



    Working principle: The liquid level sensor is mainly composed of a magnetic spring switch and a floating ball. The floating ball contains magnetic materials, and one or more magnetic spring switches are installed in a closed non magnetic metal or plastic tube. Then, the conduit is passed through one or more floating balls with magnetic materials, and a fixed double ring is used to control the floating ball and the magnetic spring switch in the relevant position. As the liquid rises or falls, the floating ball uses the contact near the beginning of the magnetic spring inside the ball, Generate opening and closing actions for liquid level control or indication (when the float is close to the magnetic spring switch, it is conductive; when it leaves, the switch is disconnected).
