- Product Name: RS485 To TTL Module RS485 Module SP3485 Communication Module RS485 Breakout
- Item NO.: RS485 Breakout
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: RS485 Module , RS485 To TTL Module , SP3485 Communication Module , RS485 Breakout
- Creation Time: 2024-05-07
RS485 Breakout RS485 To TTL Module
Product Description:
RS-485 Breakout
BOB-10124
Description: This is a breakout board for the SP3485 RS-485 transceiver IC, which will convert a UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. This board requires a very low amount of power and can operate from a single +3.3VDC supply.

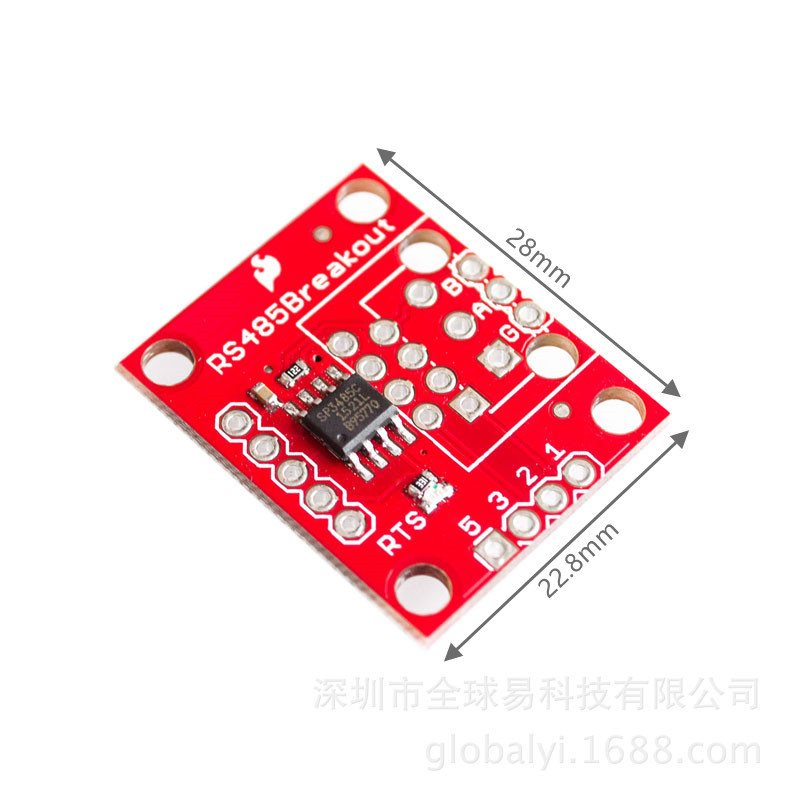

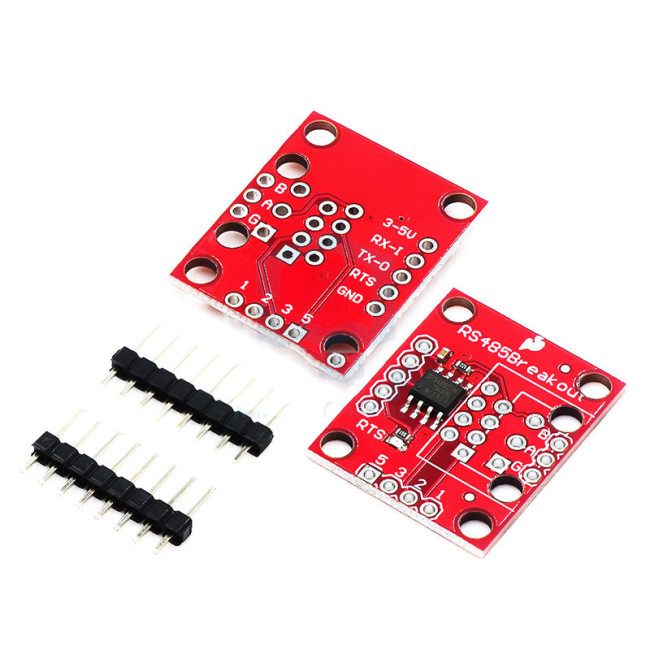

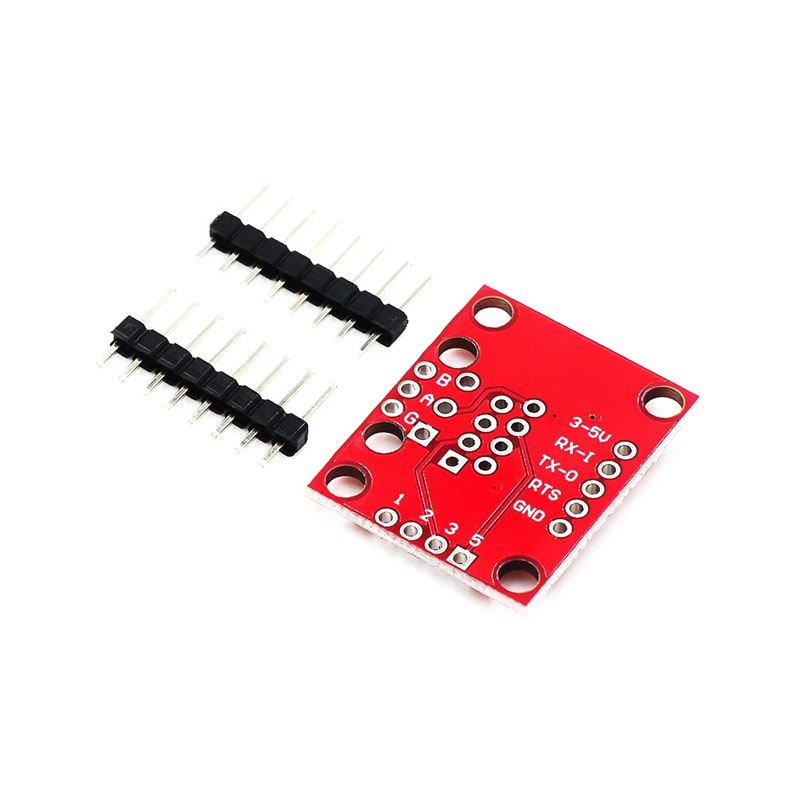

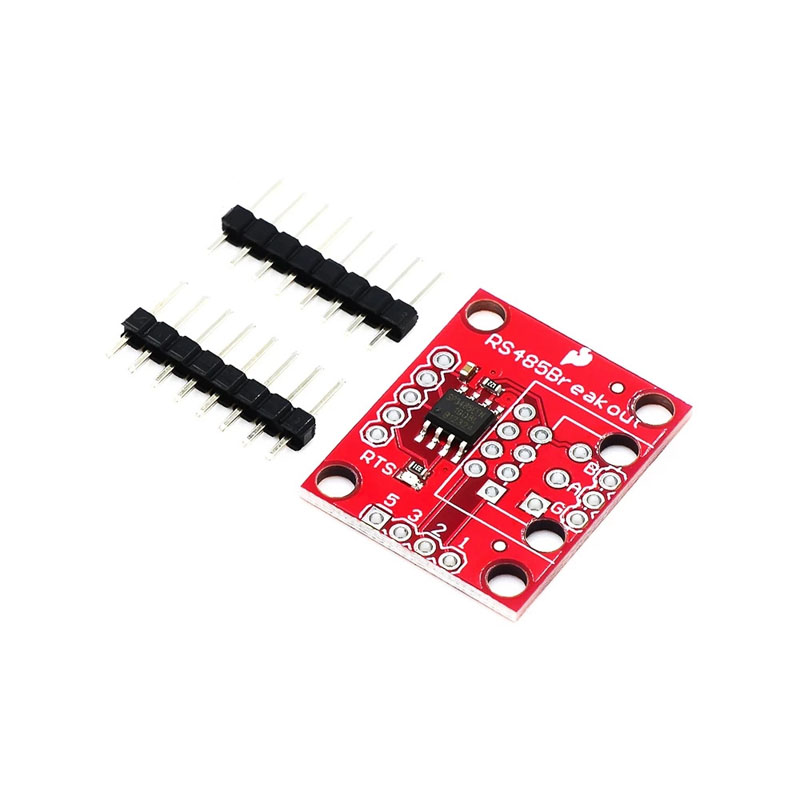

This breakout board includes the SP3485 RS-485 transceiver, filter capacitor, and other components shown on the schematic. We've broken out the RS-485 output to three different connections: (1) an RJ-45 connector, (2) a 3-pin 3.55mm screw terminal, and (3) a 3-pin 0.1" pitch header; none of these output connectors come populated.
Features:
●Fully equipped with SP3485 RS-485 transceiver and supporting components
●Operates from a single +3.3V supply
●Interoperable with +5.0V logic
●RS-485 input/output broken out to RJ-45 connector, 3.5mm screw terminal, and 0.1" pitch header
●Driver/Receiver Enable connected to RTS line
●-7V to +12V Common-Mode Input Voltage Range
●Allows up to 32 transceivers on the serial bus
●Driver Output Short-Circuit Protection
