Raspberry Pi CSI Interface Camera with 500W Pixels 15cm Flexible Cable Support for 3rd Generation b/2nd GenerationItem NO.: CSI500
-
Customized Requirements
- Quantity
-
-
- Product Name: Raspberry Pi CSI Interface Camera with 500W Pixels 15cm Flexible Cable Support for 3rd Generation b/2nd Generation
- Item NO.: CSI500
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Raspberry Pi CSI Interface Camera , 5 Million Pixels
- Creation Time: 2024-04-16

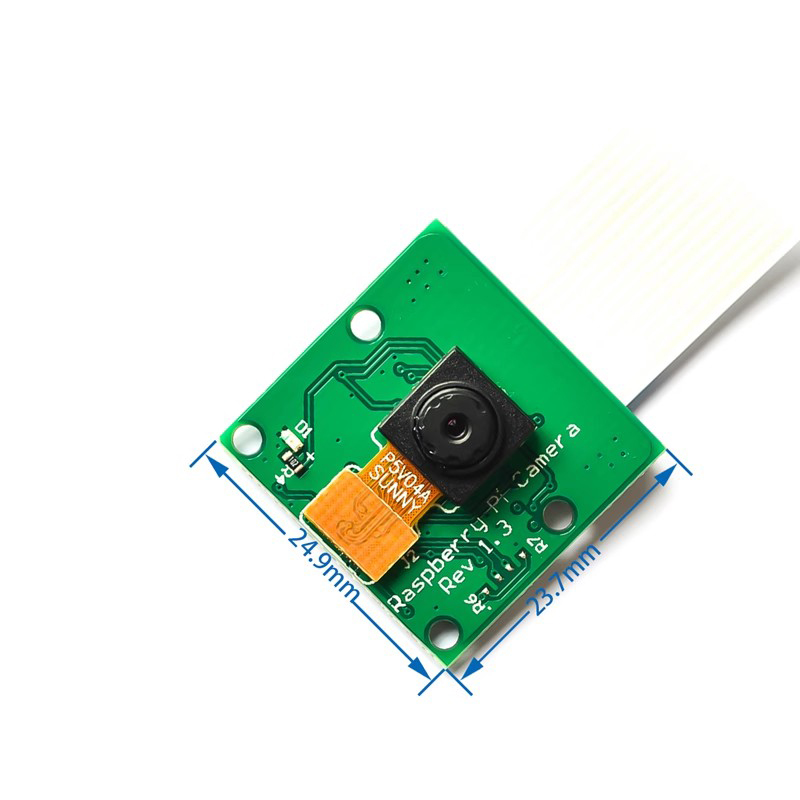

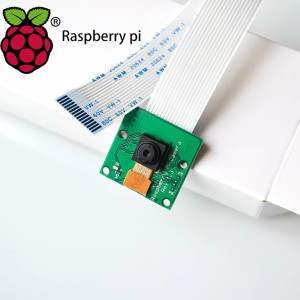

Raspberry Pi CSI Interface Camera
Parameters:
Lens: 1/4 5M
Aperture: 2.9
Focal length: 3.29
Field of view angle: 72.4 degrees
Hardware connection:
1. Flexible cable, 90 degree vertical connector, the one next to the HDMI port. When connecting, the contact side faces towards the HDMI interface.
2. Remove the protective film from the lens before use
3. Bare board, pay attention to ESD damage and be cautious of static electricity!
Software usage:
1. The RPi firmware and raspi configuration have been updated for the camera, please perform an apt get update; Apt get upgrade;
2. Select camera in raspi configuration, start the camera driver in RPi firmware, and then restart
3. Use command line programs raspivid and raspistill to operate the camera and capture video clips or images
4. The captured video clips need to be played using mplayer
