365/385 DC Water Pump Motor 12V Micro Self Suction Tea Stove Tea Set Water Dispenser Micro Water PumpItem NO.: 36538512V
-
Customized Requirements
- Quantity
-
-
- Product Name: 365/385 DC Water Pump Motor 12V Micro Self Suction Tea Stove Tea Set Water Dispenser Micro Water Pump
- Item NO.: 36538512V
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: 385 , 365 , DC Water Pump Motor , Micro Water Pump
- Creation Time: 2024-04-15
365/385 DC Water Pump Motor 12V

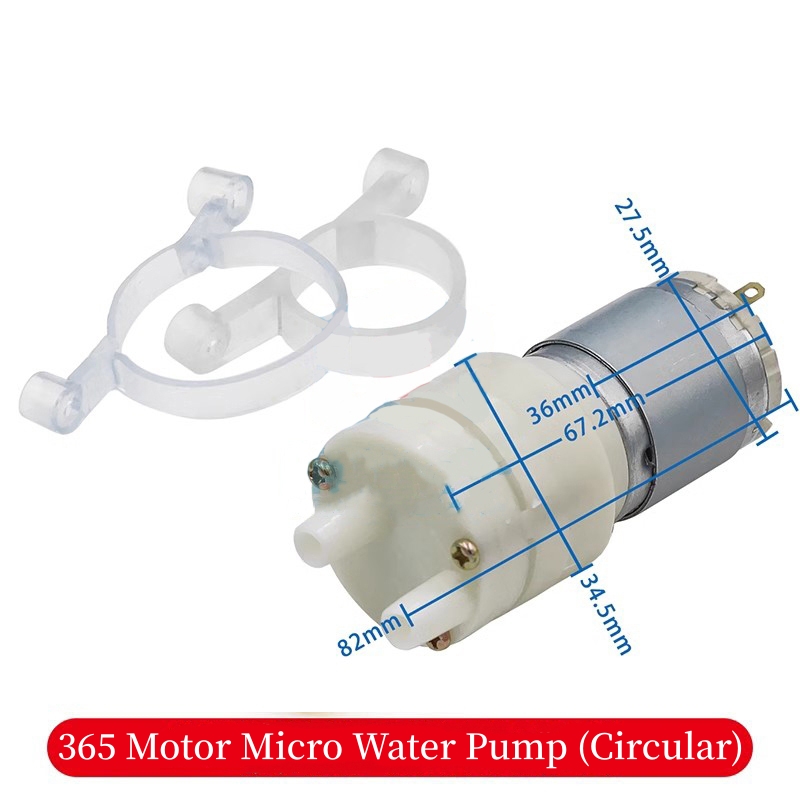

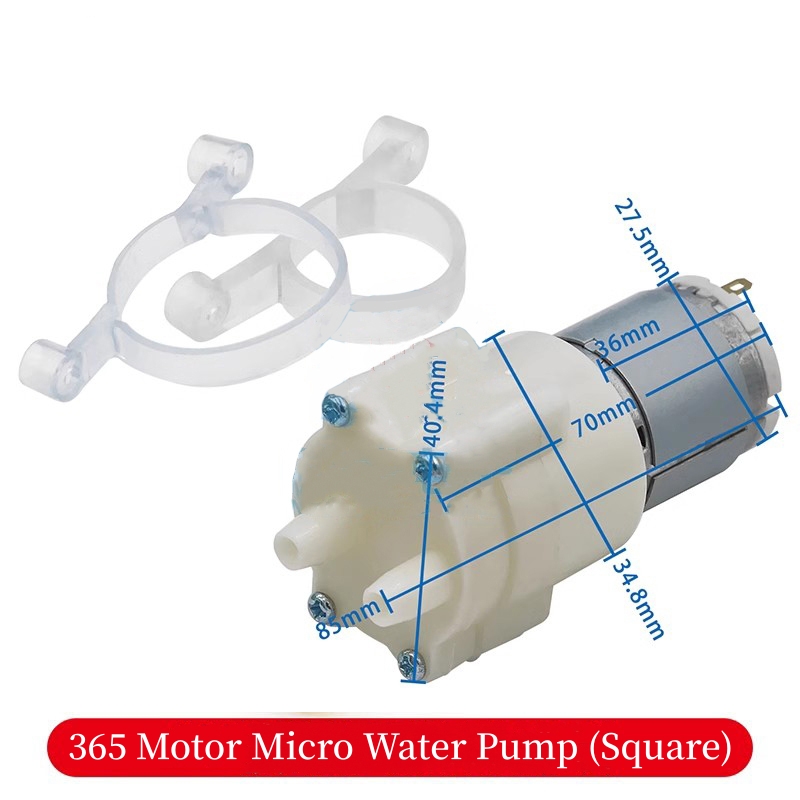

Main parameters of 365 DC micro diaphragm pump:
Working voltage: DC 12V
No-load current: 0.23
Load: 450 haA
High flow rate: 2-3 liters/minute
High pressure at the water outlet: 1-2.5 kilograms
Lift: 1-2.5 meters
Normal working hours: 2-3 years.
Large suction lift: 2 meters
Inlet and outlet diameter: outer diameter 8mm
Motor length: 32MM
Motor diameter: 28MM
Pump length: 36MM
Total length: 69MM
Pump diameter: 40MM * 35MM
Weight: 111 grams

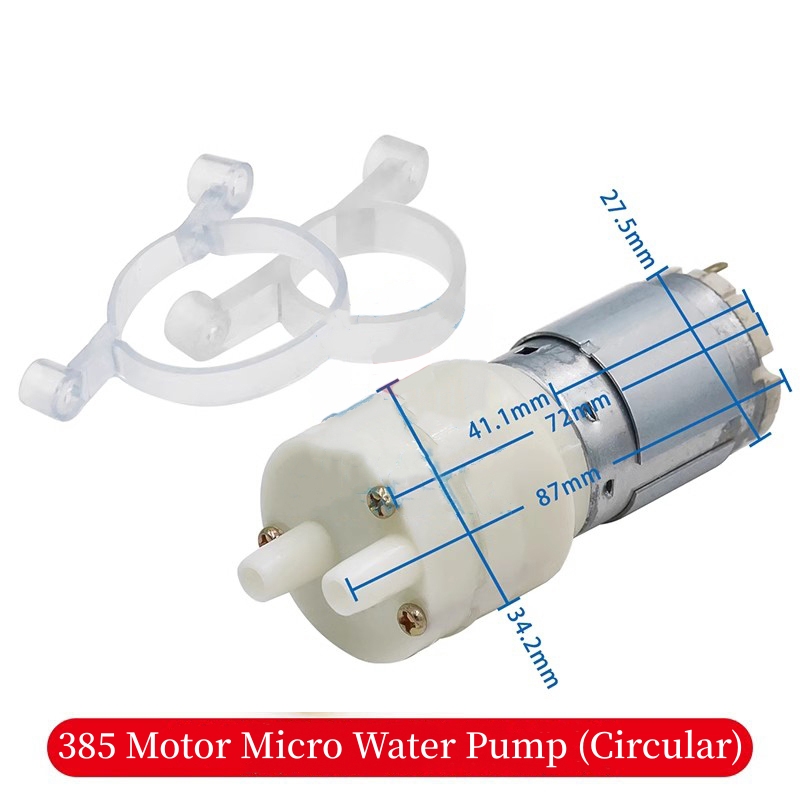

Main parameters of motor 385 #:
Rear cover: flame-retardant material
Rated operating voltage: 12V
Load: ≤ 450 MA
Rated (load) speed: 3000 ± 10%
Power: 4W-7W
Pressure: 4 (Bar)
Inlet pressure: 0.3 (Opr)
Vacuum: ss0.2Bar
Continuous working life: ≥ 200, H (hours)
Fluid: 0-100 ° C
Environmental temperature: 0 ° C -40 ° C
Applicable water temperature: 5 ° C-45 ° C
Working mode: continuous work
Inlet and outlet: ID 7 6MM
Hose interface: ID 5 OMM
Product size: 88 * 34.7 * 51 MM total length * plastic width * motor length
