Solar Energy Anti Backflow and Anti Backflow Ideal Diode Constant Current Power Supply Module Battery Charging Anti Backflow Module

Solar Energy Anti Backflow and Anti Backflow Ideal Diode Constant Current Power Supply Module Battery Charging Anti Backflow ModuleItem NO.: ideal module

US$ 6.09
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Solar Energy Anti Backflow and Anti Backflow Ideal Diode Constant Current Power Supply Module Battery Charging Anti Backflow Module
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

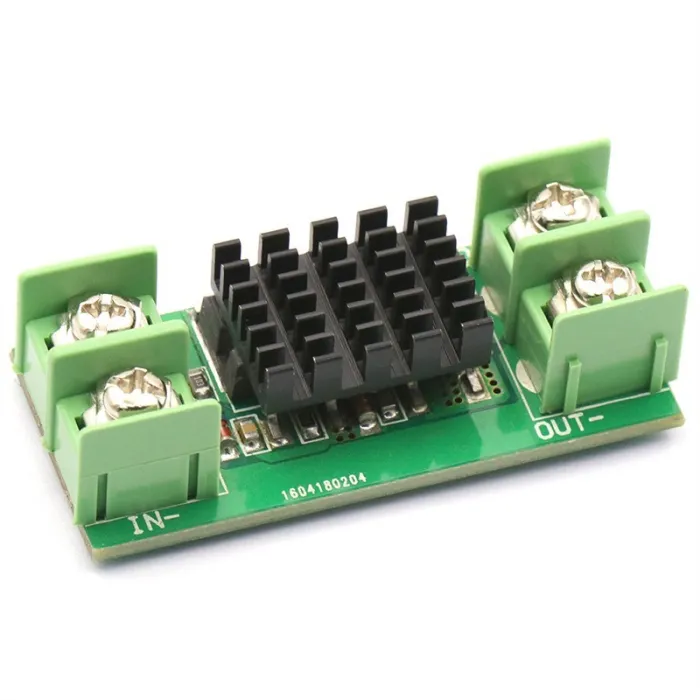

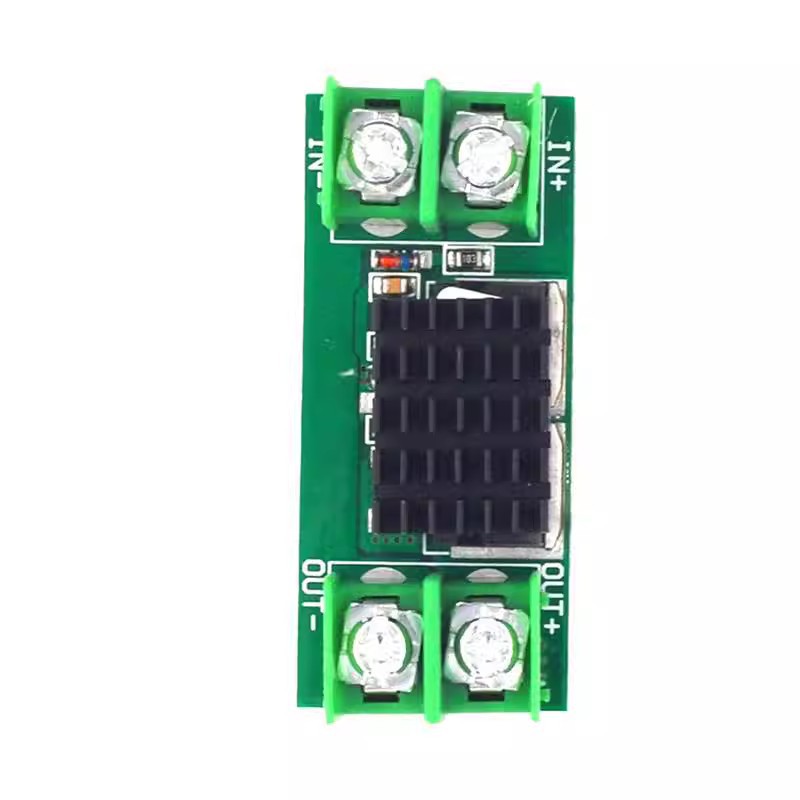

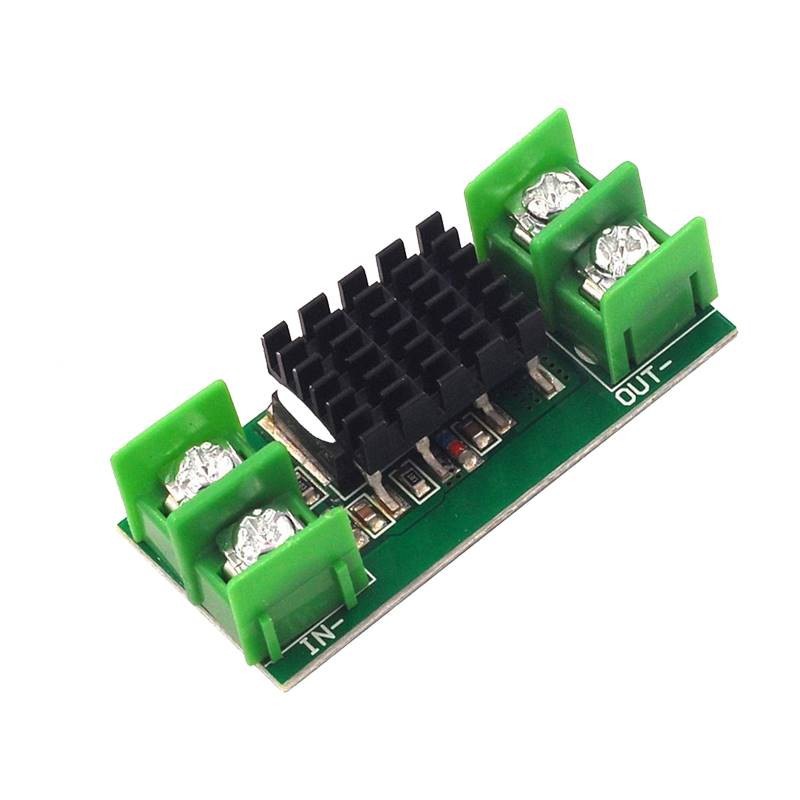

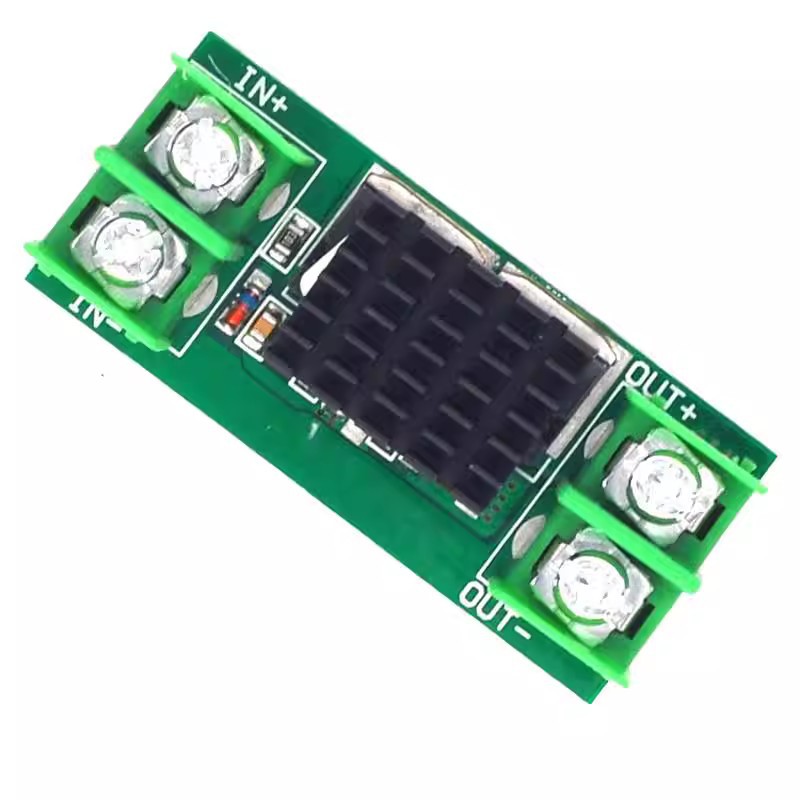

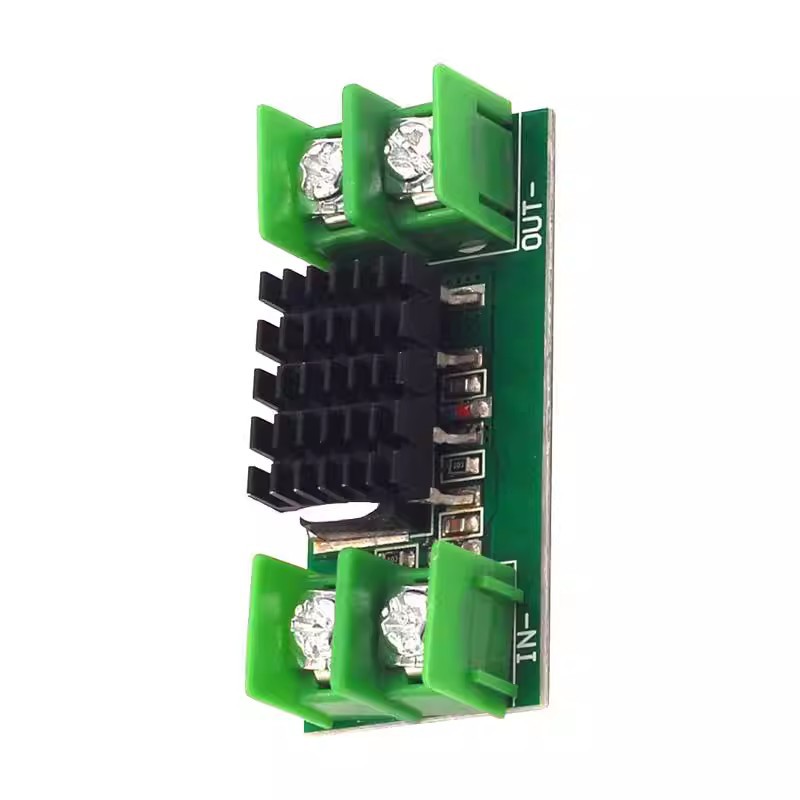

  • 15A Ideal Anti Backflow Diode



    Product Description:



    Ideal anti backflow diode, with two parallel 8-milliohm internal resistors, ultra-low voltage drop, replacing ordinary diodes, used for solar panel anti backflow and battery charging anti backflow. Effectively reduce heat generation and improve efficiency.



    Module parameters:



    Block name module: 15A ideal anti backflow diode

    Working voltage: DC5-60V

    Working current: 15A (MAX) peak value 18A (within 10A of long-term operation without heat sink, it can be used in parallel to increase working current)

    Static working current: 0.2mA (there may be errors when the working voltage is different at 12V)

    Working temperature: -40~+85 degrees Celsius



    Application scope:



    1. Solar panel anti backflow.

    2. Various types of batteries are charged to prevent backflow.

    3. The DC-DC constant voltage and constant current module outputs anti backflow.

    4. More applications can be freely utilized.
