CCM6DS PWM DC Motor Governor High Power Controller 12V24V36V48V80V 30A

CCM6DS PWM DC Motor Governor High Power Controller 12V24V36V48V80V 30AItem NO.: CCM6DS

US$ 13.39
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
CCM6DS PWM DC Motor Governor High Power Controller 12V24V36V48V80V 30A
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • CCM6DS PWM DC Motor Speed Controller 30A



    Technical Parameters:



    ● Model: CCM6DS

    ● Potentiometer: resistance B100K, opening 8mm

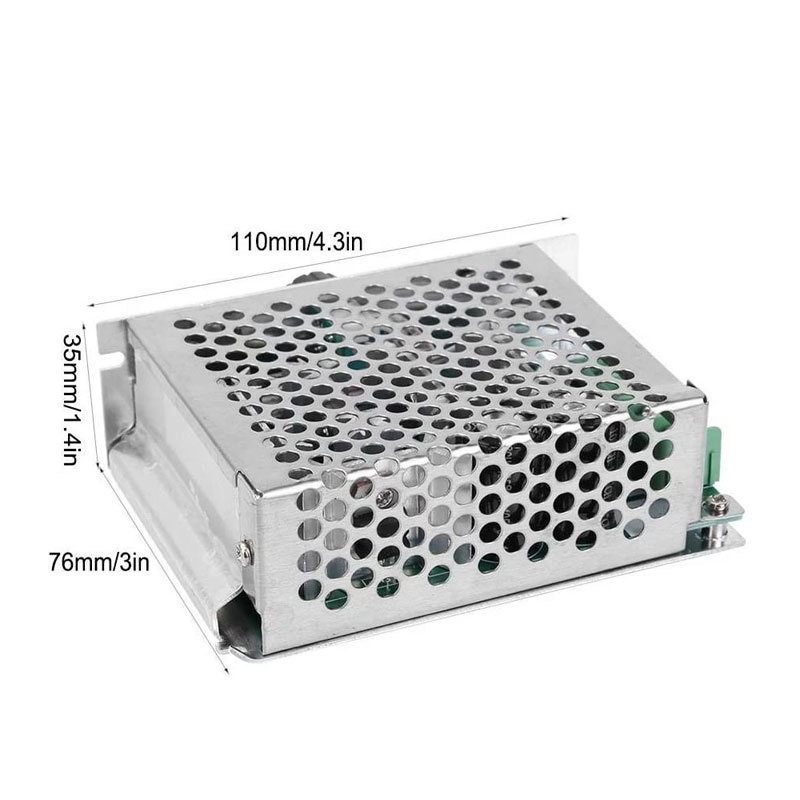

    ● Size: 110mm x 76mm in length and width, with a height of approximately 35mm

    ● Net weight: 203g



    1. Applicable voltage: 12V-50VDC (wide range)

    2. Applicable current: 30A

    3. Power range: It is up to 1500W, recommended for use within 12V250W, 24V350W, and 48V500W.

    4. Speed regulation range: 0% -100%

    5. Product frequency: 21KHZ



    ● Note that this is not a power module, only when the motor is connected can the speed be adjusted. If the motor is not connected, the output of the multimeter remains unchanged.

    ● The motor can be connected without distinguishing between positive and negative. When the running direction is not consistent with the expected direction, the direction can be changed by adjusting the wire sequence.

    ● Please note:

    1. This governor is used for DC brushless motors.

    2. Not suitable for speed regulation of DC brushless motors; It cannot be used as a Pressure regulator or voltage stabilizer!

    3. 48V batteries and batteries cannot be used for power supply (the full charge voltage of the 48V accumulator exceeds 50V.)
