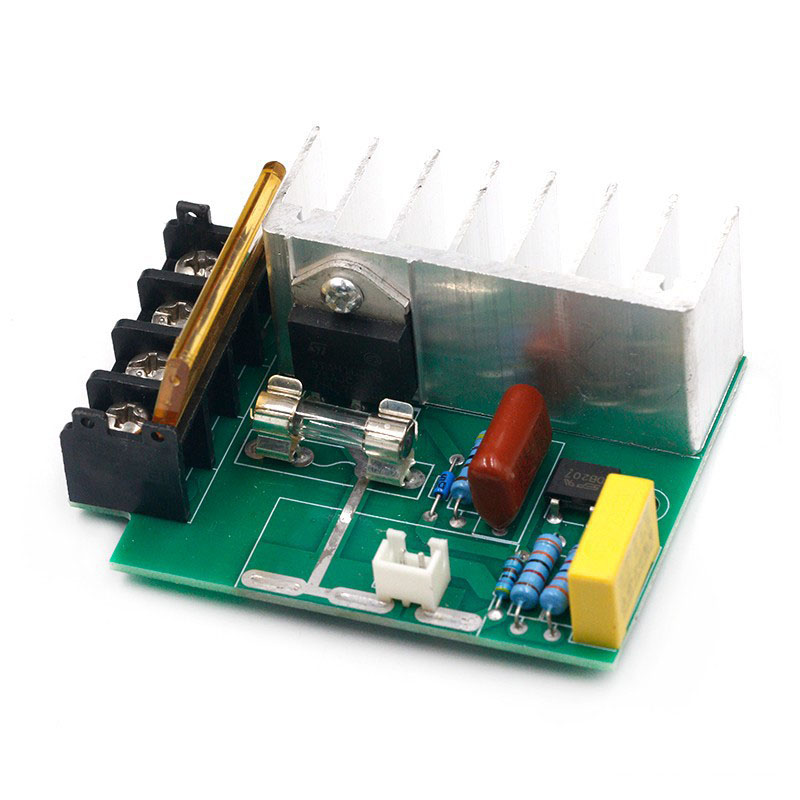

  • 4000W Electronic Voltage Regulator External Potentiometer



    Specification parameters:



    Product name: 4000W AC voltage regulator

    Thyristor model: BTA41600B

    Size: length 85 * width 55 * height 38mm, knob inner hole 6mm

    Maximum power: 4000W (resistive load limit power), power should be reduced for long-term use. Long term resistive loads are recommended to be within 2000.

    Efficiency: Over 90%

    Working voltage: AC 220V

    Adjusting voltage: AC 0-220V (adjustable from high to low to 0, starting from around 10V from low to high)

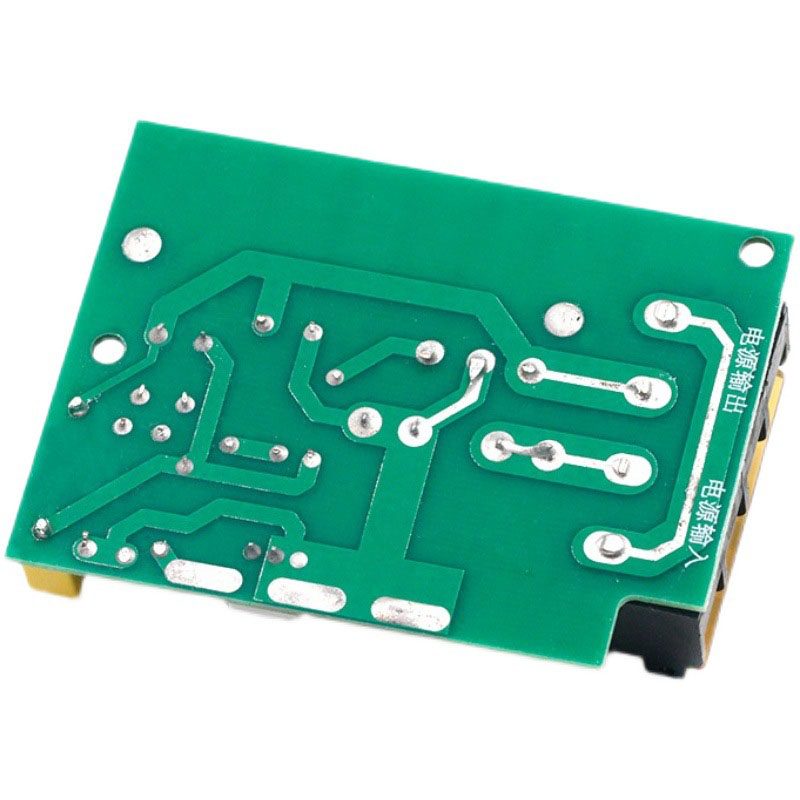

    Terminal 12 is connected to the input 220V, and terminal 34 is connected to the load.

    Note that the load must be connected first before voltage regulation.

    Thyristors are mainly used for resistive loads (such as electric heating filament incandescent lamps), and most single-phase AC motors can also be used, but it is not guaranteed that they can be used. For other types of loads, please confirm by the buyer. Fuses are not omnipotent, they have a response time. If the current is too high, besides burning out the fuse, the module may also be burned out.
