TK2050 Class T Digital Power Amplifier Board High-Power Stereo Fever Level 2X50W Channel HIFI Power AmplifierItem NO.: TK2050
-
Customized Requirements
- Quantity
-
-
- Product Name: TK2050 Class T Digital Power Amplifier Board High-Power Stereo Fever Level 2X50W Channel HIFI Power Amplifier
- Item NO.: TK2050
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Stereo , Digital Power Amplifier Board , TK2050 , Class T , 2X50W
- Creation Time: 2024-05-02

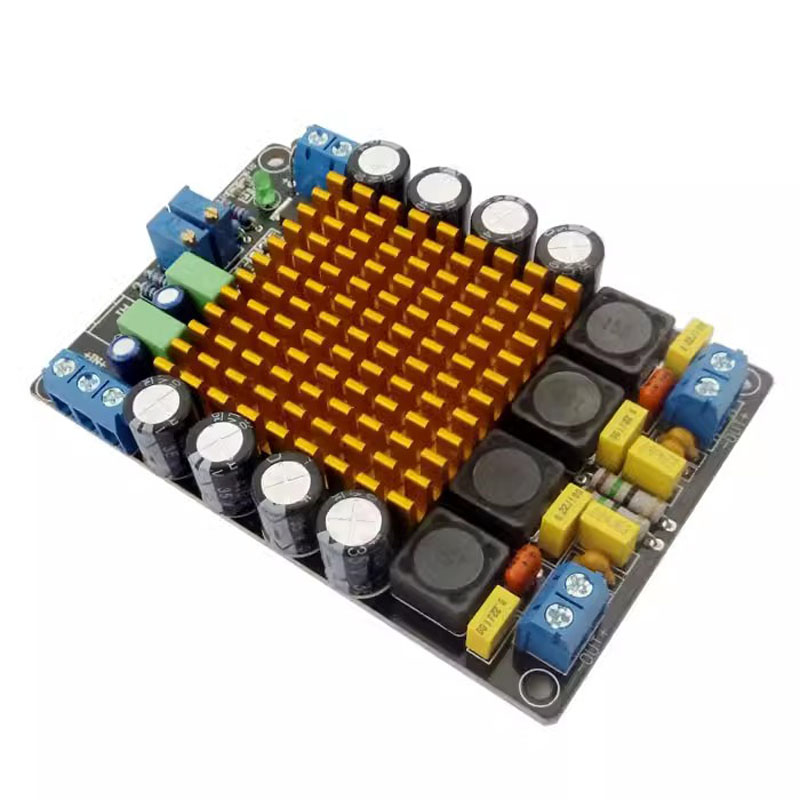

TK2050 Class T Digital Power Amplifier Board
Product Introduction:
This power amplifier board is designed with the combination of the original Class T digital chip TC2001 and STA505. It has the characteristics of good sound quality, low distortion, high efficiency, small size, neat layout, reasonable and beautiful appearance, and the advantage is that it can be powered by a single power supply with a wide voltage, which greatly facilitates the occasions without dual power supply!
The sound quality of this amplifier board is quite good, and it is really worth listening to!
Technical Parameters:
● Working mode: Class T
● Left and right output power: actual power is related to sound source and power supply!
●DC12~18 25W-50W*2
● Audio input: low-level signal input
● Suitable for speakers: any 4-8 ohms
● Working efficiency: 92%
● Switching frequency: 650KHz
● Working voltage: DC12V to DC20V (recommended voltage: DC19V)
● Static current: 50-95mA
● P C B size: 93 * 65 * 20MM
● Net weight of single package: 100g
