XH-M190 TDA3116D2 High-Power Digital Power Amplifier Board TPA3116 Dual-Channel Amplifier Board 12-24VItem NO.: XH-M190
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M190 TDA3116D2 High-Power Digital Power Amplifier Board TPA3116 Dual-Channel Amplifier Board 12-24V
- Item NO.: XH-M190
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Digital Power Amplifier Board , Amplifier Board , TPA3116 , Dual-Channel , XH-M190 , TDA3116D2
- Creation Time: 2024-05-03

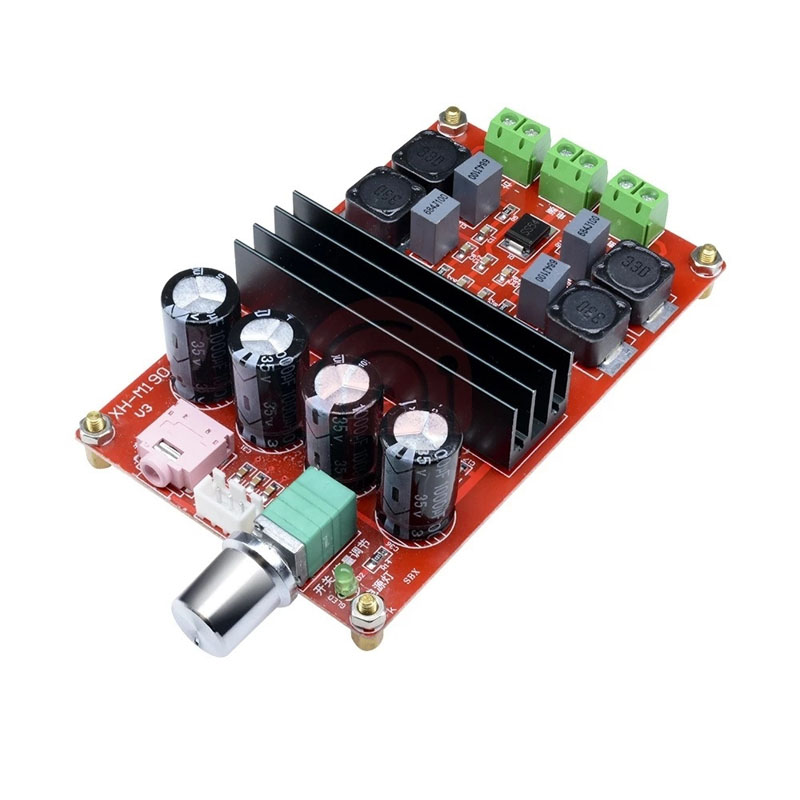

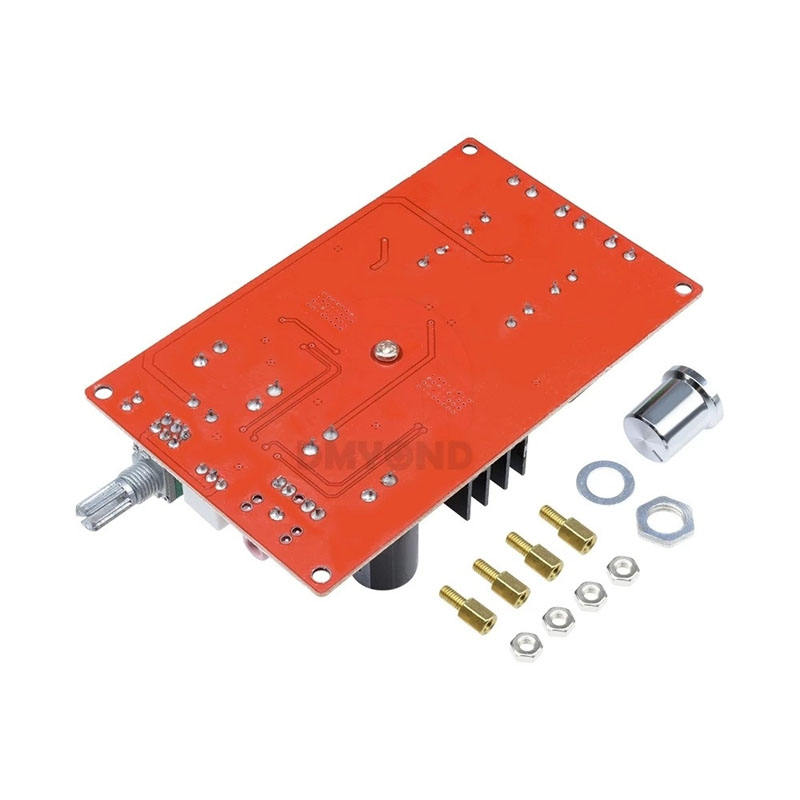

XH-M190 TDA3116D2 Digital Power Amplifier Board
Product Introduction:
This power amplifier board uses TPA3116D2 imported from TI as the core, and the official data sheet chip is 50W * 2. The engineers read the data and combined their own experience to develop 50W * 2 dual-core technology by bridging, which can reach 100W * 2 in theory
Since the chip is a digital chip, its efficiency can reach more than 90%, so it has the advantages of high power and low heat generation. It is recommended to use a DC 12-24V switching power supply above 100W for power supply. This board is available from the finished board to hand. Connect the power supply and speakers to check the new experience brought by pure digital music!
Product Parameters:
● Chip selection: TPA3116
● Input power supply: DC12-24V
● Output power: 2 * 100W
● Input impedance: 51K * 2
● Output matching: 4-8 Ω
● Frequency response range: 14-100Kz
● Performance-to-noise ratio: 100db
● Output channel: 2 (left channel+right channel)
● External dimension: 105 * 65 * 23mm
● Net weight of product: 85g
