TPA3110D2 Bluetooth Digital Amplifier Board Bluetooth Speaker Ceiling Speaker Background Music 2X15WItem NO.: VHM-313

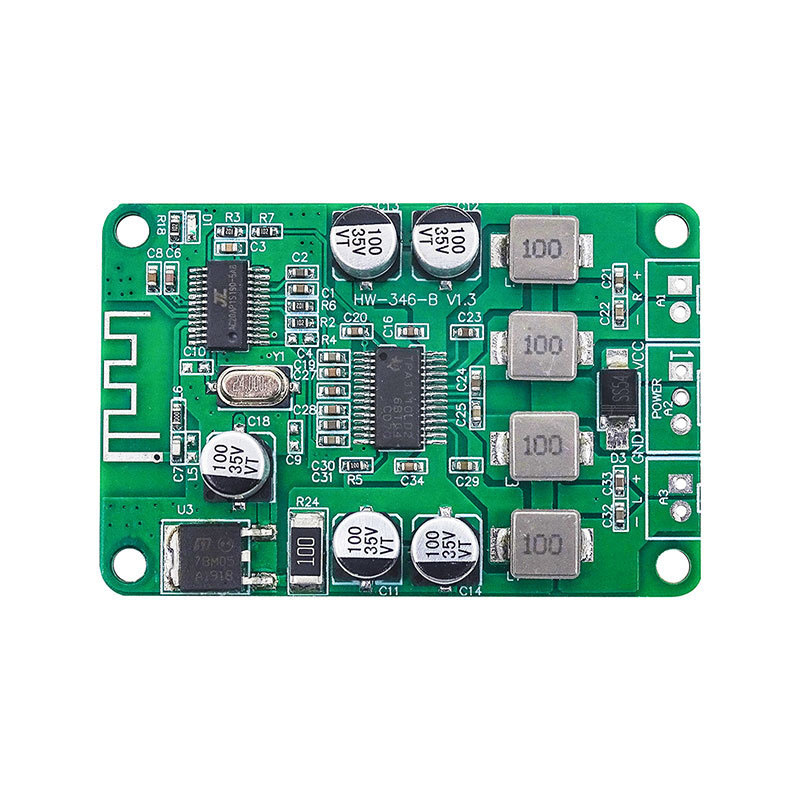

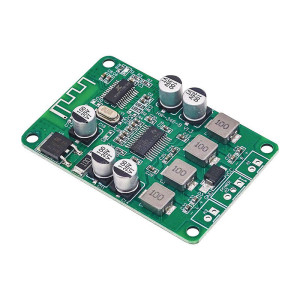

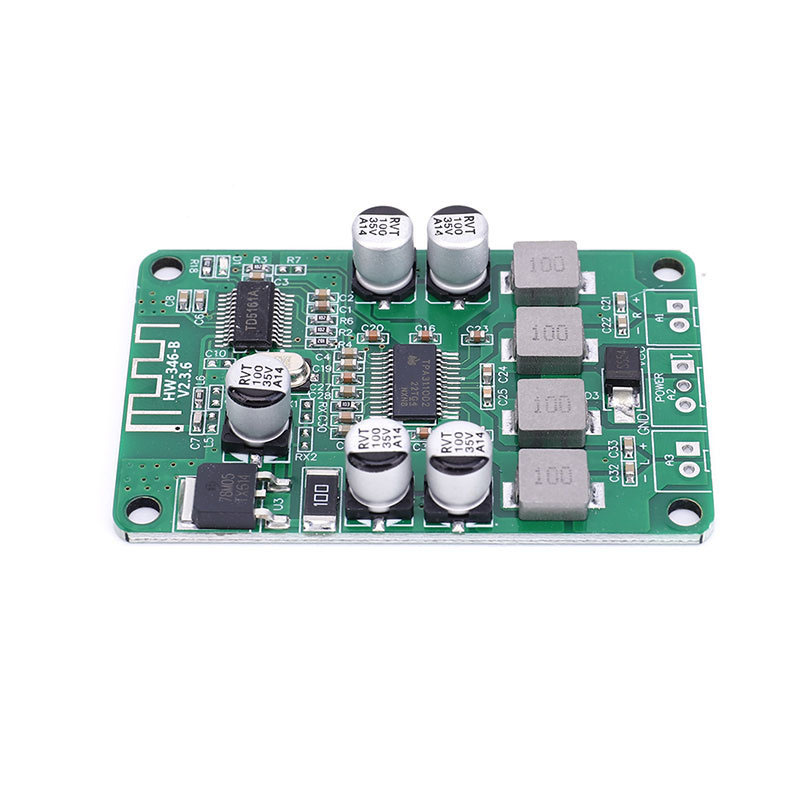

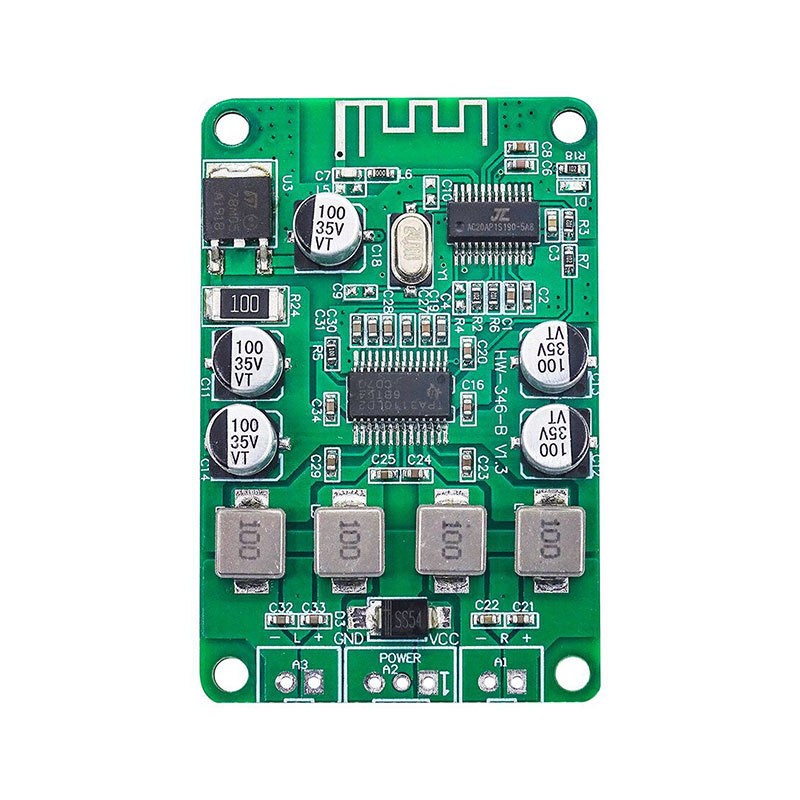

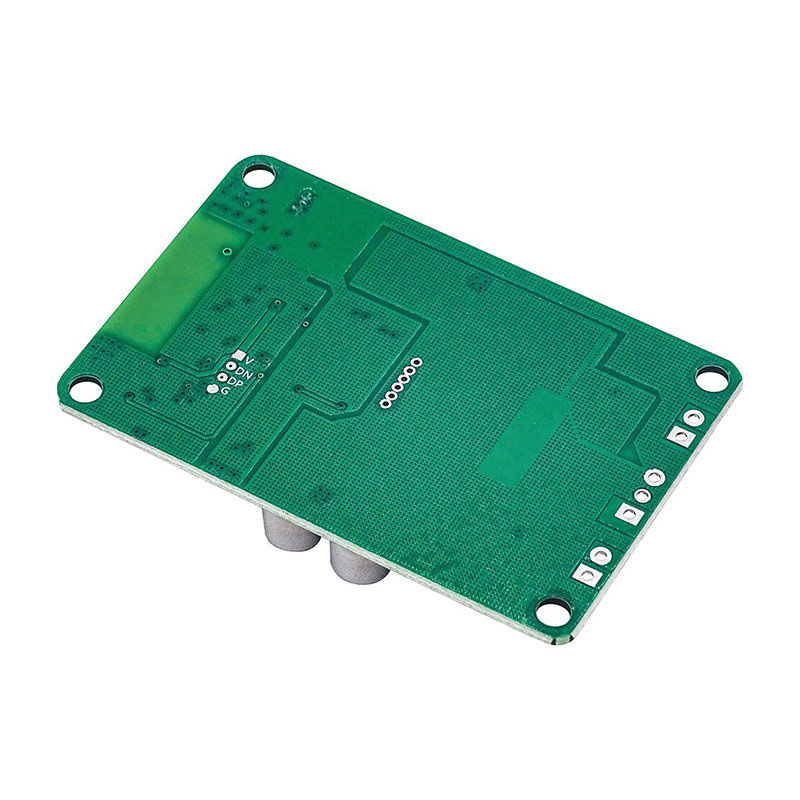

TPA3110 Bluetooth Digital Amplifier Board

Specifications:

Type: Voltage regulator

Application: Speaker

Sound input: wireless Bluetooth

Maximum receiving distance:>10m

Power output: dual channel 15W+15W

Suitable for impedance: 4, 6, 8, 10 ohm speaker speakers

Power supply voltage: 10-25V DC (recommended 12V DC 2A or higher, actual speaker power is not high, 12V DC 1A power supply is sufficient)

Power interface: 2.54mm with a spacing of 3PIN

Horn interface: 2.54mm with a spacing of 2PIN

Function Description: Can be used for speaker conversion, wireless Bluetooth compatible speakers, background music speakers, and other modifications.

Tpa3110 audio power amplifier PCB DC 10-25V Bluetooth compatible digital amplifier PCB 15W 15W, suitable for 4/6/ohm audio systems

Features:

1. Bluetooth compatible connection: Our audio power amplifier board has wireless Bluetooth compatible connection function and provides convenient and flexible audio streaming options.

2. Remote signal reception: The maximum signal reception distance of this wireless amplifier module exceeds 10 meters, making it easy to remotely connect to Bluetooth compatible devices, providing the ultimate convenience for audio playback.

3. High quality sound output: This digital amplifier board has dual channel output function, which can provide clean and powerful sound from 15W to 15W, providing excellent sound quality.

4. Wide impedance compatibility range: The wireless stereo amplifier module is compatible with various speaker impedance levels ranging from 4 ohms to 10 ohms, making it suitable for use with various speaker systems.

5. Variable Power Consumption: The recommended power consumption range for this digital audio amplifier panel is 10V to 25V DC (minimum 12V DC 1a), which can be powered by various different power sources, providing versatility and flexibility in power options.

Note:

Due to differences in display and lighting effects, the actual color of the item may slightly differ from the color shown in the picture. Thank you.

Due to manual measurement, please allow a measurement deviation of 1-2cm.
