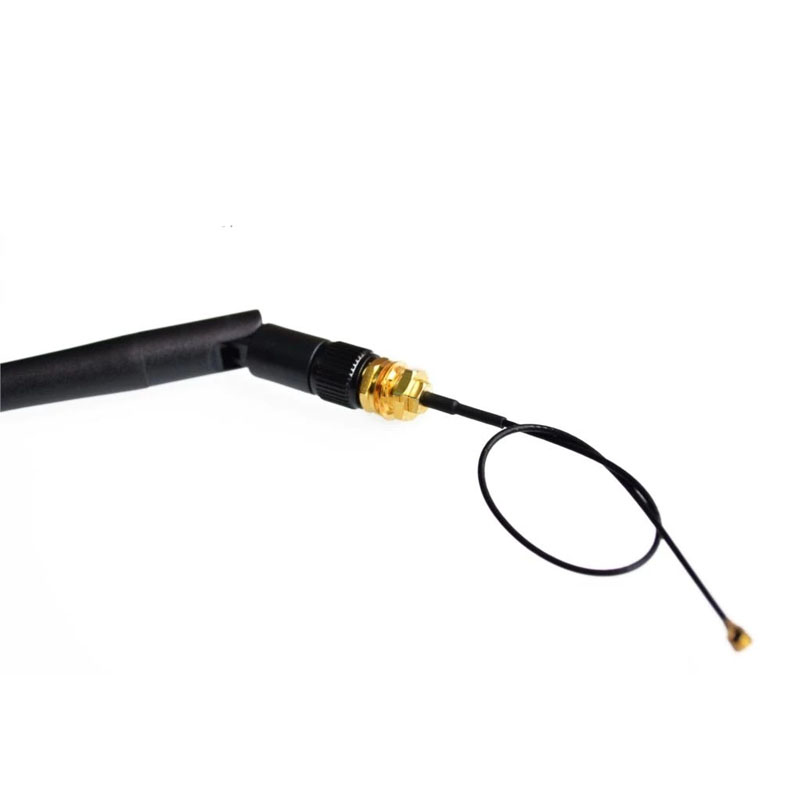

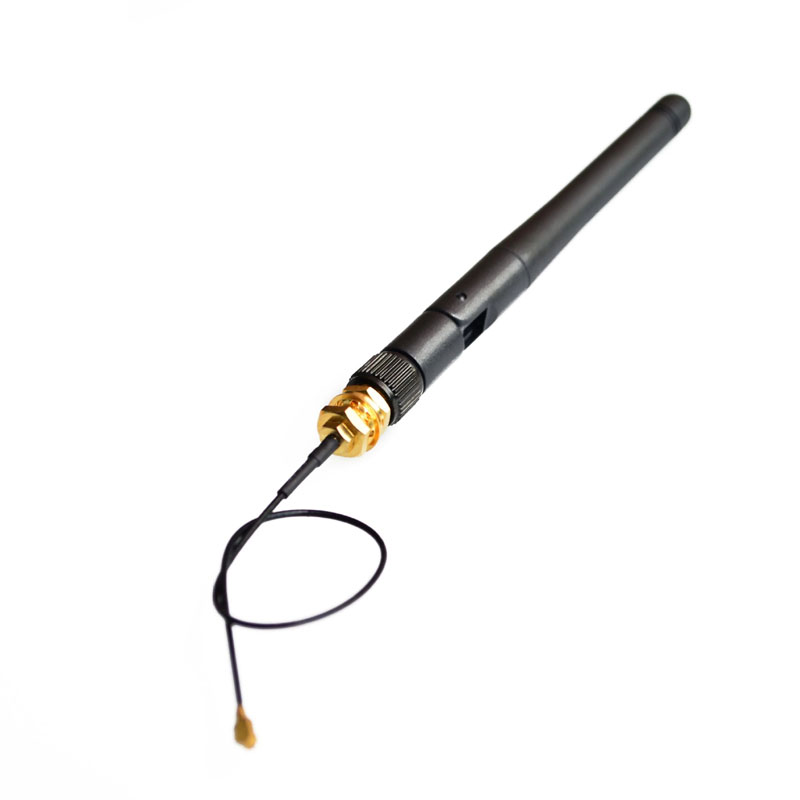

2.4G WIFI Module With IPEX To SMA Female External Antenna Adapter Equipped With SMA Male Antenna

2.4G WIFI Module With IPEX To SMA Female External Antenna Adapter Equipped With SMA Male AntennaItem NO.: 2.4G WIFI Antenna

US$ 3.27
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
2.4G WIFI Module With IPEX To SMA Female External Antenna Adapter Equipped With SMA Male Antenna
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • 2.4G Omnidirectional Antenna





    Electrical Specifications:



    Frequency Range(MHz): 2400-2500

    Gain(dBi):  >2.5

    V.S.W.R.:  <1.5

    Polarization:  Vertical

    Non-Circularity(dB):   ±0.5

    Impedance(Ω) :  50

    Lightning Protection : Direct Ground

    Maximum Input Power(W):   50



    Mechanical Specifications:



    Connector Type:   SMA

    Radiating Element Material:   Copper

    Radome Material:    EVA

    Radome Color:    Gray

    Dimension (mm) :  110(Unbend)  92(Bend)

    Tailing Cable Length(mm):   100/120/200

    Packing Size(mm):   295×110×60

    Wight(Kg):   0.009/12

    Application Condition:  Indoor

    Operating Temperature(℃):  -40~+70

    Reposition Temperature(℃):  -55~+80
