TTP223-BA6 Touch Button Module Single Point Penetration Capacitance Induction Touch Pad Switch IsolationItem NO.: TTP223-BA6 Module
-
Customized Requirements
- Quantity
-
-
- Product Name: TTP223-BA6 Touch Button Module Single Point Penetration Capacitance Induction Touch Pad Switch Isolation
- Item NO.: TTP223-BA6 Module
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Touch Button Module , TTP223-BA6 , Capacitance Induction Touch Pad
- Creation Time: 2024-05-08
TTP223-BA6 Touch Button Module
Module Introduction:

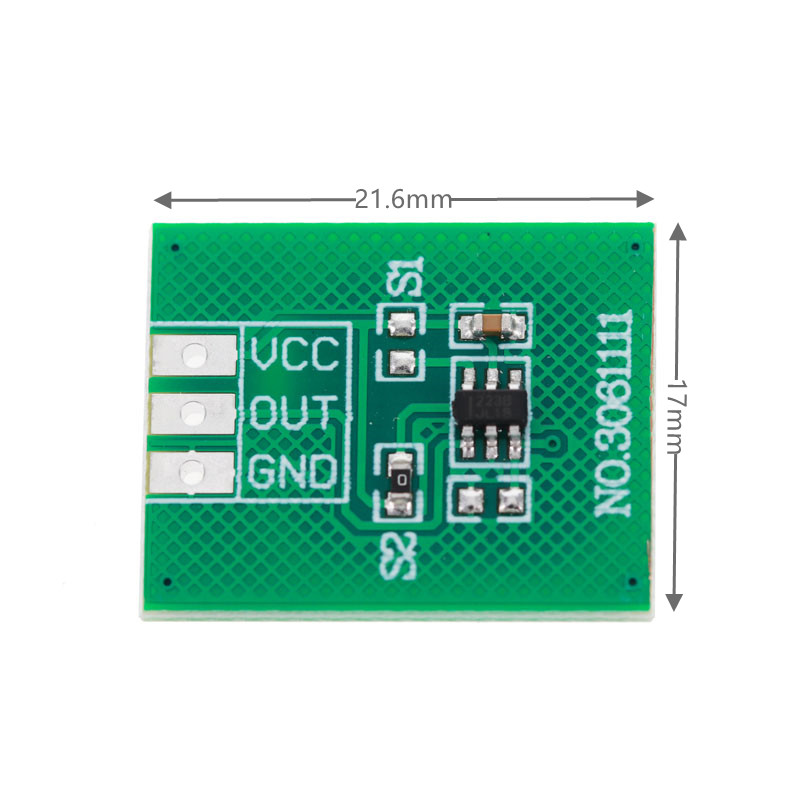

The module is a capacitive touch button switch module based on TTP223B, with a length of 21.6mm and a width of 17mm. It defaults to jog mode. When the button is not touched, the OUT pin outputs a high level, and when the button is touched, the OUT pin outputs a low level.

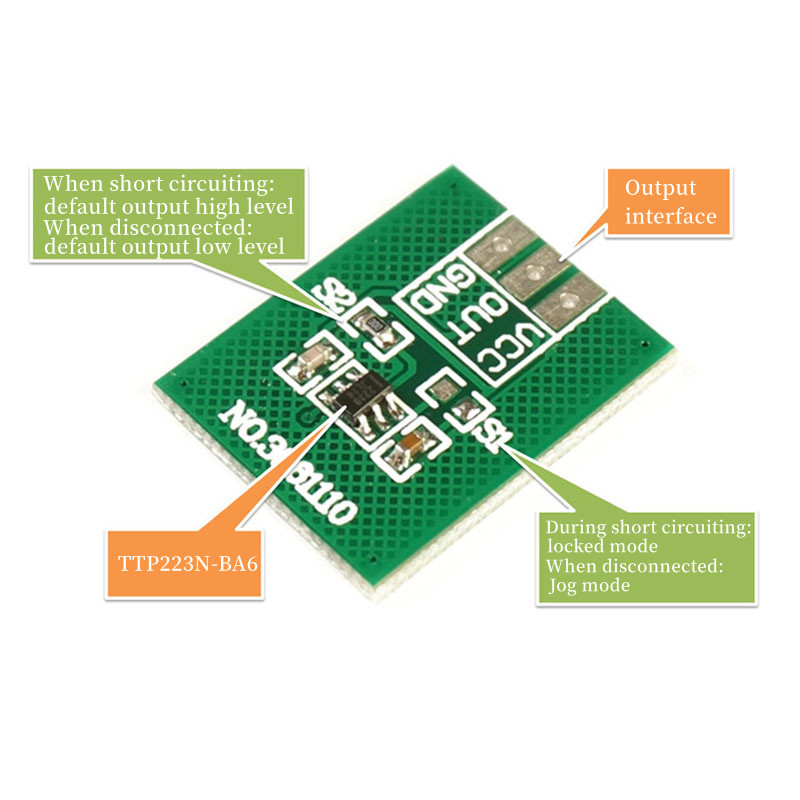

You can switch to lock mode through the short contact on the module. When in lock mode, press the button once to leave, and OUT will maintain low output level. Press the button again, and OUT will output high output level.

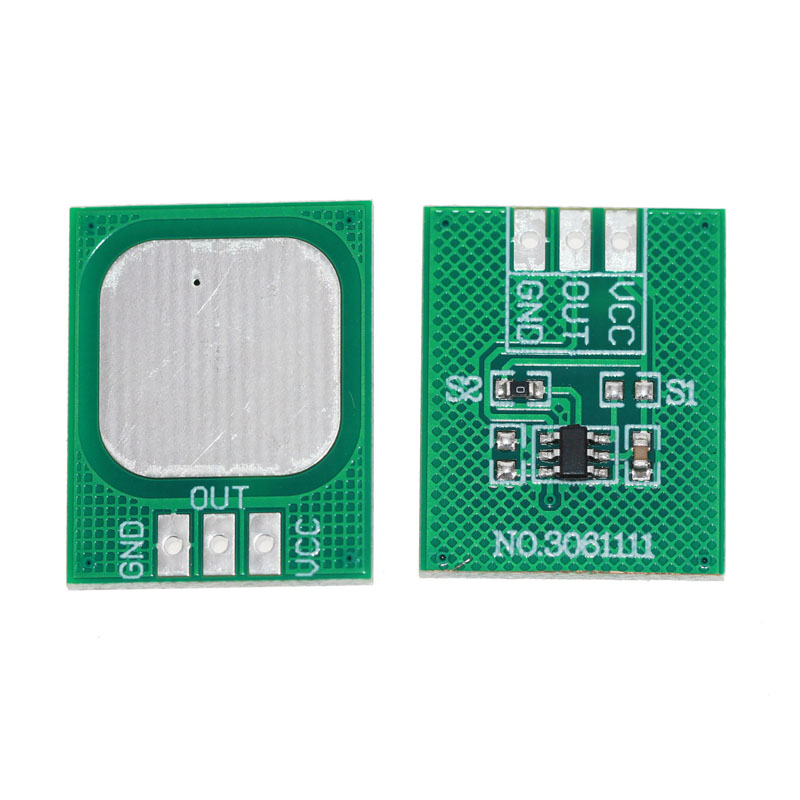

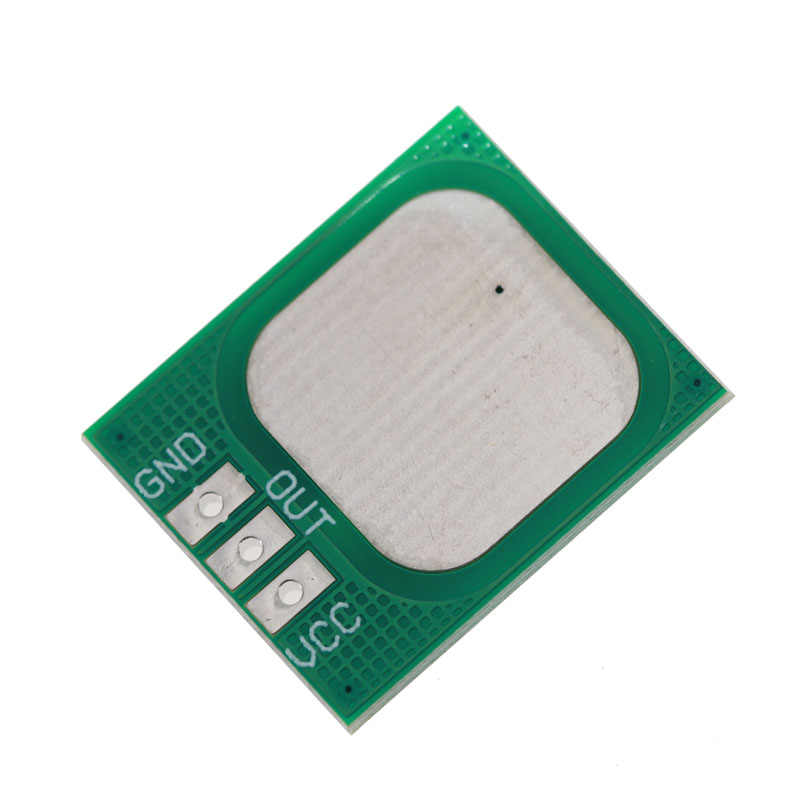

The module can be pasted on the back of non-metallic media such as glass and plastic, with a penetration distance of about 4mm. When pasting, the sensing surface of the module and the medium should be tightly adhered without air.
Module Parameters:
● Chip: TTP223N-BA6
● Working voltage: 2.5V~5.5V
● Penetration distance: about 4mm
● Isolation medium: non-metallic
● Response time: 60ms (fast mode)
● Response time: 220ms (low power mode)
● Operating temperature: -40 ° C~85 ° C
● Chip level: Industrial grade
● Module size: 21.6mm * 17mm * 3mm
● Default output: High level
● Trigger output: low level
● Default working mode: Jog
