Customized Requirements
- Quantity
-
-
- Product Name: MP34DT01 PDM MEMS Microphone Module
- Item NO.: MP34DT01 MIC
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: MP34DT01 , Microphone Module
- Creation Time: 2024-05-08

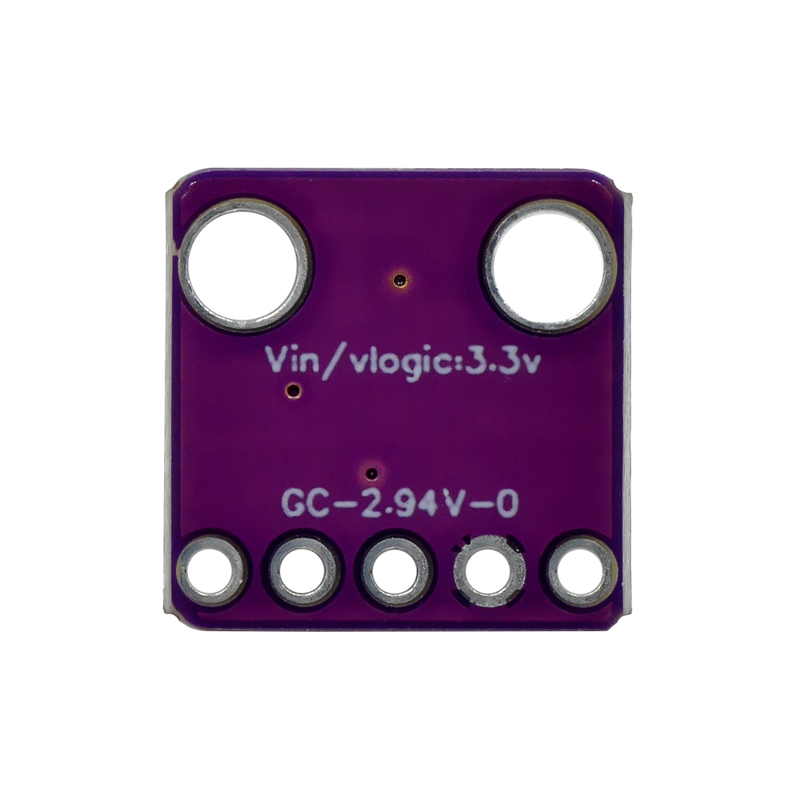

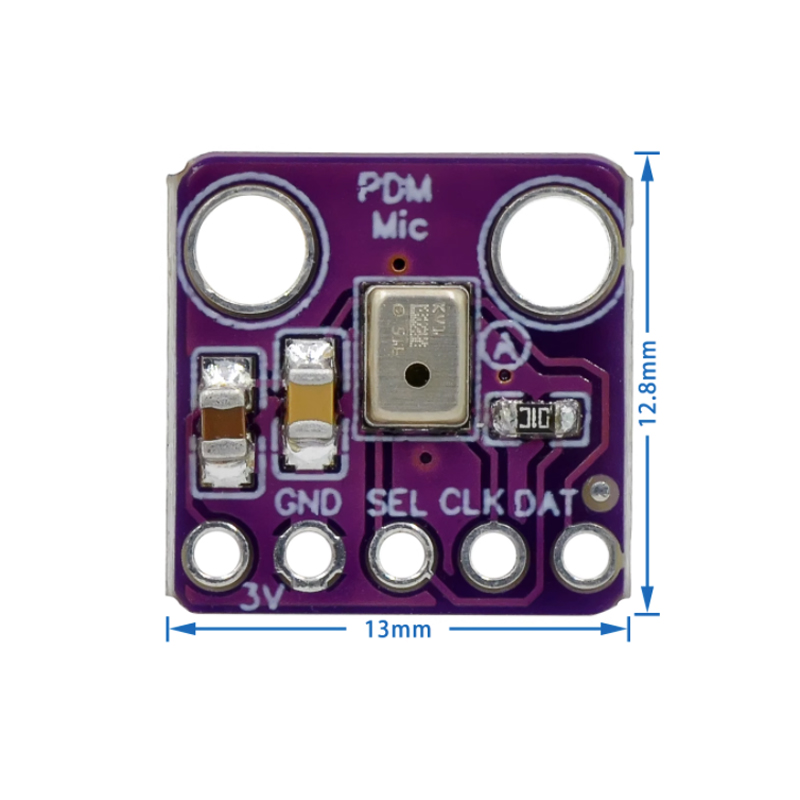

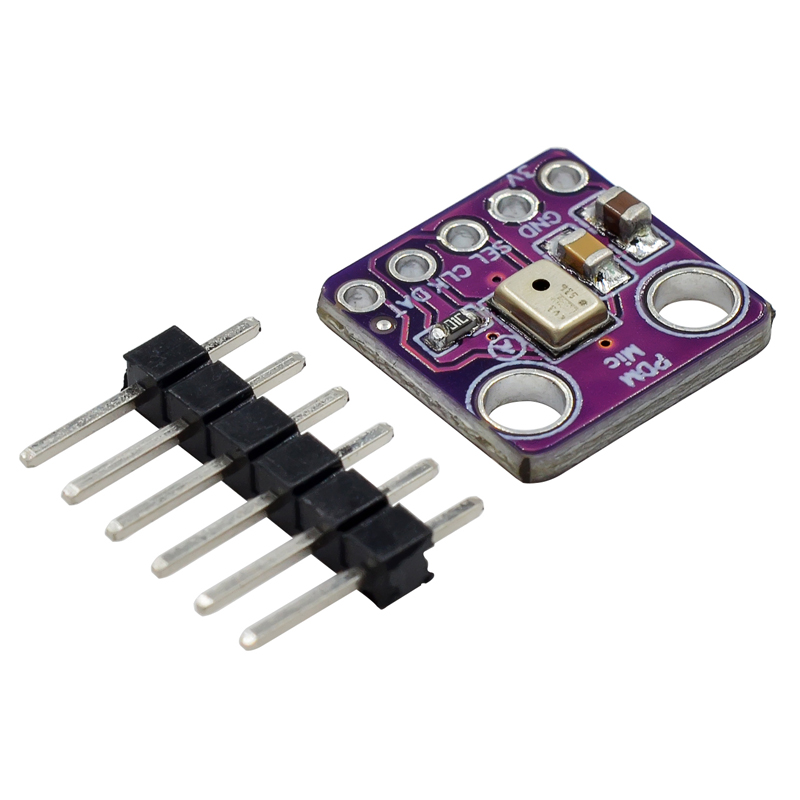

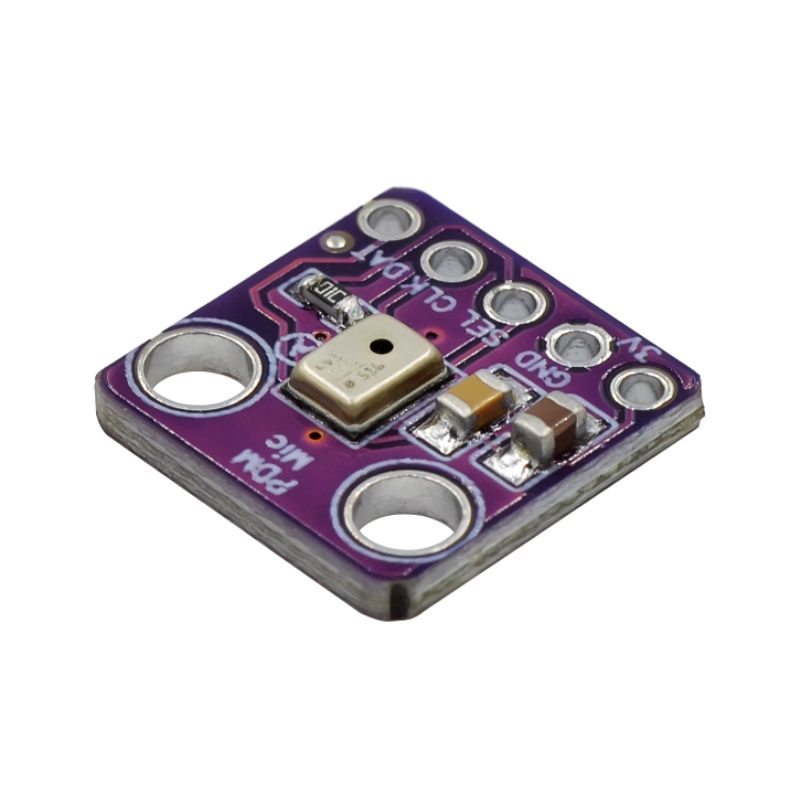

MP34DT01 Microphone Module
Product Features:
1. This product has a digital interface and is a very simple pulse density modulation output.
2. High sensitivity, can be integrated with electronic devices, and is not susceptible to external interference.
3. The signal-to-noise ratio is very low, only 61dB, which is very practical.
4. Adopting high-quality electronic components with precise craftsmanship to ensure durability.
5. The pin has good contact performance to ensure stable operation.
Product Parameters:
● Working power supply voltage: 1.8V~3.3V
● Clock frequency: 1-3.25MHz
● Current consumption: 0.6mA
● Signal to noise ratio: 61dB
● Sensitivity: -26dBFS
● Product weight: 0.5g
● Interface type: PDM
