- Product Name: DC-DC Step-Up Module 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 3.3V/5V Mini Ultra Small Boost Converter Module
- Item NO.: MK03152
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: DC-DC , Step-up Module , 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 3.3V/5V , Mini Ultra Small Boost Converter Module
- Creation Time: 2024-04-10

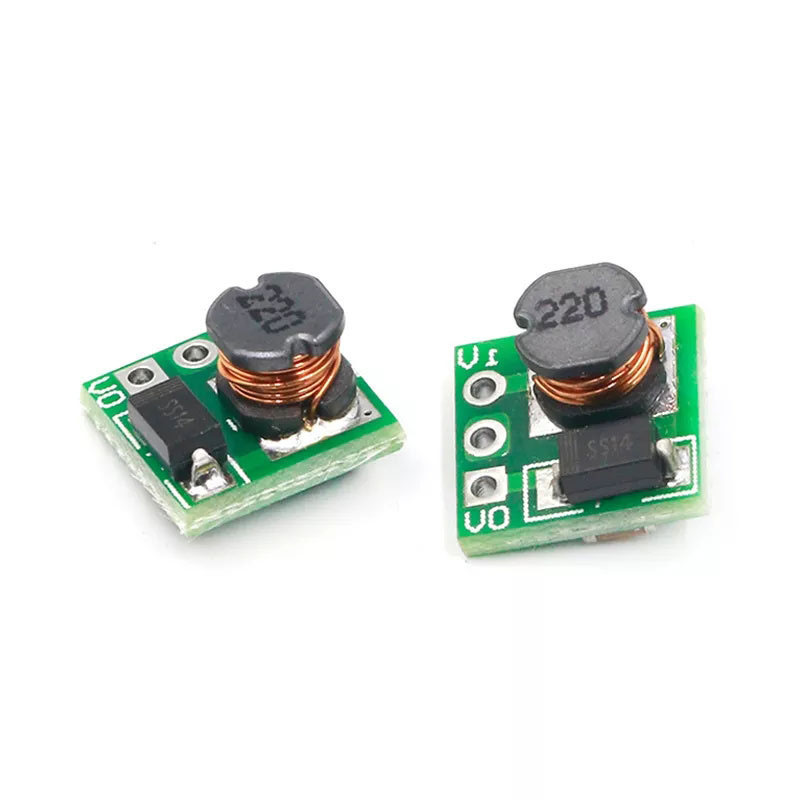

Mini Ultra Small Boost Converter Module

Product Information:

● DC-DC boost conversion module, operating frequency 150KHZ, typical conversion efficiency 85%

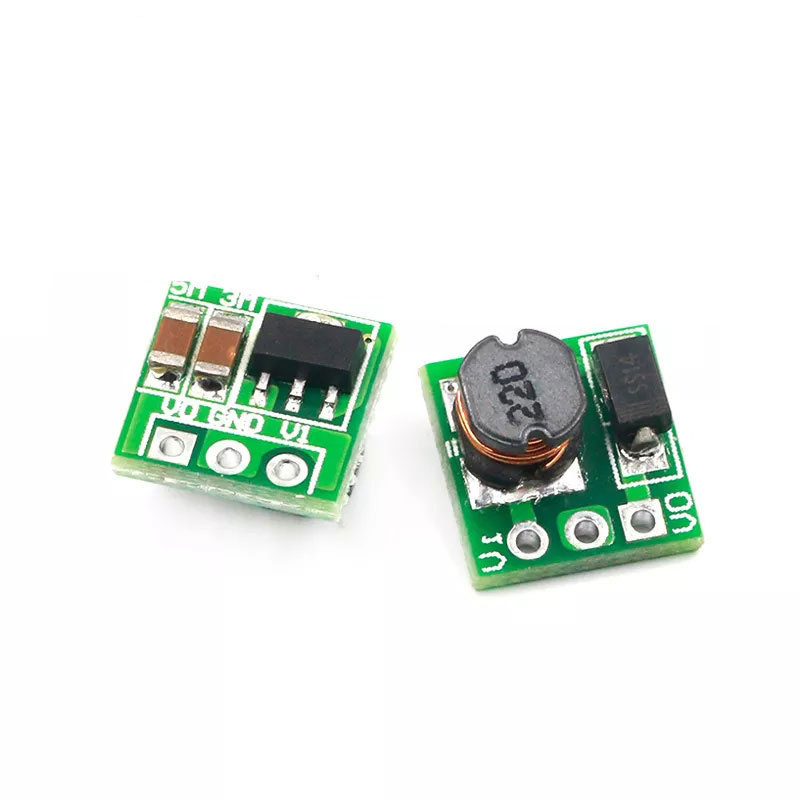

● Pin spacing of 2.54MM

● Size: 11mm x 10.5mm x 7.5mm (very small)

● Weight: approximately 1 gram (very light)

3.3V Output Version Parameters:

● Input voltage 0.8-3.3V; Output voltage 3.3V

● Maximum output current: 500 mA

● Starting voltage 0.8V, output current 10MA

● Input 1-1.5V, output 3.3V 50-110MA;

● Input 1.5-2V, output 3.3V 110-160MA;

● Input 2-3V, output 3.3V 160-400MA;

5V Output Version Parameters:

● Input voltage 0.9-5V; Output voltage 5V

● Maximum output current: 480 mA

● Starting voltage 0.8V, output current 7MA

● Input 1-1.5V, output 5V 40-100MA;

● Input 1.5-2V, output 5V 100-150MA;

● Input 2-3V, output 5V 150-380MA;

● Input exceeding 3V, output 5V 380-480MA;

This is a voltage boost conversion module, and the following conditions must be followed when using it:

1. The input voltage cannot be greater than the nominal voltage, otherwise the module will burn out

2. The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage.

3. The output load cannot be greater than the nominal load, otherwise the output voltage will be less than the nominal voltage.

Shipping List:

1 mini ultra small boost conversion module
