Type-C Dual Channel Low-power TF Card Decoding Board 2X5W Player PAM8403 Amplifier Module XH-A152Item NO.: XH-A152
-
Customized Requirements
- Quantity
-
-
- Product Name: Type-C Dual Channel Low-power TF Card Decoding Board 2X5W Player PAM8403 Amplifier Module XH-A152
- Item NO.: XH-A152
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: TYPE-C , PAM8403 , Dual Channel , Decoding Board , Amplifier Module , XH-A152 , 2X5W
- Creation Time: 2024-05-03

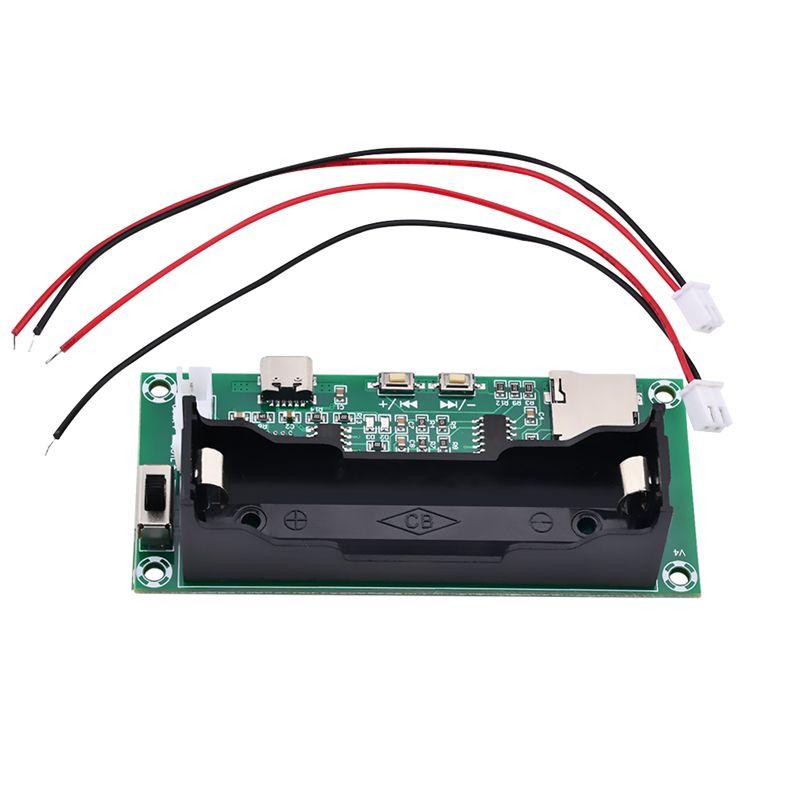

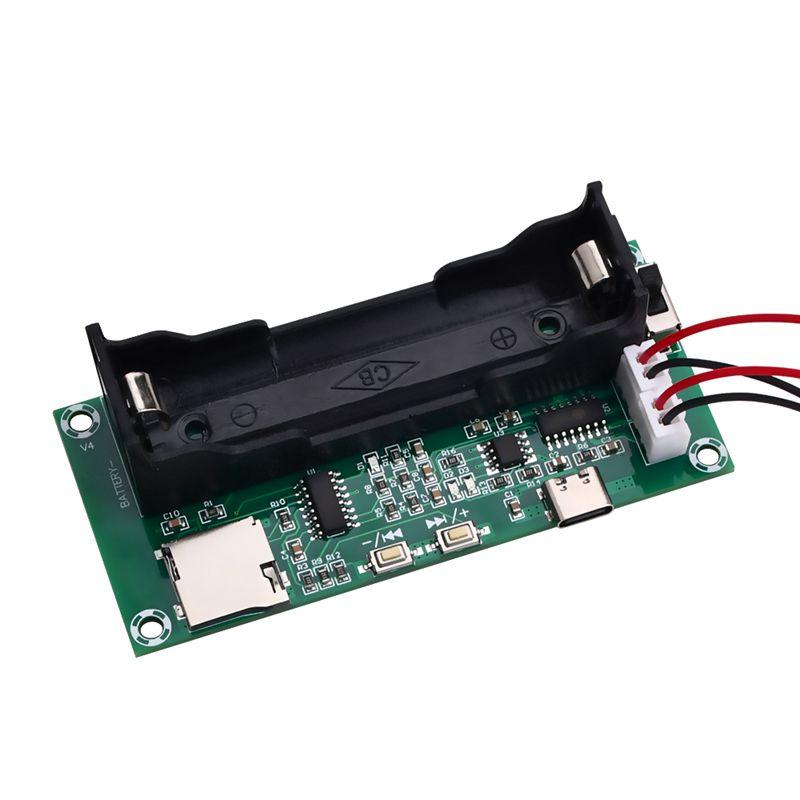

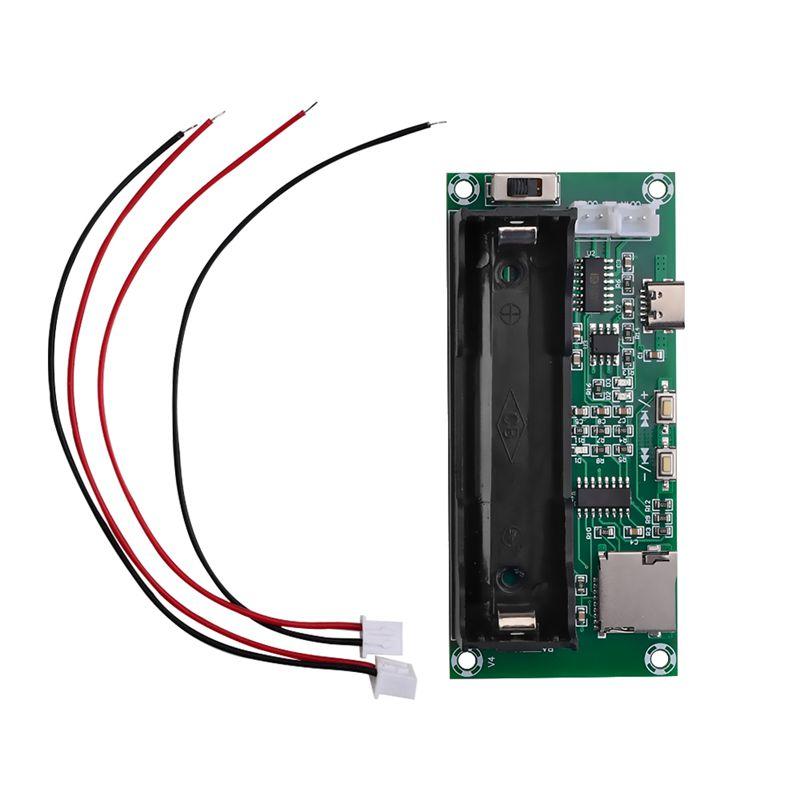

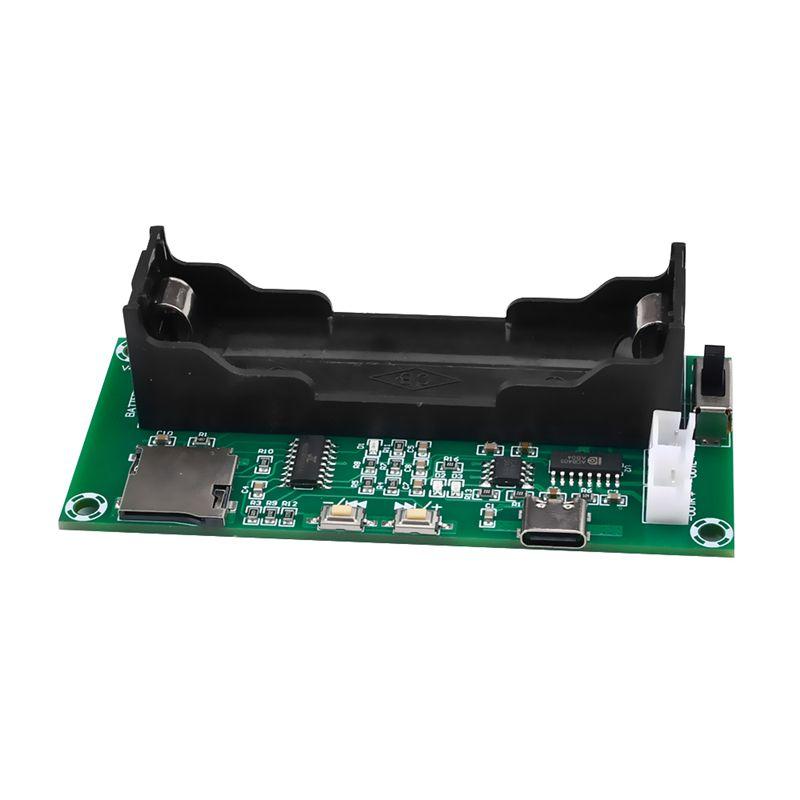

Type-C Dual Channel TF Card Decoding Board
Product features:
1. Upgrade Type-C interface, high-definition digital amplifier 2X5W
2. Mobile phone charger/DC5V Type-C port can be used for charging
3. The decoding chip supports most music formats on the market, such as MP3, WAV, WMA, etc
4. Work status display: battery fully charged indicator light battery charging indicator light power indicator light
5. It can be directly powered or powered by 18650 batteries
Product parameters:
Product Name: TF Card Digital Player
Chip type: Class D
Chip model: PAM8403
Power supply voltage: DC5V 2A
Standby current: 8-16mA
Output channel: dual channel stereo
Output power: 2 * 5W (4 Ω)
Signal to noise ratio: 80%
Interface: Type-C
Product size: 93 * 42 * 23mm
Installation size: 83 * 32mm
Installation aperture: 4mm
Weight: 28g
Shipping list:
Digital power amplifier X1
