Home>Electronic Modules>Audio Amplifier >HXJ8002 Mini Power Amplifier Module Audio Amplifier Module Mono Voice Low Noise
US$ 2.52
-
Customized Requirements
- Quantity
-
Adding to cart succeed
HXJ8002 Mini Power Amplifier Module Audio Amplifier Module Mono Voice Low Noise
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: HXJ8002 Mini Power Amplifier Module Audio Amplifier Module Mono Voice Low Noise
- Item NO.: XD-58B
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Audio Amplifier Module , HXJ8002 , Mini Power Amplifier Module
- Creation Time: 2024-05-03

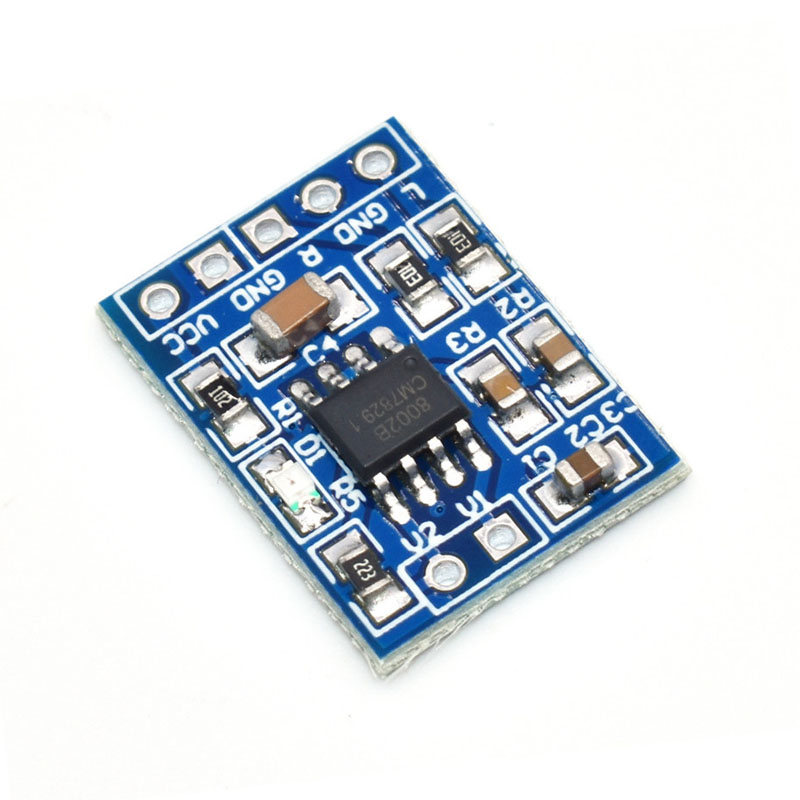

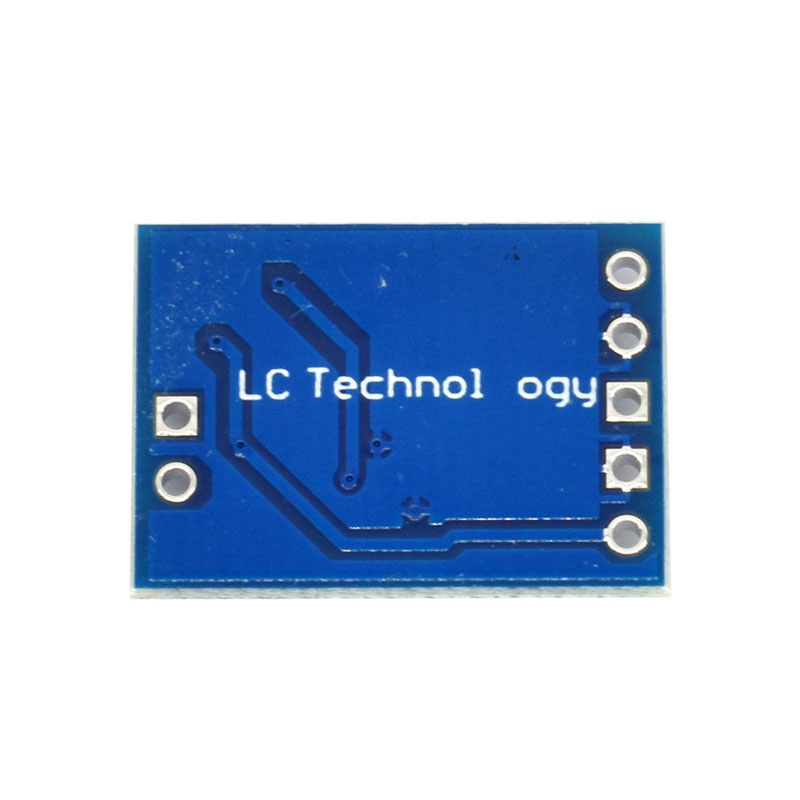

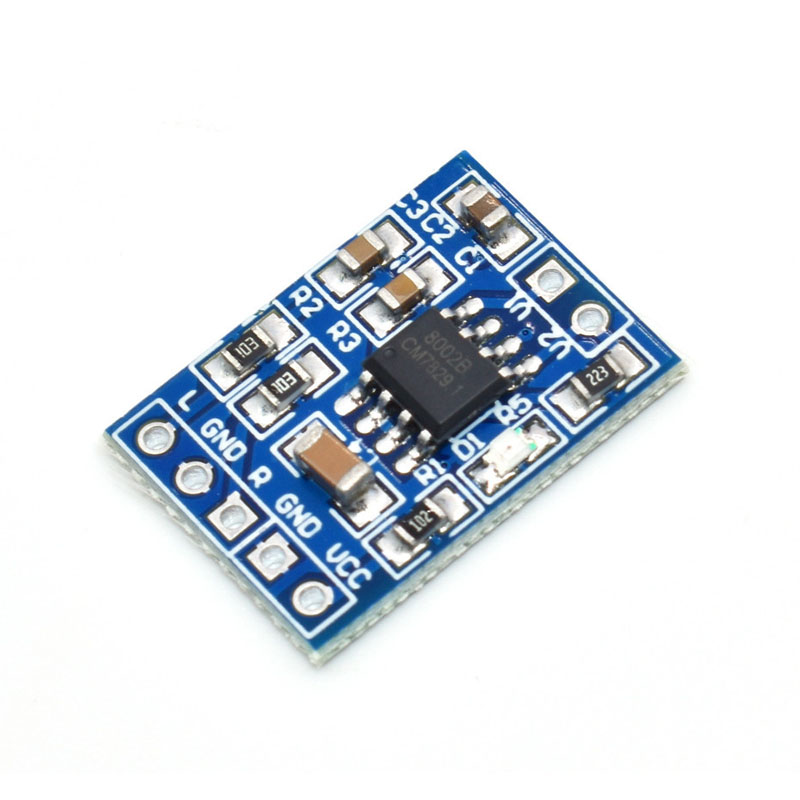

HXJ8002 Mini Power Amplifier Module
Product Information:
1. Onboard HXJ8002 single channel 3W, BTL bridge connected audio power amplifier chip
2. Working voltage: 2.0-5.5V
3. Standby current: 0.6uA (typical value)
4. Under the condition that the input signal is 1kHz, 8 Ω load, and the average output power is 1W, the distortion is 0.5%
5. When THD+D<10% and 1KHZ frequency is input, the output power under different load conditions is (typical value): 3W (load 3 Ω); 2.5W (load 4 Ω); 1.5W (load 8 Ω)

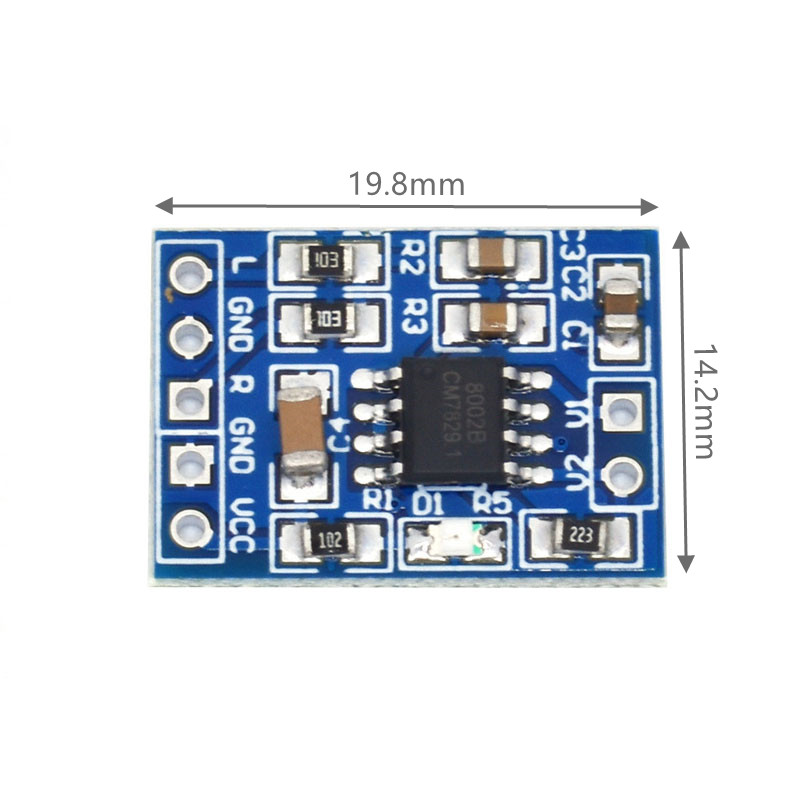

6. Plate size: 19.8 (mm) x14.2 (mm)
