Type-C PD Fast Charge Trigger Decoy DC Full Protocol PPS Of Digital Display Voltage Ammeter Detection InstrumentItem NO.: XY-PDT
-
Customized Requirements
- Quantity
-
-
- Product Name: Type-C PD Fast Charge Trigger Decoy DC Full Protocol PPS Of Digital Display Voltage Ammeter Detection Instrument
- Item NO.: XY-PDT
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: TYPE-C , PD Fast Charge Trigger Decoy , DC Full Protocol PPS Of Digital Display Voltage Ammeter Detectio
- Creation Time: 2024-05-13

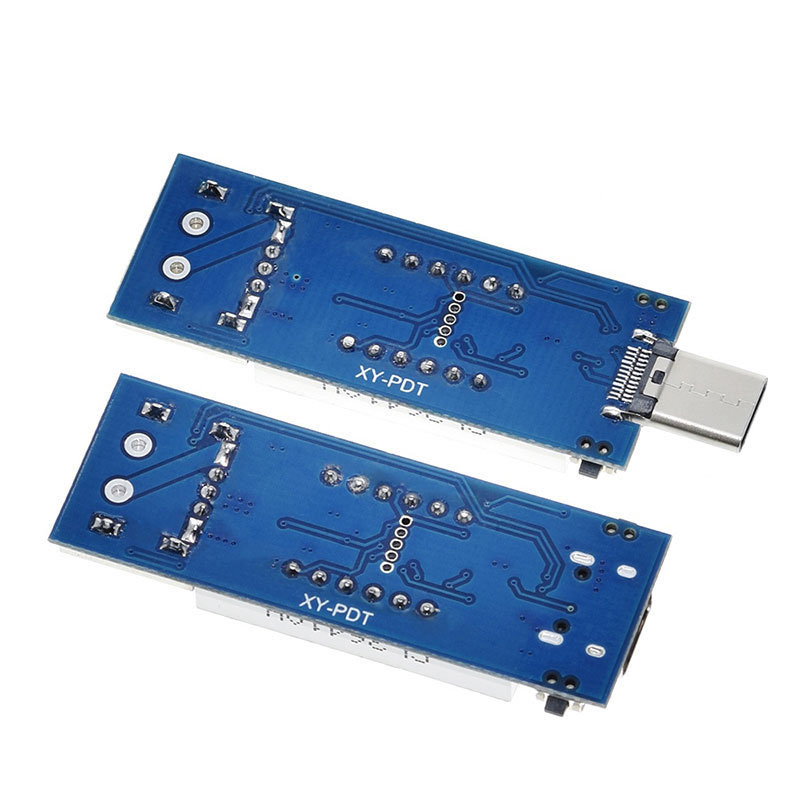

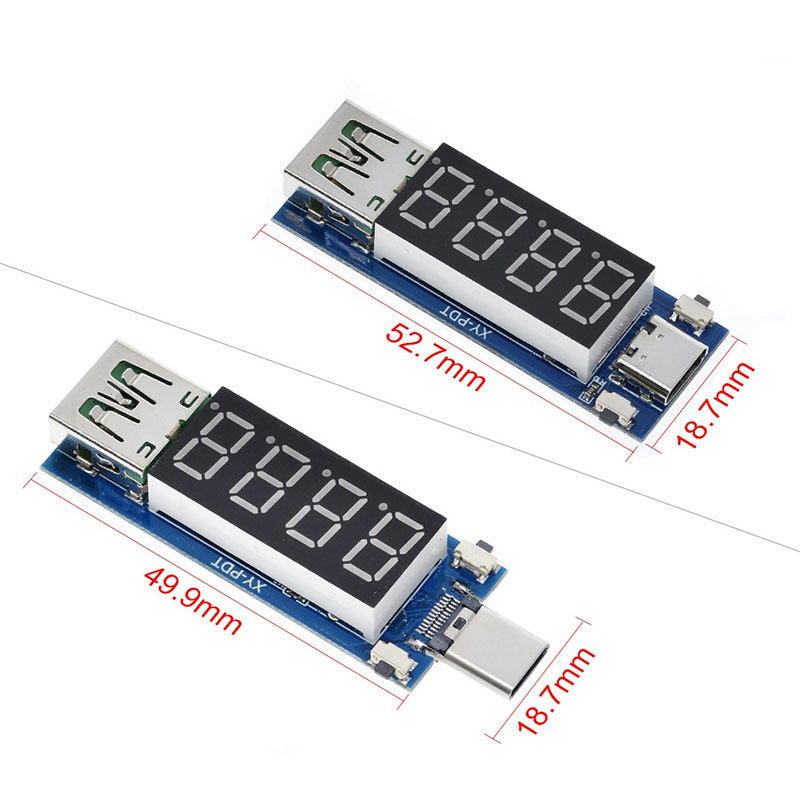

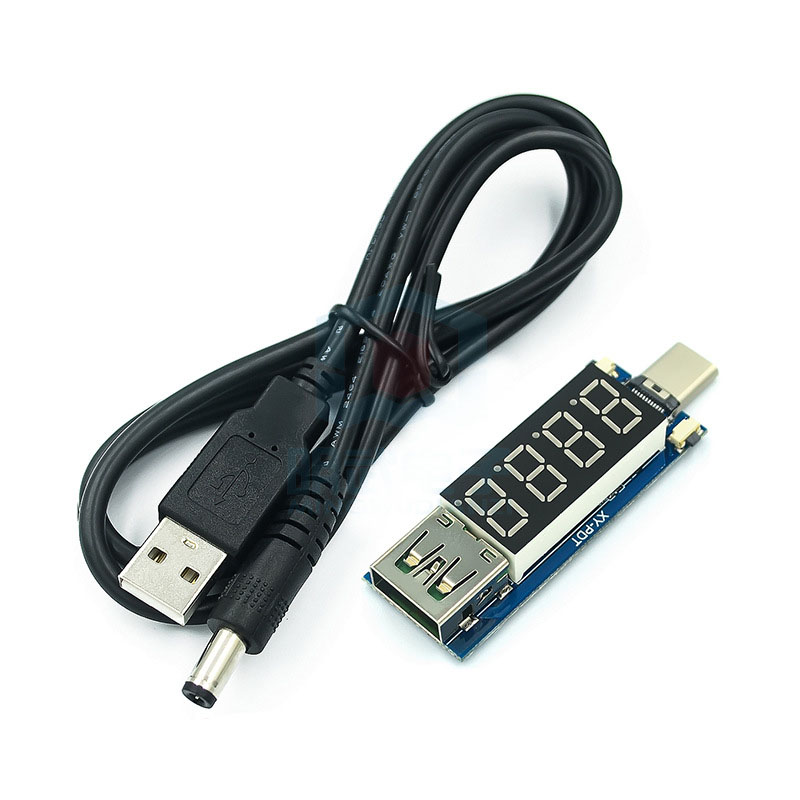

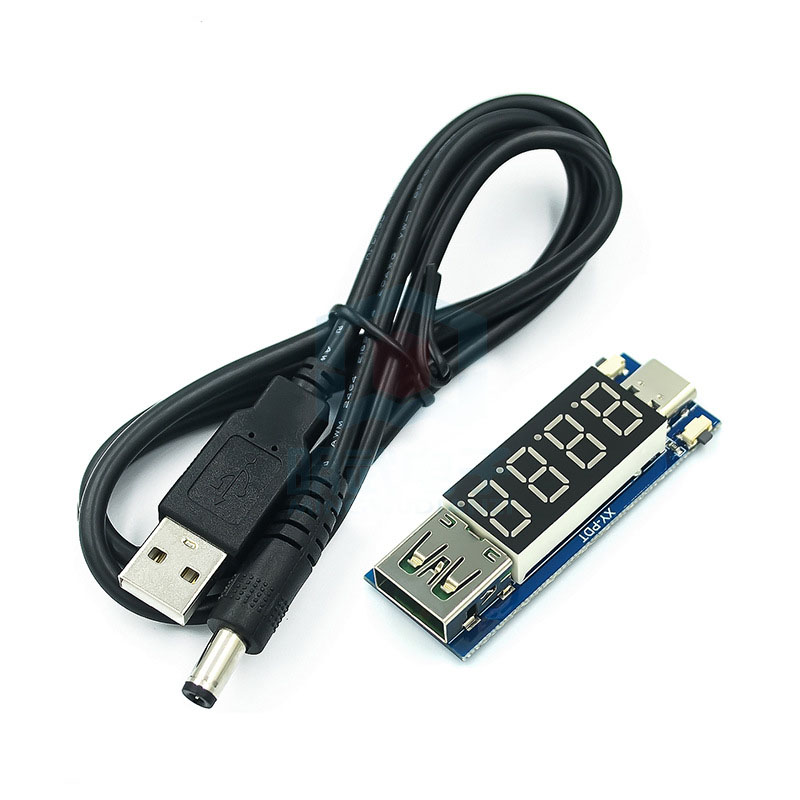

Type-C PD Fast Charging Trigger Decoy
Product Introduction:
Full protocol PD fast charging decoy specially designed for PD charger, integrated with voltage Ammeter, and supporting PPS step voltage regulation, which is equivalent to turning the PD charger into a 4-20V adjustable power supply

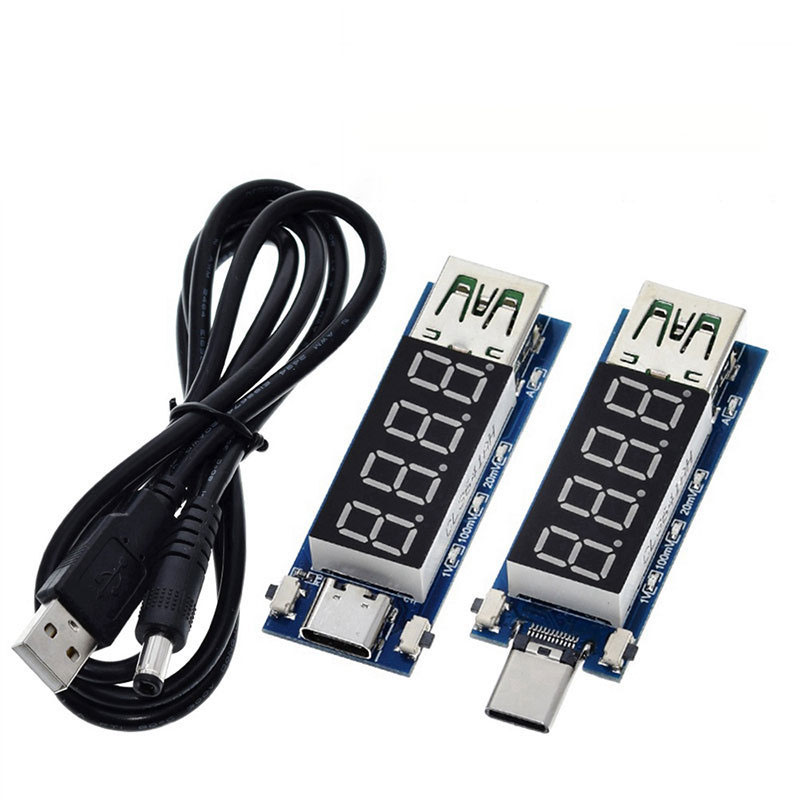

Detailed Explanation Of buttons And Functions:
Display the type of PD protocol on each power up
'----': PD protocol not supported
Pd2.0: Supports PD2.0 protocol
Pd3.0: Supports PD3.0 protocol
How To Switch Display Content:
On the running interface, briefly press the K1 key to switch between displaying voltage/current/rotation; Press and hold K1 key 5 to turn off the Nixie tube and indicator display, and press any key to wake up.
How To Adjust The Voltage Range:
1. In the operation interface, press the K2 key briefly to enter the voltage regulation interface, and the voltage will flash after the current gear is displayed on the Nixie tube;
2. At this point, modify by briefly pressing the K2/K1 button (K2 for upshift and K1 for downshift). When switching gears, first display "P7-1" (P7: supports a total of 7 voltage gears, -1: represents the serial number of the current voltage gear), and then display the voltage value of the current gear; If the current voltage level supports PPS step voltage regulation, the step level indicator light (20MV 100MV 1V) will be fully lit;
3. 5 seconds without any button operation or long press and hold K1 button for 2 seconds, automatically returning to the running interface;
Note: The last gear of "P7-L", "L", is a rotating trigger gear. After selecting the L gear and returning to the operation interface, it will take turns to trigger all supported gears (5V/9V/12V/15V/20V/PPS mode). In this mode, the step voltage indicator light on the operation interface will be in a running light mode; This function can be used for batch testing by charging head manufacturers.
Note: Generally, PD2.0 charging heads support 4-5 gear voltage regulation modes, which will display "P4-1" or "P5-1" format. PD3.0 charging heads generally support 6-7 gear voltage regulation modes, which will display "P6-1" or "P7-1" format.
How To Adjust Voltage In PPS Step Voltage Regulation Mode:
1. Firstly, ensure that the PPS step gear indicator light (20MV, 100MV, 1V) is fully on/one of these;
2. Press and hold K2 key to enter PPS voltage regulation, the voltage value of Nixie tube flashes, and first activate 1V step gear voltage regulation;
3. Press and hold K2 again to switch to the stepper gear;
4. After selecting the corresponding step gear, short press the K1/K2 keys to modify the voltage. When the step gear indicator light is fully on, short press the K1/K2 keys to exit the PPS voltage regulation mode and select other voltage gears;
5. 5 seconds without any button operation or long press and hold K1 button for 2 seconds, automatically returning to the running interface;
This product has a power outage memory function, so remember the voltage level and PD mode before the power outage the next time you power on.
Application Scope:
1. This product can trigger the voltage of different gears inside the PD charging head to power external devices, such as routers, optical cats, set-top boxes, or laptops (to achieve adapter replacement under the condition that the power of the PD charging head meets the requirements)
2. Can be used for batch testing by PD charging head manufacturers
