Voice Playback Module MP3 Triggers Playback Once Microcontroller DIY Controls Prompt Player M3D5TItem NO.: YS-M3D5T
-
Customized Requirements
- Quantity
-
-
- Product Name: Voice Playback Module MP3 Triggers Playback Once Microcontroller DIY Controls Prompt Player M3D5T
- Item NO.: YS-M3D5T
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: Voice Playback Module , MP3 Triggers Playback Once , DIY Controls Prompt Player , M3D5T
- Creation Time: 2024-06-15

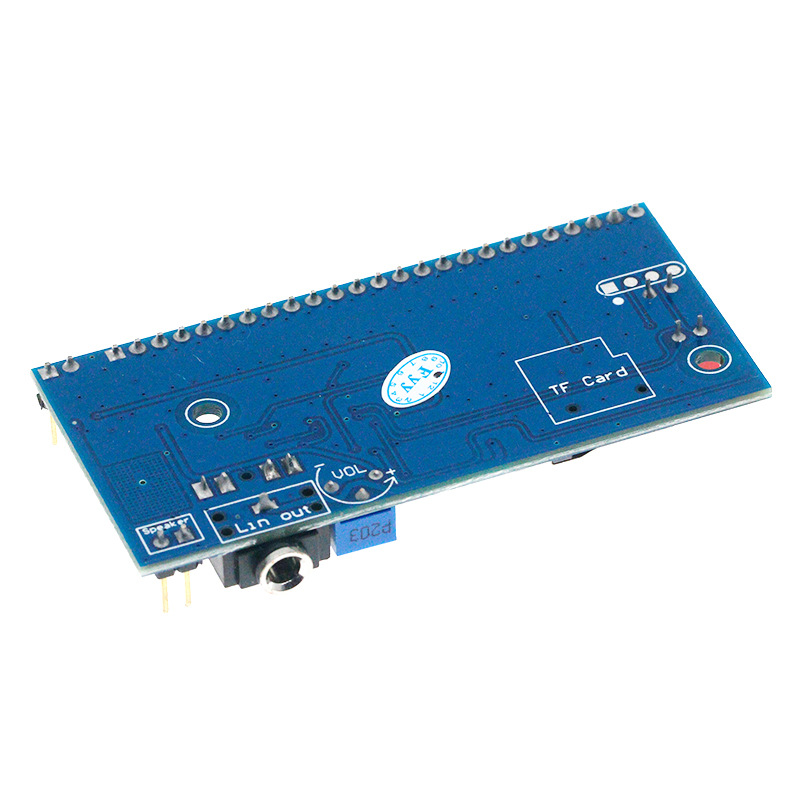

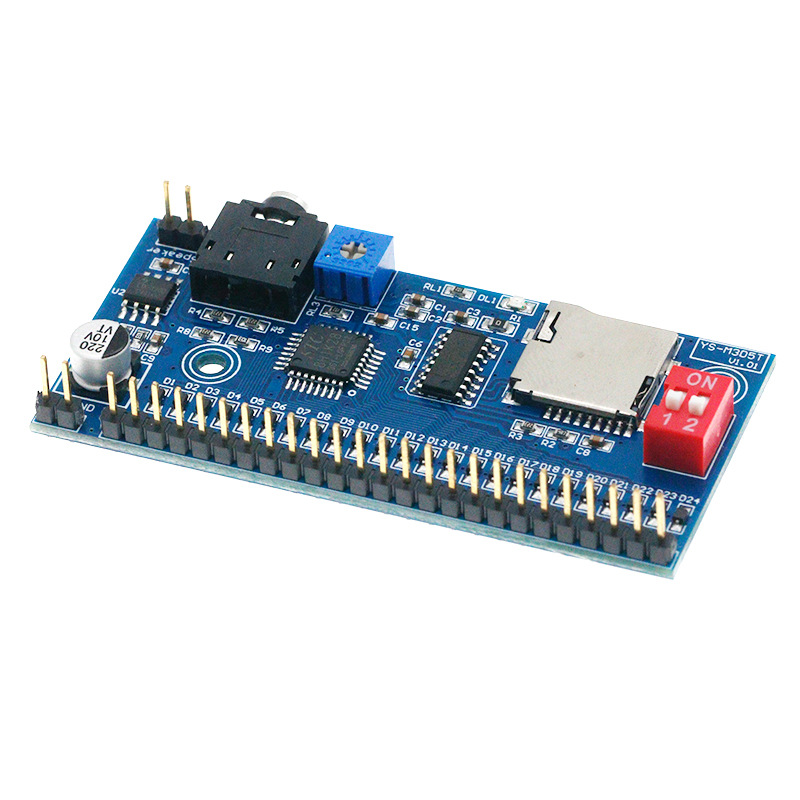

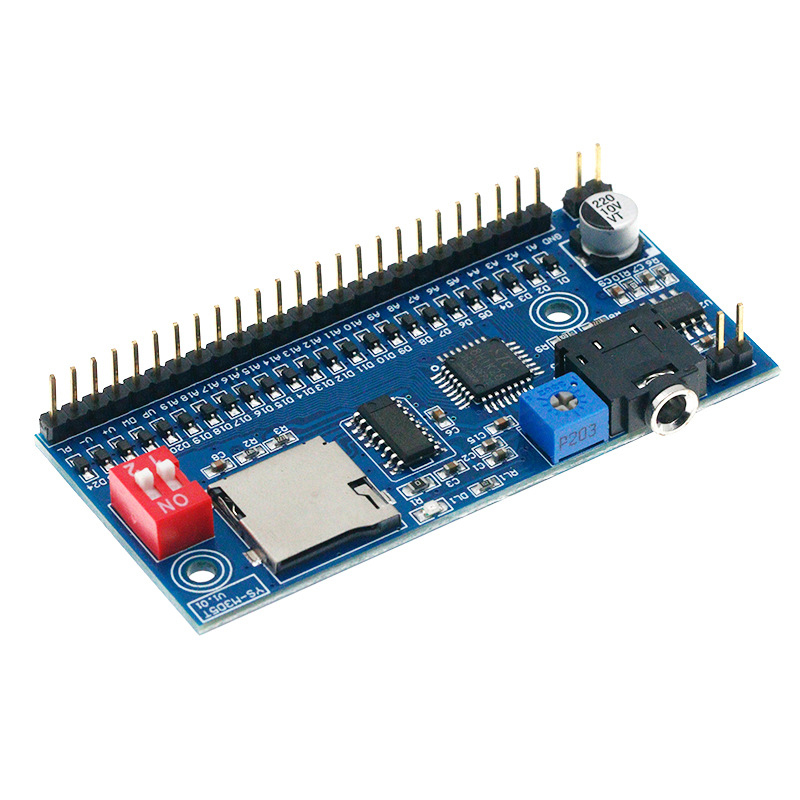

Voice Playback Module M3D5T
Product Description:
Name: Voice playback module
Model: YS-M3D5T
Specification: 7.2 * 3.5 * 0.9cm
Power supply voltage: 5V (range 3.7-5.5V, supports 3.7V/4.2V such as 18650, output capacity>200mah)
Power supply current: ≥ 300ma (if not connected to the speaker, ＞ 50ma is also acceptable)
Standby current: 36MA
Working current:>50MA (depending on the speaker and sound level)
Trigger ports: 19 (one port corresponds to one MP3)
Function ports: 5 (up and down, volume up and down, pause/play)
Equipped with modes: single not looping, single looping, playback cannot be interrupted, long press playback mode
Speaker parameters: 0.5-5 watts 2-8 ohms (adjustable volume)
Supports maximum memory: 32GB
Support playback formats: MP3, WAV
File format requirement: A folder with the name "01" needs to be created, and then the 001.MP3-019.MP3 file needs to be stored
Working temperature and humidity: -20-50 ℃, HR: 5% -90%
Note: When using battery power, pay attention to the sufficient capacitance, otherwise the voltage will drop to 3.5V and it will not work properly when there is a power shortage.
