W5500 Module TCP/IP Ethernet Module Compatible With WIZ820IO Network InterfaceItem NO.: W5500 TCP IP
-
Customized Requirements
- Quantity
-
-
- Product Name: W5500 Module TCP/IP Ethernet Module Compatible With WIZ820IO Network Interface
- Item NO.: W5500 TCP IP
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: W5500 , TCP/IP Ethernet Module , Network Interface
- Creation Time: 2024-04-17
W5500 Module TCP/IP Ethernet Module
Product Information:

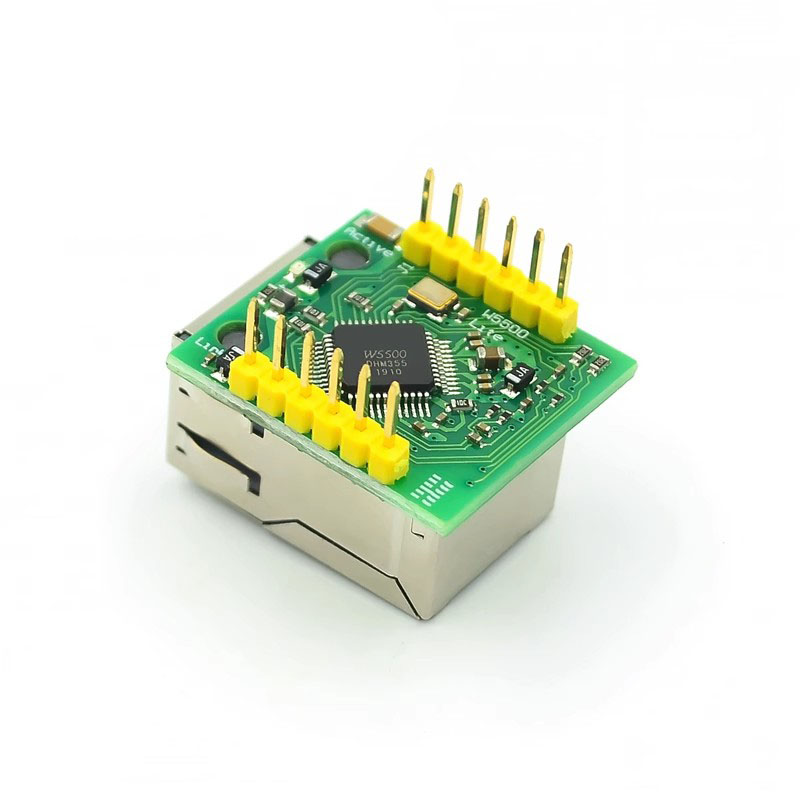

USR-ES1 is embedded with Wiznet's W5500 chip, using hardware logic gate circuits to implement the transport layer and network layer of the TCP/IP protocol stack (such as TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE, etc.), and integrates data link layer, physical layer, and 32K bytes of on-chip RAM as data transmission cache. The upper computer main control chip only needs to undertake the processing task of TCP/IP application layer control information. As a result, the workload of data replication, protocol processing, and interrupt processing on the upper computer has been greatly reduced, and the system utilization and reliability have been improved.
During the operation process, users can approximately use the W5500 as a peripheral RAM of the MCU, which is very simple. The W5500 external interface is a universal 80MHz high-speed SPI for different platforms to choose from when expanding high-speed Ethernet solutions. Automatic negotiation LED status display SPI interface has fast speed and high stability.
Size and pin compatibility with Wiznet's official module WIZ820io
Note: This module is not a SPI to Ethernet transparent transmission module and requires the use of an external microcontroller. Users need to understand the usage method of the W5500 chip. Provide example code for STM32.
Product features:
80MHz high-speed SPI interface
The built-in hardware TCPIP protocol stack eliminates the need for users to master complex network protocol knowledge
Supports multiple 8 socket connections
Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
Integrated data link layer and physical layer
Supports power down wake-up
Supports high-speed serial peripheral interface (SPI mode 0~3)
Internal 32K Byte Transmit Cache
Embedded 10BaseT/100BaseTX Ethernet Physical Layer (PHY)
Support for automatic negotiation (10/100 Based full duplex/half duplex)
IP sharding not supported
3.3V working voltage, I/O signal port 5V withstand voltage
LED status display (full duplex/half duplex, network connection, network speed, activity status)
Ultra small pin type packaging for easy embedded applications
Product characteristics:
Power supply method: 3.3V external power supply, current should be greater than 200mA
Control interface form: 3.3V TTL level, SPI interface; 2 * Single row needle

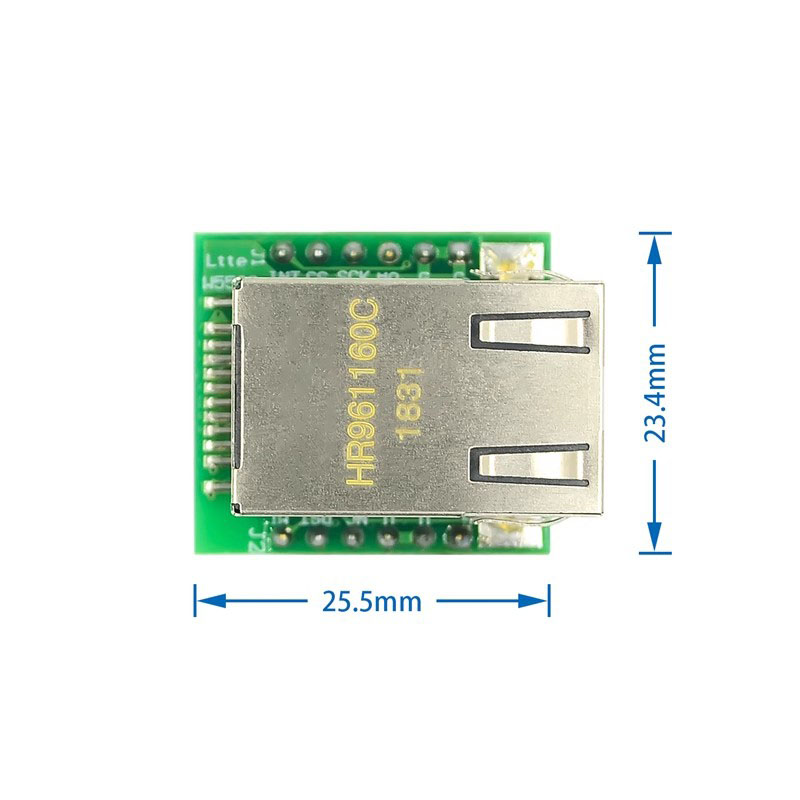

PCB size (MM): 23 * 25 mm
Mechanical dimensions (length * width * height): 28.5 * 23 * 24 mm
