XH-M214 Soil Moisture Controller Module Digital Display Flower Pot Digital Display Automatic WateringItem NO.: XH-M214
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M214 Soil Moisture Controller Module Digital Display Flower Pot Digital Display Automatic Watering
- Item NO.: XH-M214
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Digital Display , XH-M214 , Soil Moisture Controller Module
- Creation Time: 2024-03-25

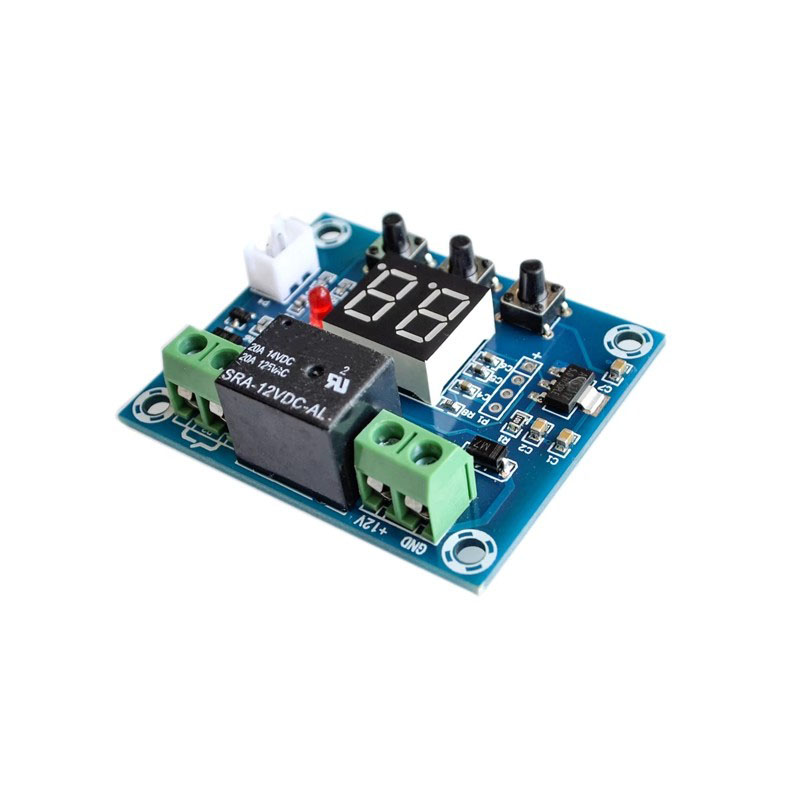

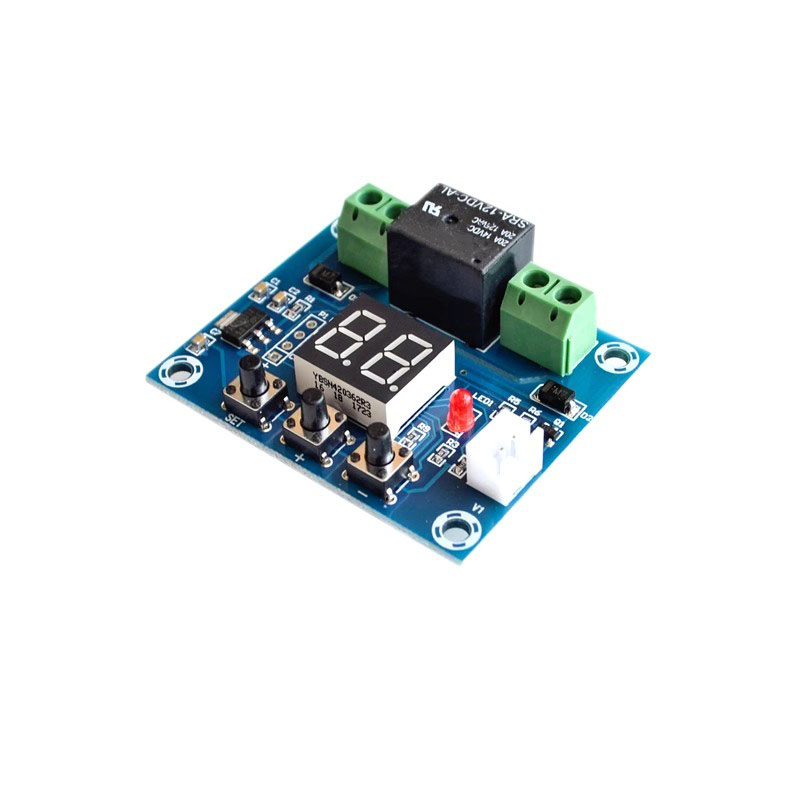

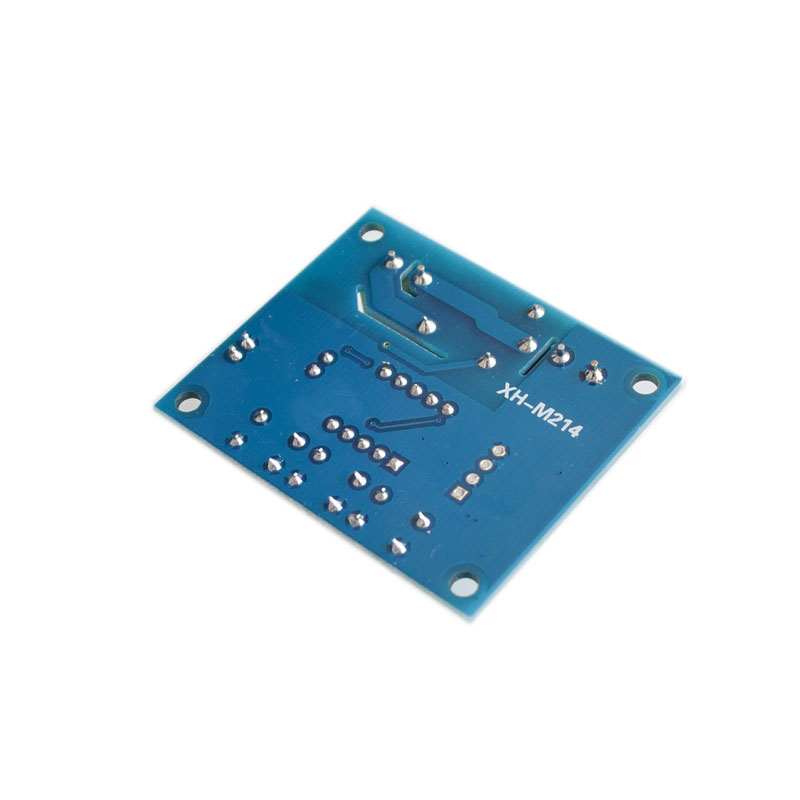

XH-M214 Soil Moisture Controller Module
Product Introduction:

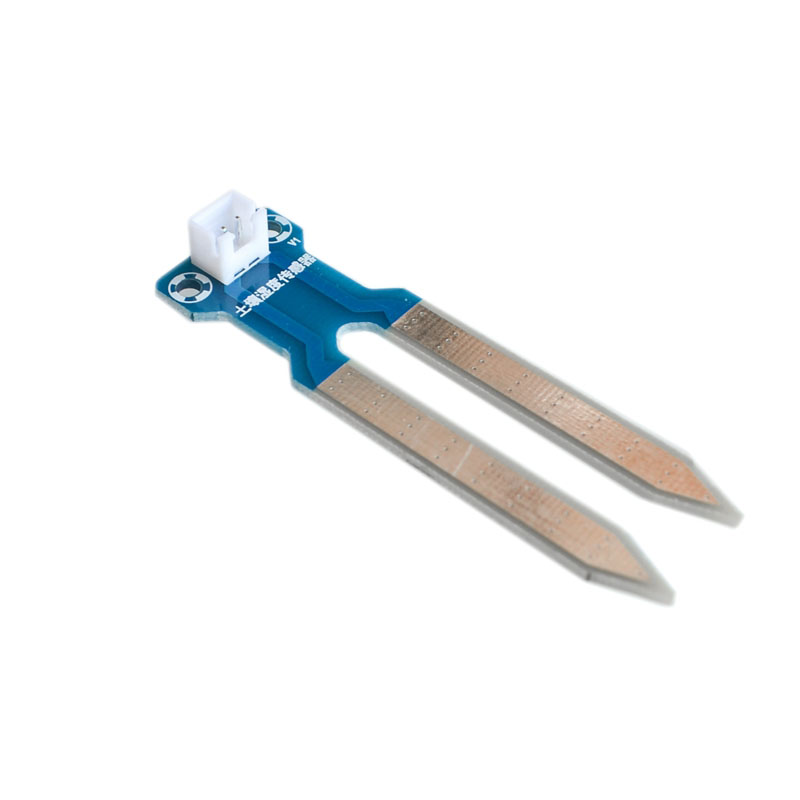

The probe can be directly inserted into the soil. This is a digital display of soil moisture. When the humidity is lower than the set value, start the pump to start watering, and stop watering when the humidity reaches the set value. The operation is very simple. This is intellectualization and humanization.
Product Parameters:
●Working voltage: DC 12V
●Control current: 0-10A
●Humidity range: 20-99% RH
●Control accuracy: 1% RH
●Size: 52 * 43 * 16mm
●Product weight: about 28g
Matters Needing Attention:
Please follow the indicated wiring diagram.
1. F0 setting stops humidity (the humidity of solenoid valve or water pump stops working)
Press the "SET" button to display "F0", press the "SET" button to display the start humidity, and press the+/buttons to "set" the humidity value
2. F1 set starting humidity (solenoid valve or pump humidity starting)
Press the+/- key to switch to "F1", press the "SET" key to display the stop humidity value, and press the+/key to set the humidity value
3. F2 humidity correction
There is no need to correct errors during normal use. Using multiple modules to correct the values at the same time is conducive to unified management and operation.
