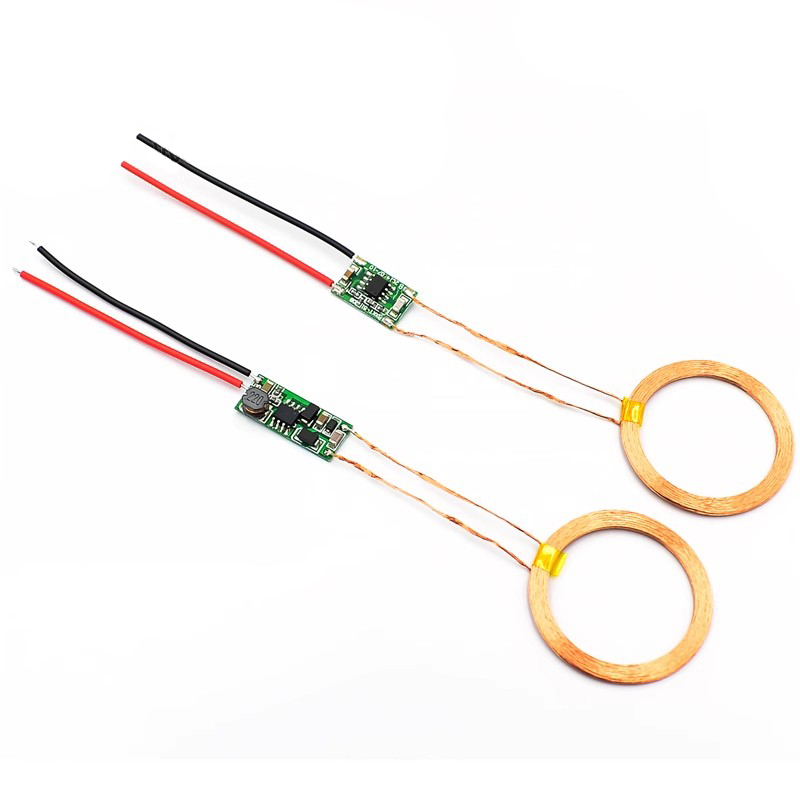

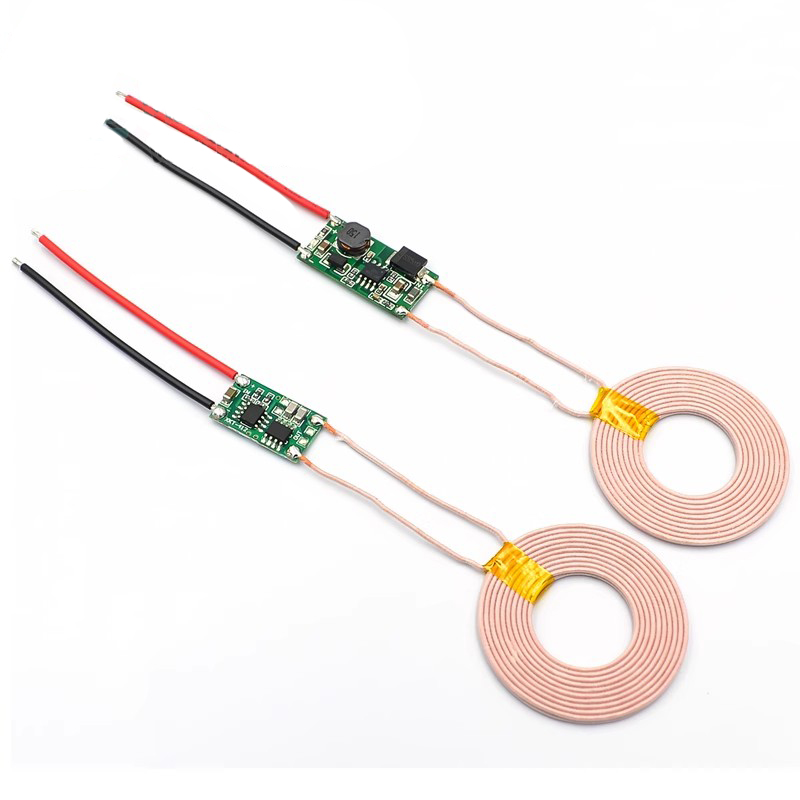

5V1A/5V2A Wireless Power Supply Module Wireless Charging Transmission And Reception Terminal Circuit BoardItem NO.: 5V1A5V2A

5V1A/5V2A Wireless Power Supply Module

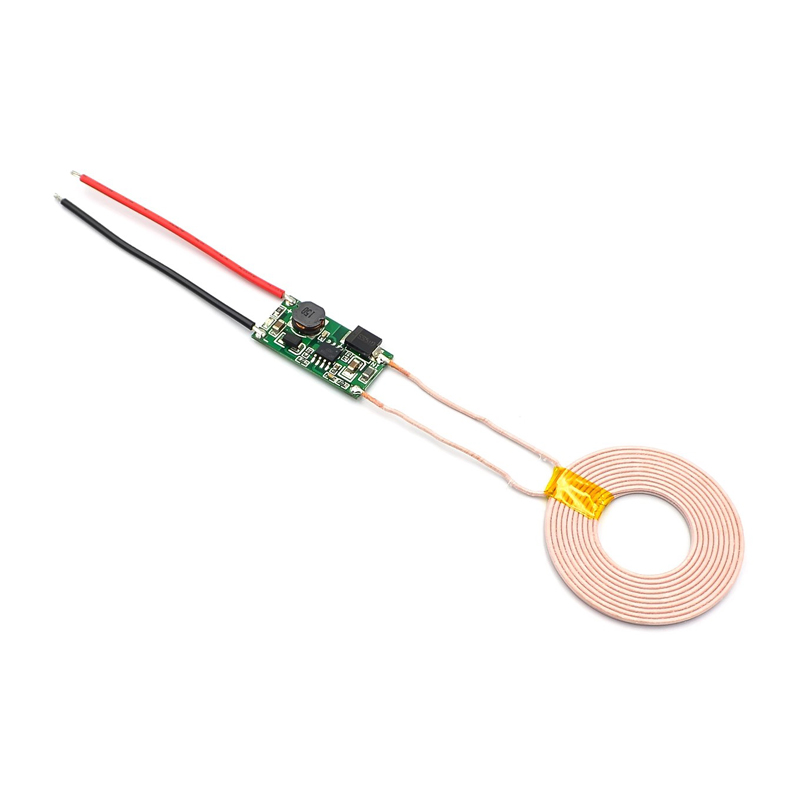

5V2A wireless charging module:

Instructions for use:

This product is developed and designed for wireless charging and power supply of various series of small electronic products. It has the characteristics of small size, extremely easy to use, high efficiency, and low price. It is mainly suitable for mobile electronic products such as mobile phones, game consoles, fish tanks, MP3, MP4, adult products, digital cameras, electric shavers, learning machines, medical, underwater products, and other product applications; Due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof; Increase the service life of the product and make it more convenient to use

Main parameters of the module:

Input voltage: 9-12V

Load current: 1.3A

Received output voltage and current: 5V/2A, 12V/700mA

Transmission coil size: outer diameter 43mm, thickness 2.3mm

Transmission module size: 18mm * 8.5mm * 15mm

Receiver module size: 10mm * 25mm * 3mm

Receiving coil size: outer diameter 43mm, thickness 1.2mm

Receiving distance: 3-6mm

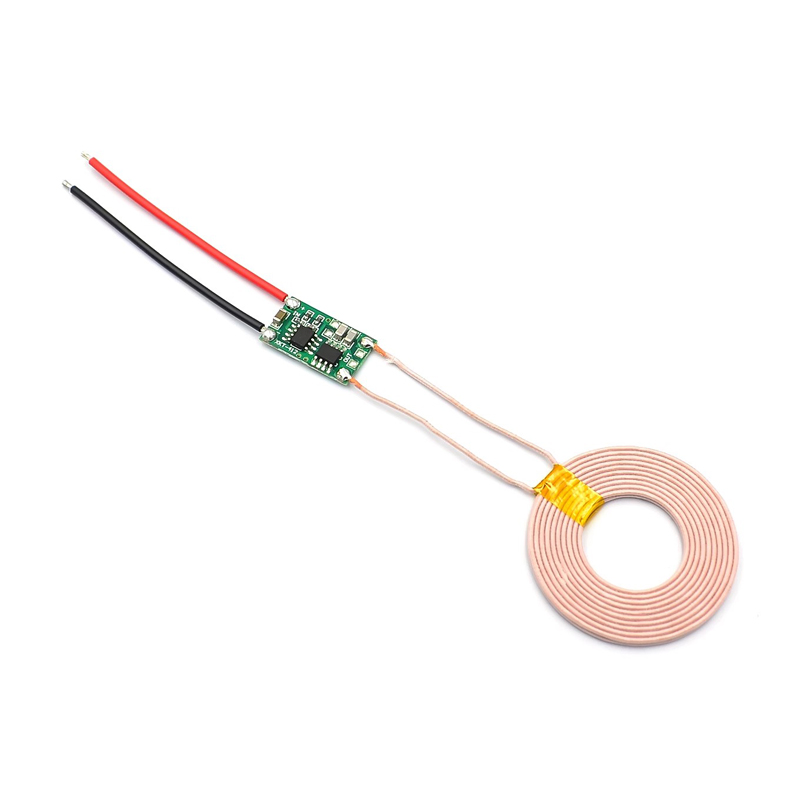

5V1A wireless charging module:

Special instructions: Before use, please distinguish the wiring between the transmitting end and the receiving end according to the icon. Do not reverse the wiring, and do not directly contact the two coils with a spacing between 1-20mm. A 12V battery cannot be directly used for power supply. The nominal voltage of the battery is 12V, and the normal fully charged output can reach 12.8-13.5V. It is necessary to add a voltage regulator module before use. For wireless charging, the input must be greater than the output. If the output is 10W, the input must be at least 10 * 1.30W. If the power supply is switched to wireless charging, there may be power loss
