- Product Name: Single String 18650 Lithium Battery Protection Board 12A 3.2/3.7V Anti Overcharge Over Discharge Current Short Circuit
- Item NO.: 1865012A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 18650 , Lithium Battery Protection Board , Short Circuit , 12A , Single String , 3.2/3.7V , Anti Overcharge , Over Discharge Current
- Creation Time: 2024-03-24
Single String 18650 Lithium Battery Protection Board

Technical parameters:

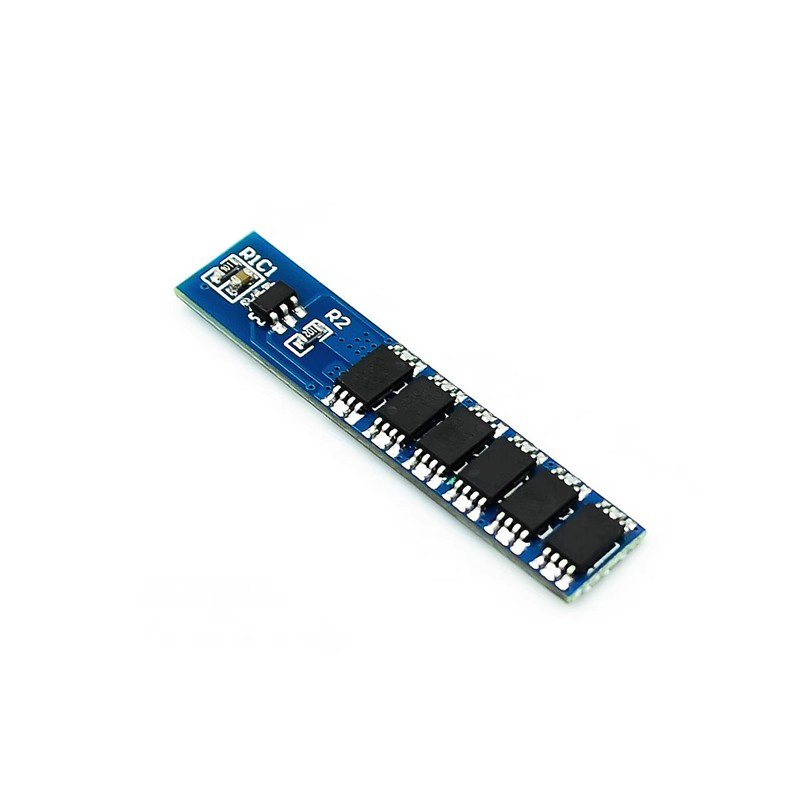

3.7V lithium battery protection board 6MOS:

Overcharge detection voltage: 4.25 ± 0.05V

Overcharge release voltage: 4.23 ± 0.05V

Overdischarge detection voltage: 2.45 ± 0.1V

Upper limit continuous current: 12A

Overcurrent detection current: 15A

Charging voltage: 4.2V

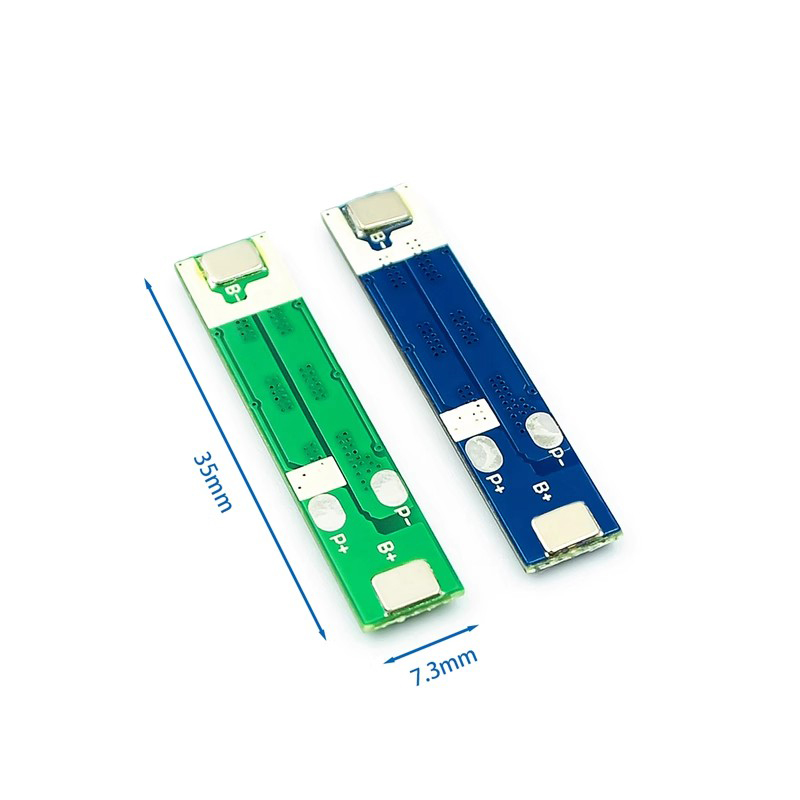

Product size: 35 * 7.4 * 2.2MM

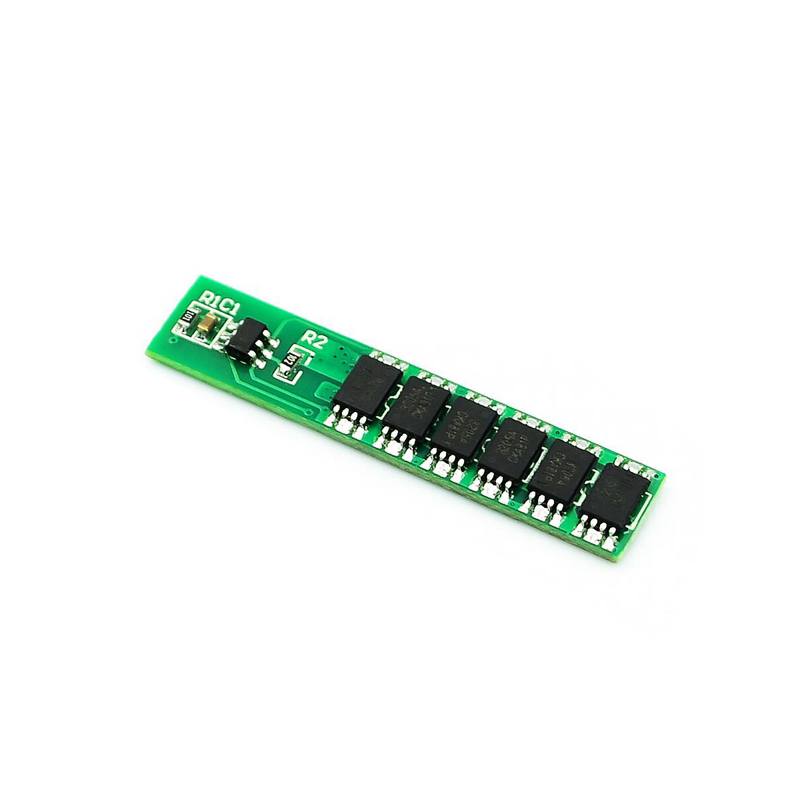

IC component: DW01+8205A

3.2V lithium iron phosphate battery protection board 6MOS:

Overcharge detection voltage: 3.75 ± 0.05V

Overcharge release voltage: 3.75 ± 0.05V

Overdischarge detection voltage: 2.1V ± 0.1V

Upper limit continuous current: 12A

Overcurrent detection current: 15A

Charging voltage: 3.6V

Product size: 35 * 7.4 * 2.2MM

IC component: DW01+8205A

Main functions:

Overcharge protection, over discharge protection, short circuit protection, over current protection

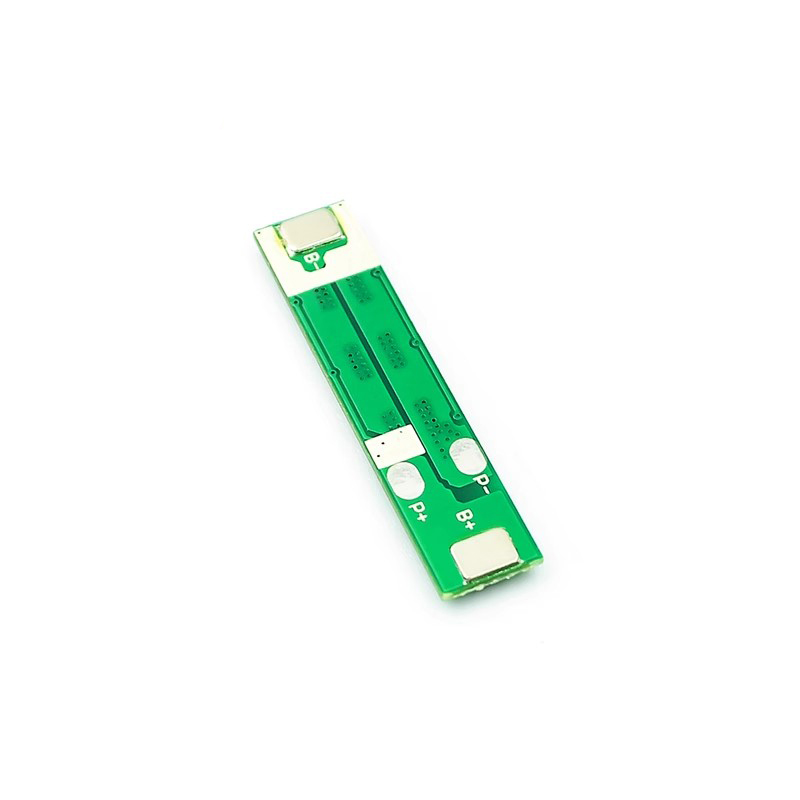

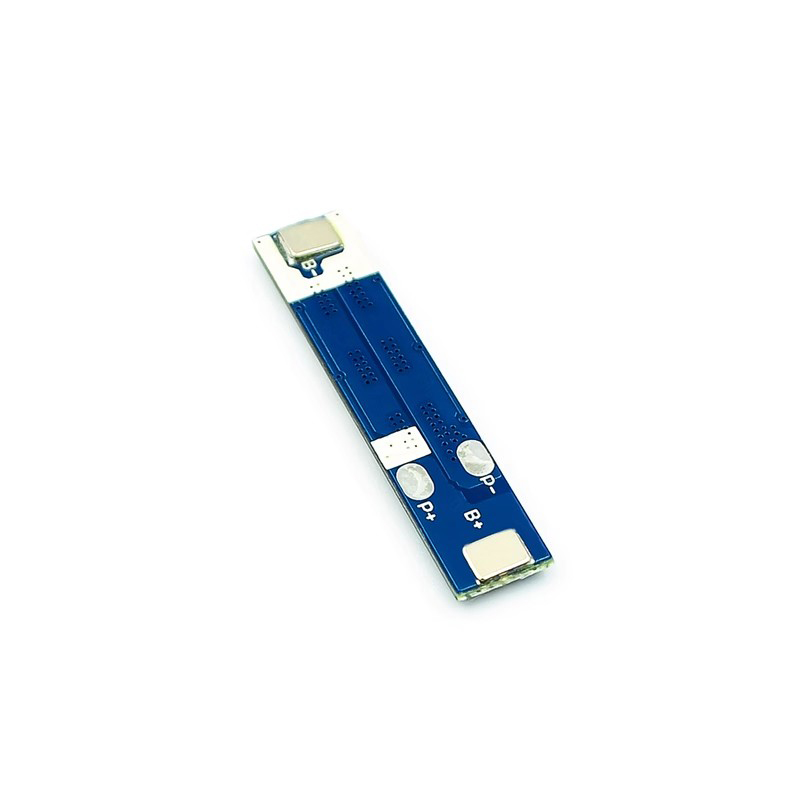

Wiring instructions:

3.2V and 3.7V wiring methods are consistent

B+is connected to the positive pole of the battery.

B - Connect to the negative electrode of the battery.

P+is the output and input positive pole of the battery pack

P - is the output and input negative pole of the battery pack
