Home>Electronic Modules>Power Module>XH-M229 Desktop Chassis Power Supply ATX Adapter Board Power Take-off Board Lead-out Module Power Output Terminal

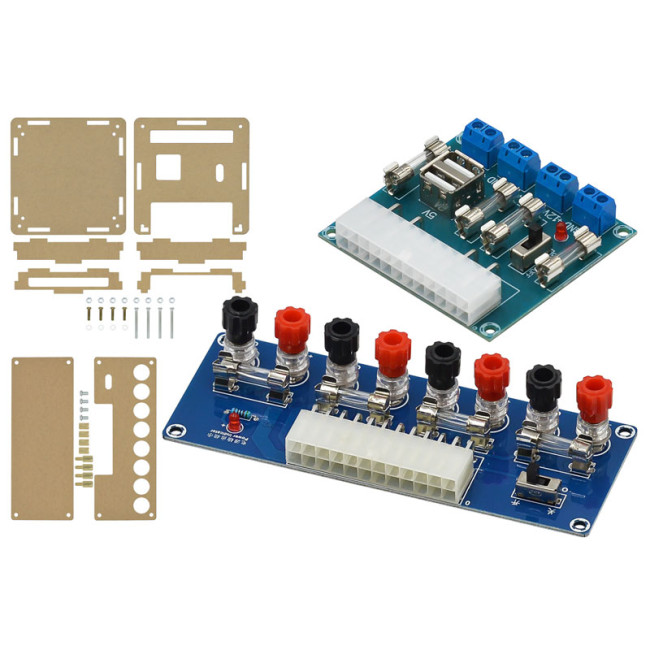

XH-M229 Desktop Chassis Power Supply ATX Adapter Board Power Take-off Board Lead-out Module Power Output Terminal

XH-M229 Desktop Chassis Power Supply ATX Adapter Board Power Take-off Board Lead-out Module Power Output TerminalItem NO.: XH-M229

US$ 4.31
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
XH-M229 Desktop Chassis Power Supply ATX Adapter Board Power Take-off Board Lead-out Module Power Output Terminal
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

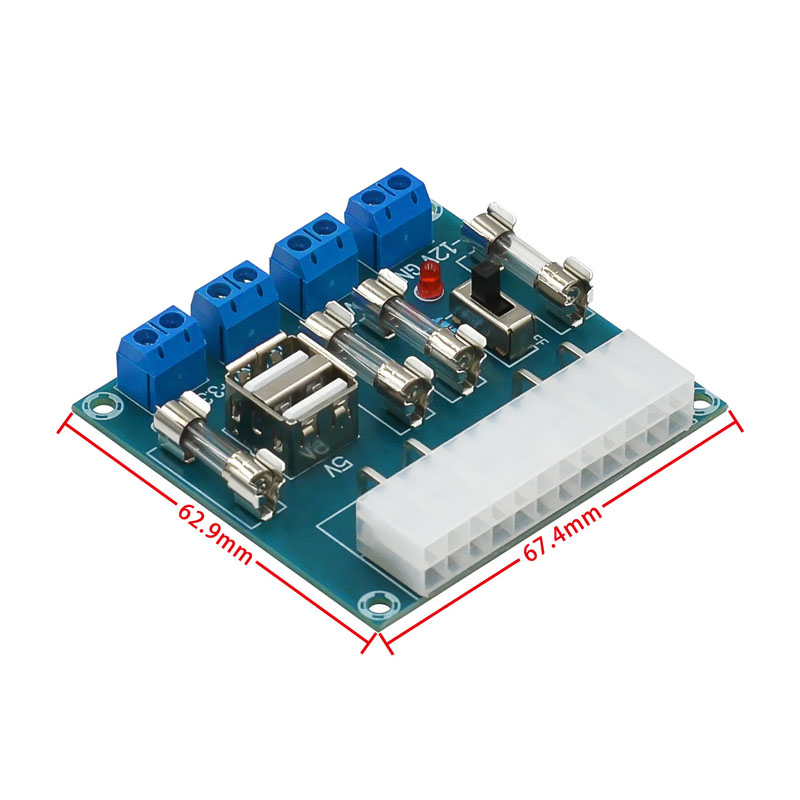

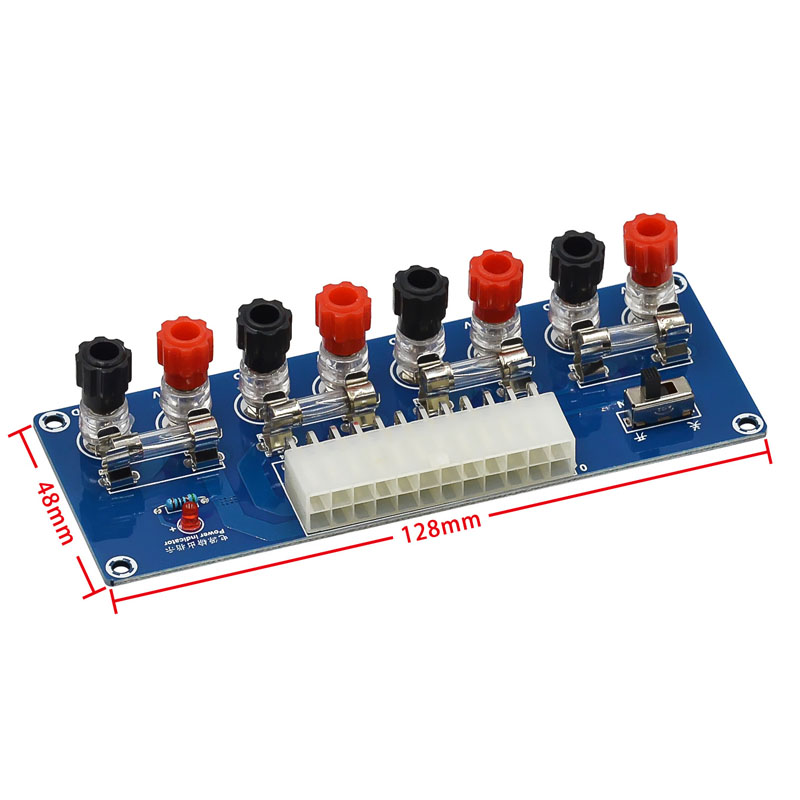

  • XH-M229 Desktop Chassis Power Supply ATX Adapter Board



    Product Information:



    ● Please note that if the power supply is a 20PIN port, the socket should be inserted from the dot mark on the circuit board when it is not a 24PIN port.

    ● Compatible port: ATX (compatible with some BTX types)

    ● Number of PINs: 24PINs

    ● Number of output groups: four groups with different voltages

    ● Switch: Yes

    ● Description of voltage at each terminal:

    -12V for GND, GND is the positive pole, -12V is the negative pole, and the voltage is DC12V

    +12V for GND,+12V is the positive pole, GND is the negative pole, and the voltage is DC12V

    +12V to -12V,+12V is the positive pole, -12 is the negative pole, and the voltage is DC24V

    +5V for GND,+5V is the positive pole, GND is the negative pole, and the voltage is DC5V

    +3.3V for GND,+3.3V is the positive pole, GND is the negative pole, and the voltage is DC3.3V

    -It is not recommended to carry a high current load on the 12V terminal. It only provides a logical potential to the motherboard, usually with a current of About 300MA
