XH-M600 Battery Charger Protection Switch Battery Charging Control Module Overcharge Protection Board 30AItem NO.: XH-M600
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M600 Battery Charger Protection Switch Battery Charging Control Module Overcharge Protection Board 30A
- Item NO.: XH-M600
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 30A , XH-M600 , Battery Charger Protection Switch , Battery Charging Control Module Overcharge Protection Board
- Creation Time: 2024-05-13

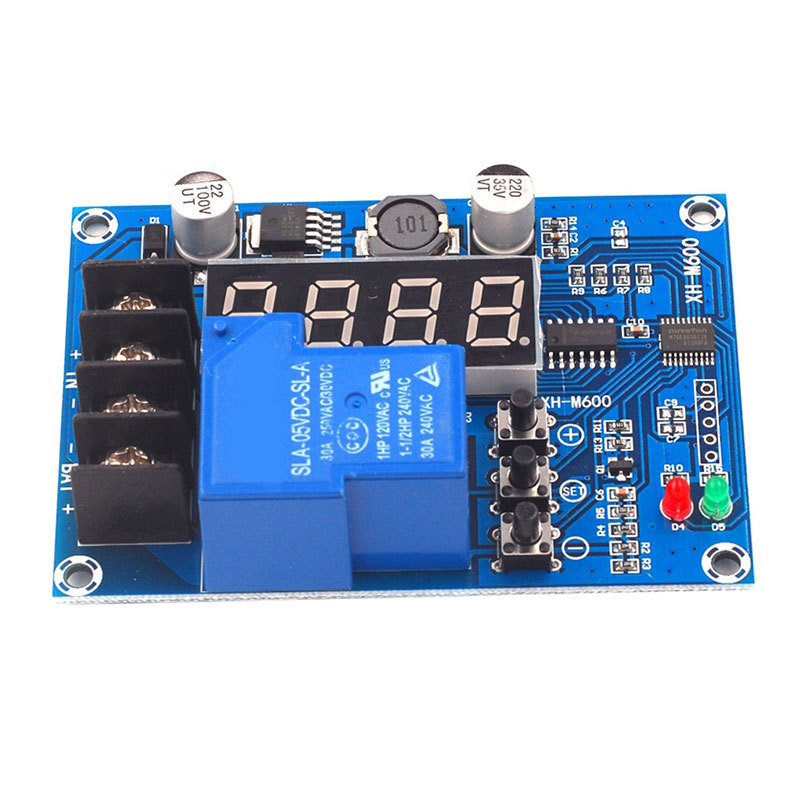

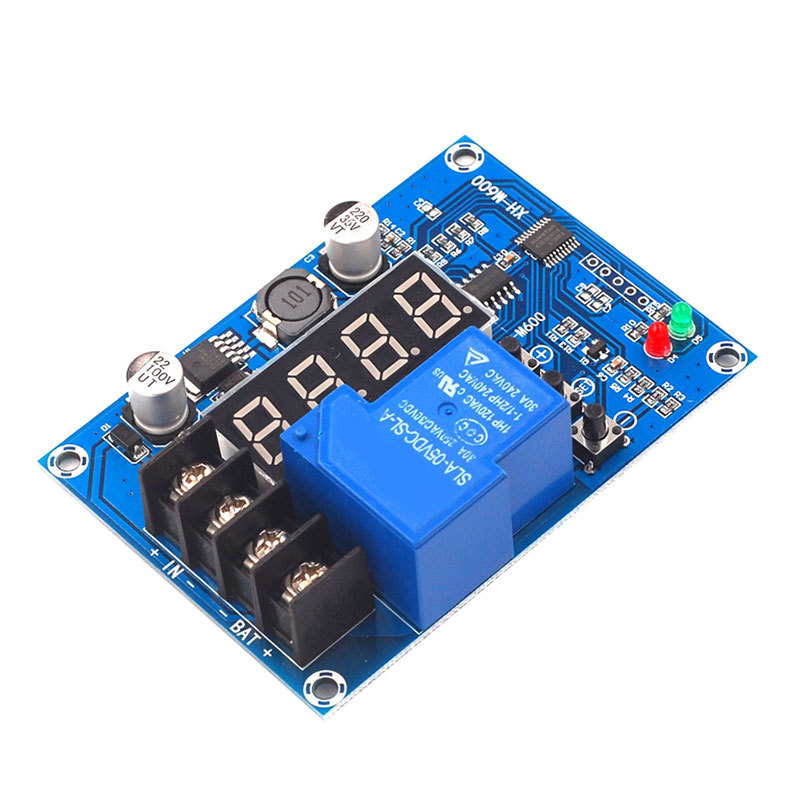

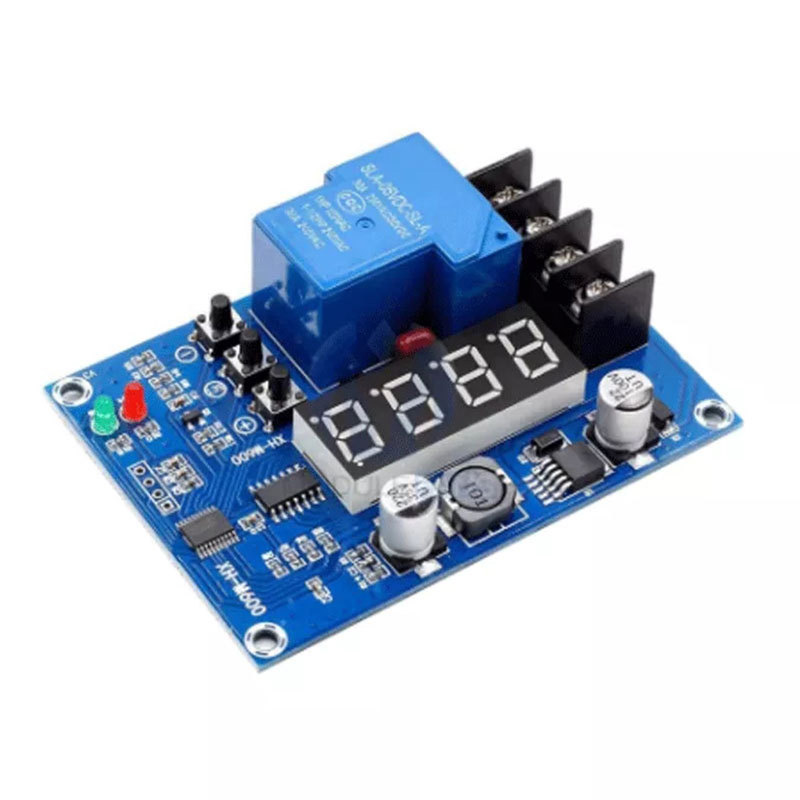

XH-M600 Battery Charger Protection Switch
Product Description:
1. Model: XH-M600
2. Control voltage: DC 6-60V
3. Control current: ≤30A
4. Control accuracy: 0.1V
5. Output type: direct output
6. Voltage tolerance: ± 0.1V
7. Application field: 6-60V battery lithium battery

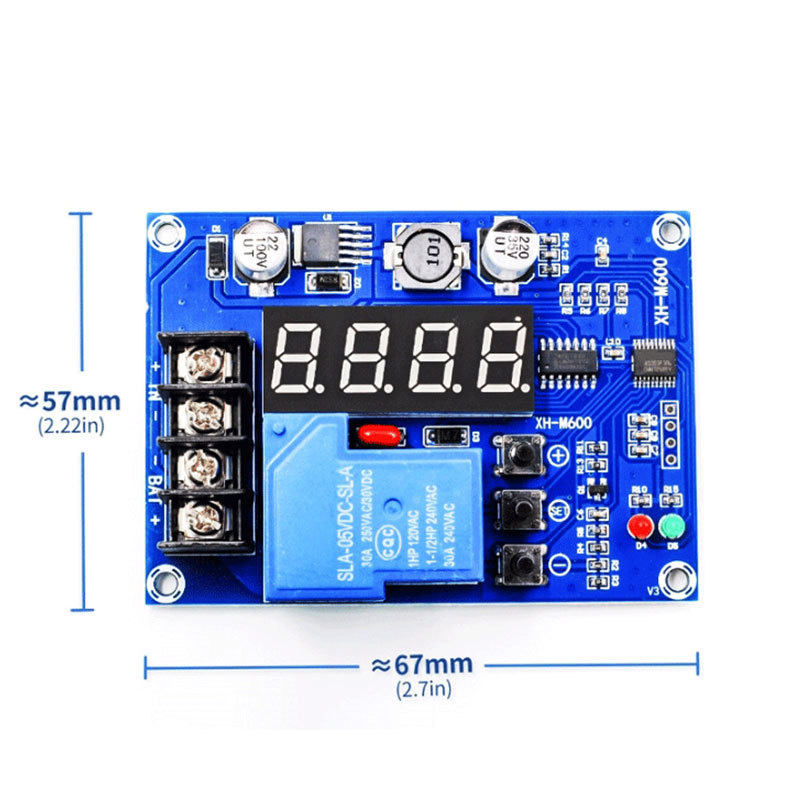

8. Size: 84*60mm
Instructions:
1: Connect the battery (if not, it will not be displayed)
2: Press "+" to display the upper limit voltage, long press will flash, and then set the upper limit voltage (H)
3: Press "-" to display the lower limit voltage, long press will flash, and then set the lower limit voltage (L)
4: Connect the charger
5: You can press the settings to turn off the display to save power
