XH-W1209 Digital Display Temperature Controller High Precision Micro Temperature Control Switch Board DC12VItem NO.: XH-W1209
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-W1209 Digital Display Temperature Controller High Precision Micro Temperature Control Switch Board DC12V
- Item NO.: XH-W1209
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: High Precision , XH-W1209 , Digital Display Temperature Controller , Micro Temperature Control Switch , DC12V
- Creation Time: 2024-03-25

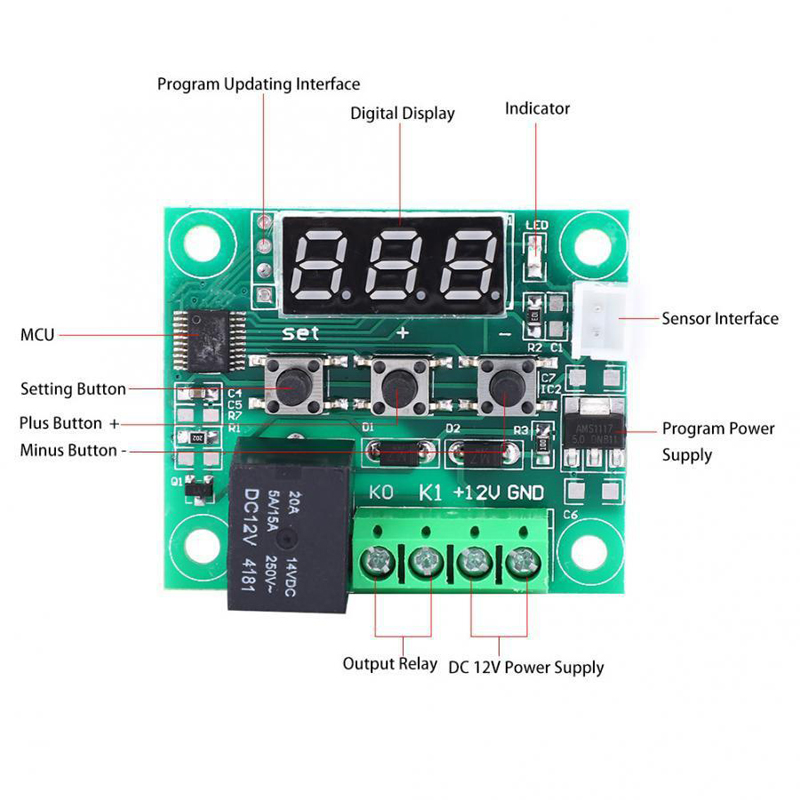

XH-W1209 Digital Display Temperature Controller
Product Features:
1. Fully machine mounted, wave soldering, stable performance, and good consistency
2. Embedded processor chip (MCU), more intelligent, lower power consumption
3. Power off setting automatic memory (MCU built-in EEPROM storage unit)
4. Control accuracy 0.1 degrees Celsius
5. Set from 0.1 to control decimals (0.1-15.0)
Technical Parameters:
● Temperature control range: -50~110 ℃
● Resolution: 0.1 ℃ at -9.9~99.9, other temperature ranges 1 ℃
● Temperature measurement accuracy: 0.1 ℃
● Control accuracy: 0.1 ℃
● Return error accuracy: 0.1 ℃
● Refresh frequency: 0.5 S
● Input power supply: DC 12V

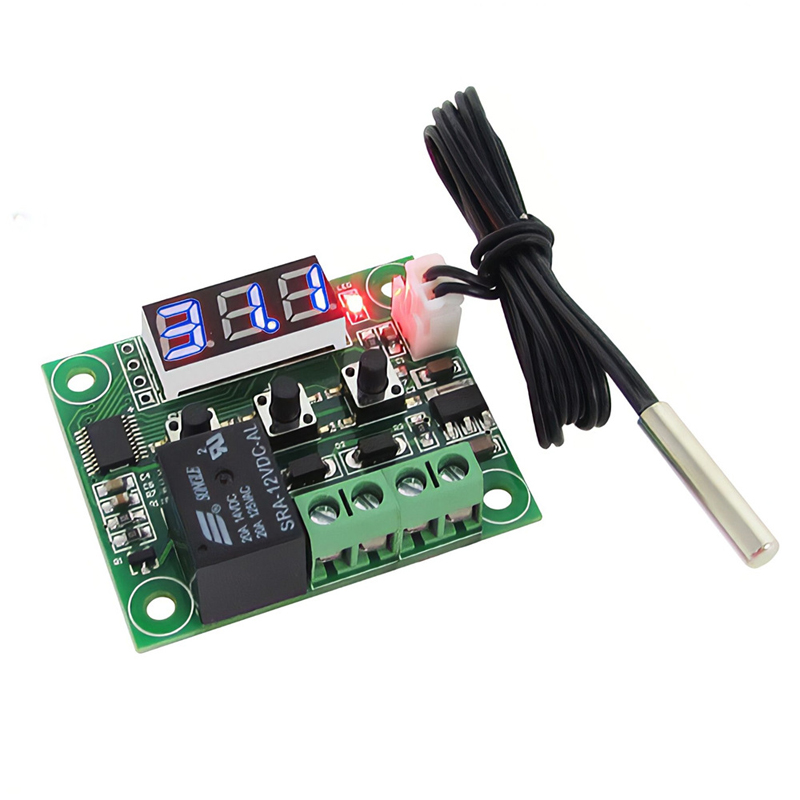

● Measurement input: NTC (10K 0.5%) waterproof sensor

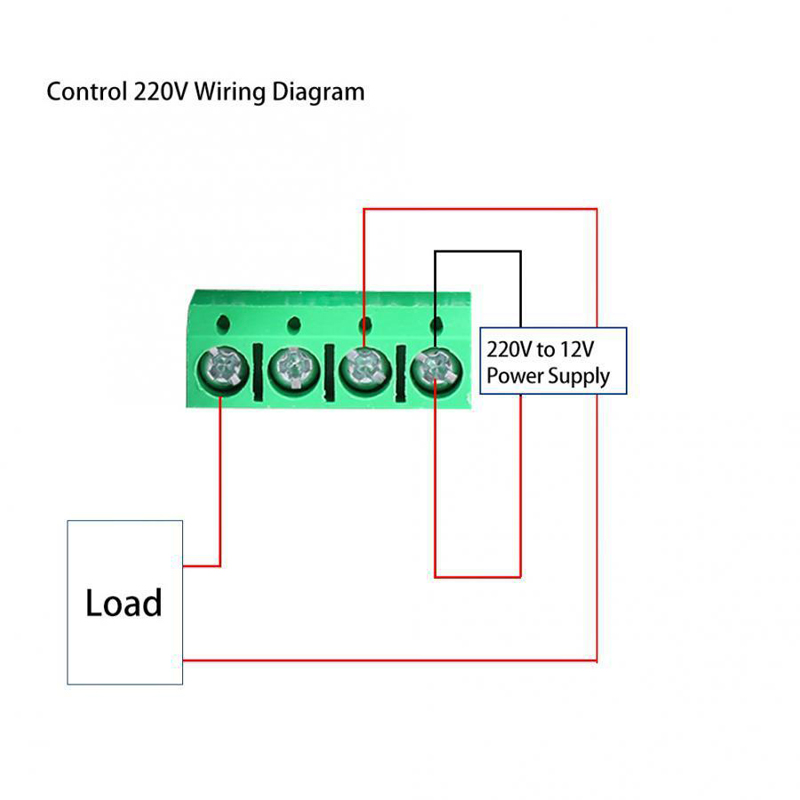

● Output: 1 relay output, capacity=20A 125VAC, 20A 14VDC
● Environmental requirements: -10~60 ℃, humidity 20% -85%
● Specification and size: 48.5 * 40mm
● Overall power consumption: Static current: ≤ 10MA Pickup current: ≤ 65MA
