Home>Electronic Modules>Sensor Module>YZC131 Kitchen Scale Electronic Scale Portable Jewelry Scale Micro Weighing Sensor 1KG 5KG 10KG 20KG
YZC131 Kitchen Scale Electronic Scale Portable Jewelry Scale Micro Weighing Sensor 1KG 5KG 10KG 20KGItem NO.: YZC131
US$ 4.46
-
Customized Requirements
- Quantity
-
Adding to cart succeed
YZC131 Kitchen Scale Electronic Scale Portable Jewelry Scale Micro Weighing Sensor 1KG 5KG 10KG 20KG
color:red,size:xxl
Subtotal: US$ 0
View My Cart
-
- Product Name: YZC131 Kitchen Scale Electronic Scale Portable Jewelry Scale Micro Weighing Sensor 1KG 5KG 10KG 20KG
- Item NO.: YZC131
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: YZC131 , Electronic Scale , Portable Jewelry Scale , Micro Weighing Sensor , 1KG , 5KG , 10KG , 20KG
- Creation Time: 2024-04-12

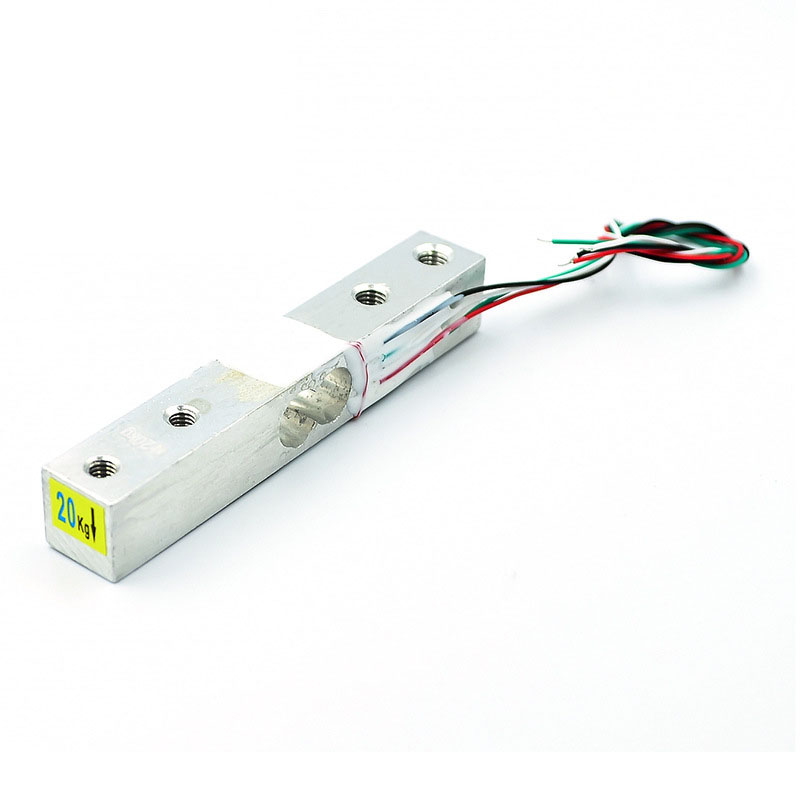

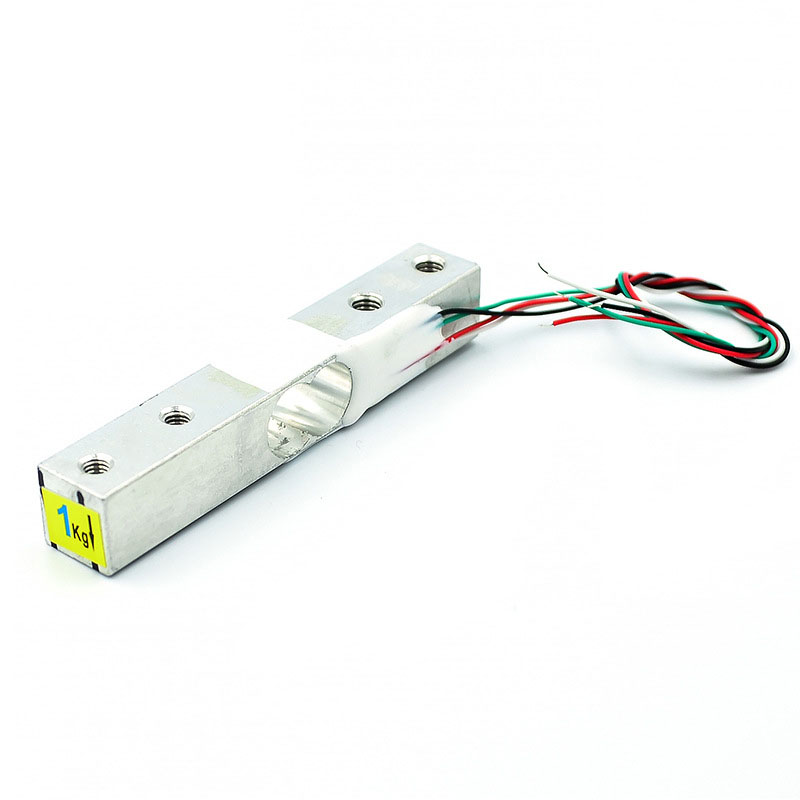

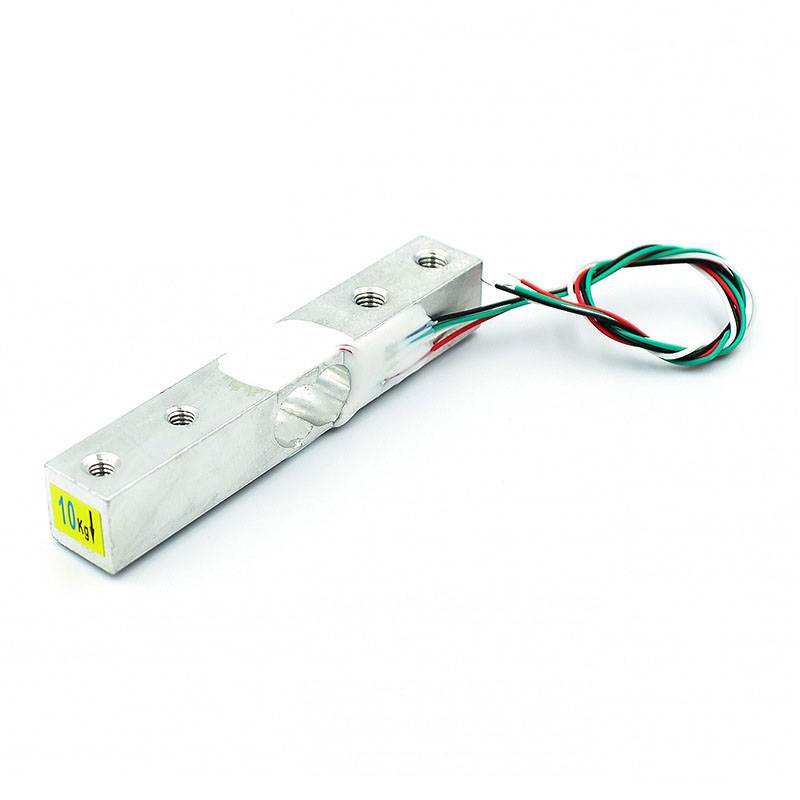

YZC131 Miniature Load Cell
Product Information:
● 5KG, 10KG, 20KG size: 12.7mm * 12.7mm * 75mm
● 1KG size: 12.7mm * 12.7mm * 80mm
● Weight: 38g
● Wiring mode:
Red: power supply+,
Black: power supply -,
Green: output signal+,
White: output signal-
One end of the sensor is fixed through the screw hole, and the other end is suspended. Apply gravity in the direction indicated by the label In particular, do not directly press the white adhesive part to avoid damaging the sensor
