0.28-inch Small Digital Display DC Voltage Meter with 2-wires DC2.5-40V Adjustable Reverse Connection Protection

0.28-inch Small Digital Display DC Voltage Meter with 2-wires DC2.5-40V Adjustable Reverse Connection ProtectionItem NO.: 2-wire 0.28inch

US$ 2.86
Model
Red
Blue
Green
Yellow
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
0.28-inch Small Digital Display DC Voltage Meter with 2-wires DC2.5-40V Adjustable Reverse Connection Protection
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

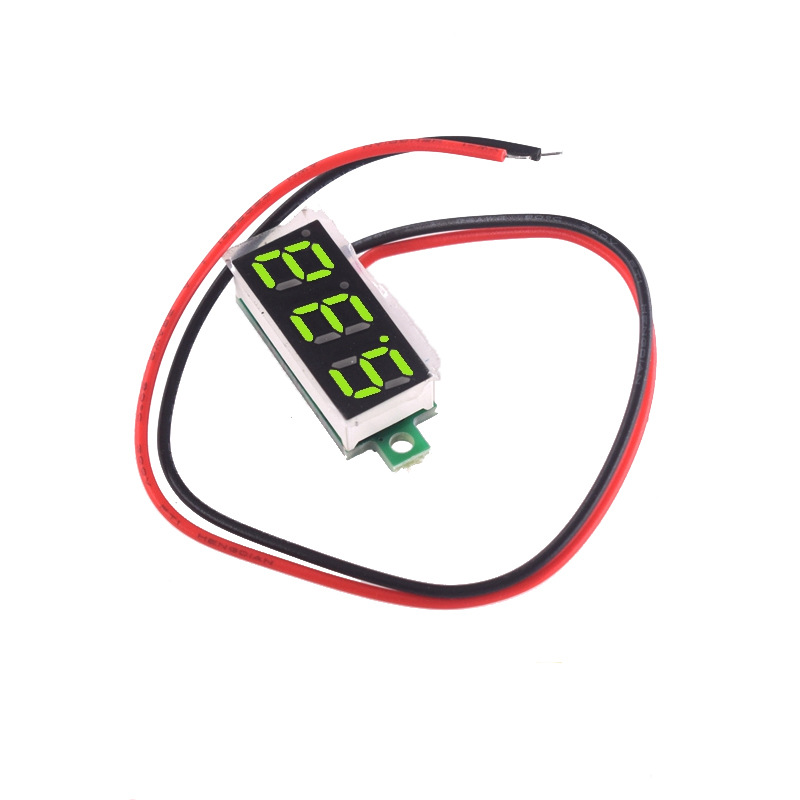

  • 0.28-inch 2-wire Voltmeter Head





    Two wires, easy and simple to connect, convenient for connecting to the wiring inside cars/electric scooters/motorcycles, with reverse connection protection function, the wire will not be burned when connected in reverse, and has fine adjustment function;



    Function Introduction:

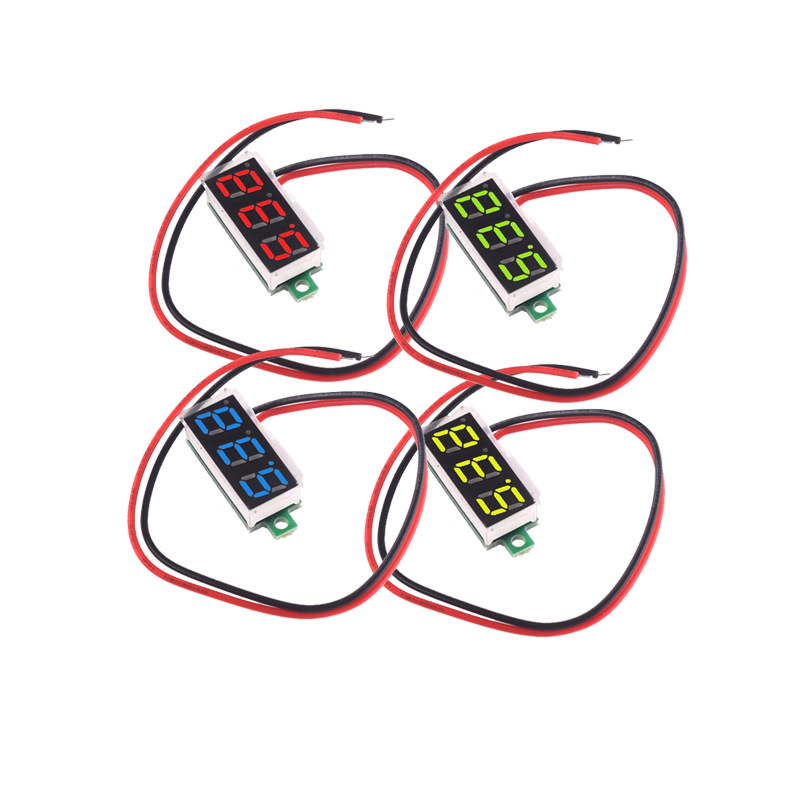

    1. Range: 2.5-40V (red) 2.6-40V (yellow) 2.6-40V (green) 3.2-40V (blue)

    2. Equipped with two wires, the wiring is convenient and simple, making it easy to connect to the wiring inside cars/electric scooters/motorcycles;

    3. It has reverse connection protection function, and the wire connection will not be burned when reversed, with fine adjustment function;

    4. Please note that the input voltage should not exceed 40V, otherwise there is a risk of burning.

    When the voltage is below 3.0V, the display brightness will dim, but it does not affect the correct measurement

    When measuring voltages below 10V, display two decimal places after the decimal point; When measuring voltages above 10V, display one decimal place after the decimal point. It can meet both the measurement accuracy needs of battery users and the need to measure higher voltages.



    Working voltage: DC2.4-40V (with reverse protection function)

    Detection voltage: DC2.4-40V

    Working current:<30mA

    Display method: 0.28 "LED, red, blue, green, and yellow (color optional)

    Measurement rate: ≥ 200MS/time

    Measurement accuracy: 3 ‰

    Restricted working conditions

    Low operating voltage:+2.4V

    Working voltage:+40V

    Working temperature: -10~+65 ℃

    Working humidity: 10-80% (without condensation)

    Working pressure: 80-106kPa

    Sunshine exposure: no direct exposure



    Measurement accuracy, this voltmeter will automatically move the decimal point position according to the different measured voltages.

    When measuring voltages below 10V, display two decimal places after the decimal point;

    When measuring voltages greater than 10V, display one decimal place after the decimal point.

    It can meet both the measurement accuracy needs of battery users and the need to measure higher voltages.

    This voltmeter can be used to measure the voltage of 18650 batteries, lithium batteries for mobile phones, nickel hydrogen battery packs, and other battery packs, as well as the voltage of batteries for motorcycles, cars, and other purposes. It can also be used for other voltage measurement purposes
