0.96 inch 7-Pin OLED Display Screen OLED Module Compatible With SPI/IIC Blue/White/Yellow Blue Dual ColorsItem NO.: OLED0.96-7PIN
-
Customized Requirements
- Quantity
-
-
- Product Name: 0.96 inch 7-Pin OLED Display Screen OLED Module Compatible With SPI/IIC Blue/White/Yellow Blue Dual Colors
- Item NO.: OLED0.96-7PIN
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: OLED Module , OLED , 0.96 inch , Display Screen , 7-Pin , SPI/IIC
- Creation Time: 2024-03-27

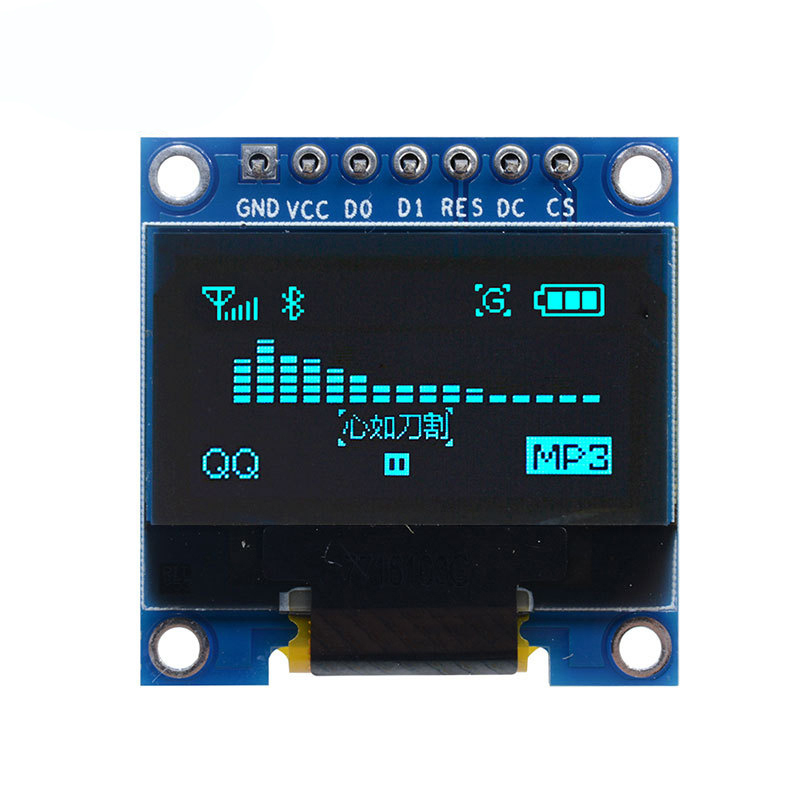

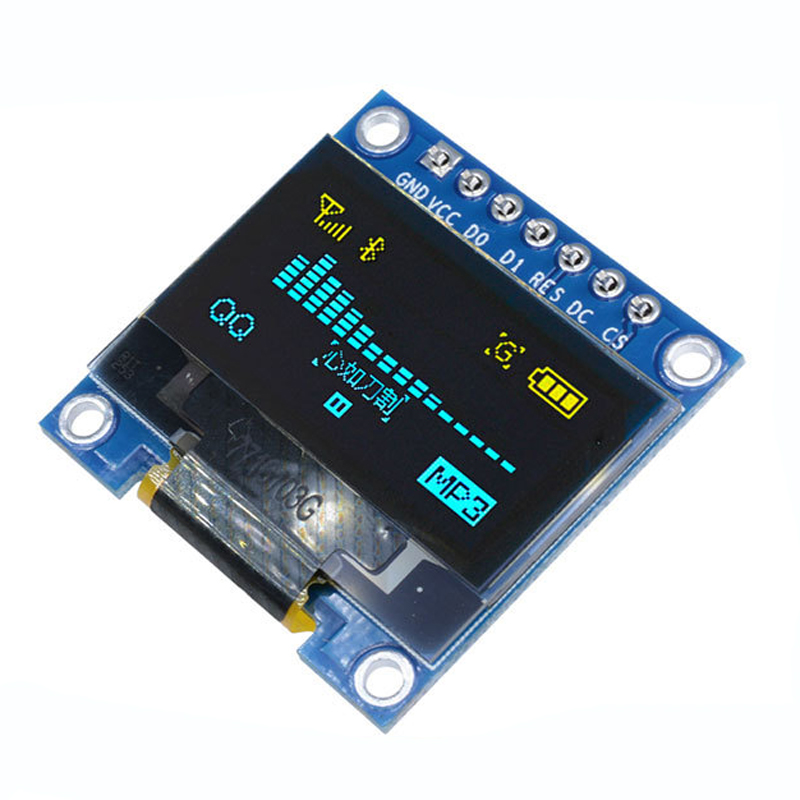

0.96 inch OLED Display Screen 7-Pin
Main Parameters:
1. High resolution; 128 * 64 (with the same resolution as 12864LCD, but the OLED screen has more pixels per unit area).
2. Wide viewing angle:>160 degrees.
3. Low power consumption: 0.04W during normal display.
4. Wide power supply range: DC 3.3V~5V
5. Industrial grade: Working temperature range: -30 ° C~70 ° C.
6. Small size: 29mm * 28mm
7. Communication method: IIC.
8. Brightness and contrast can be controlled through program instructions.
9. OLED screen internal driver chip: SSD1306

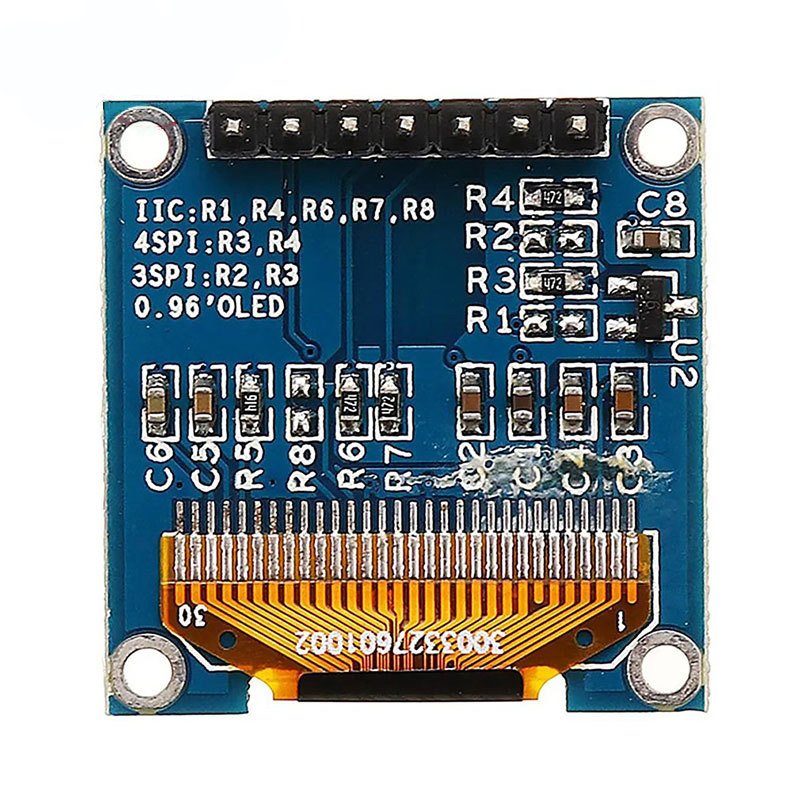

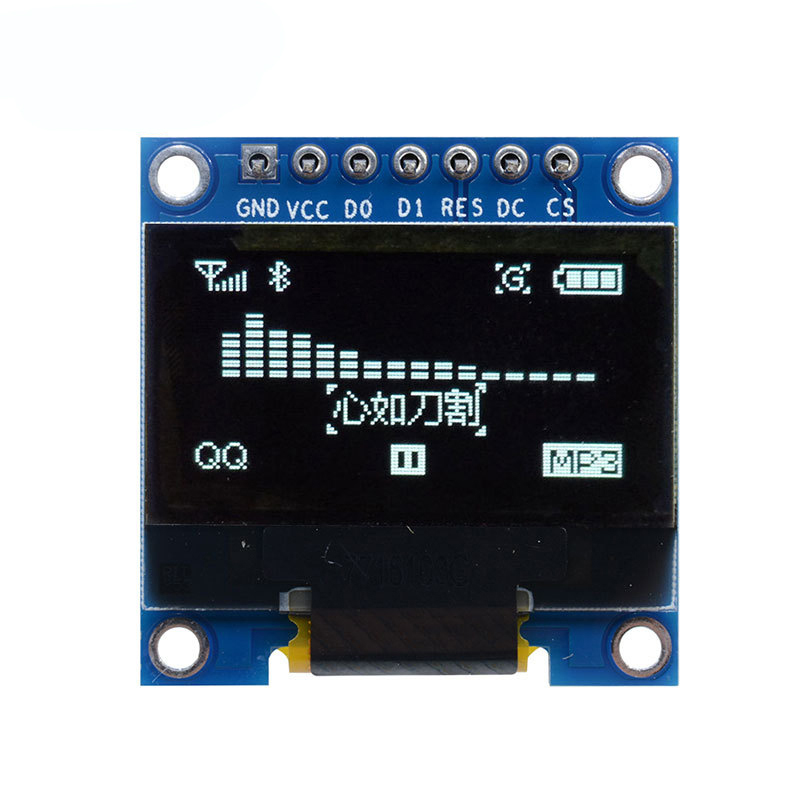

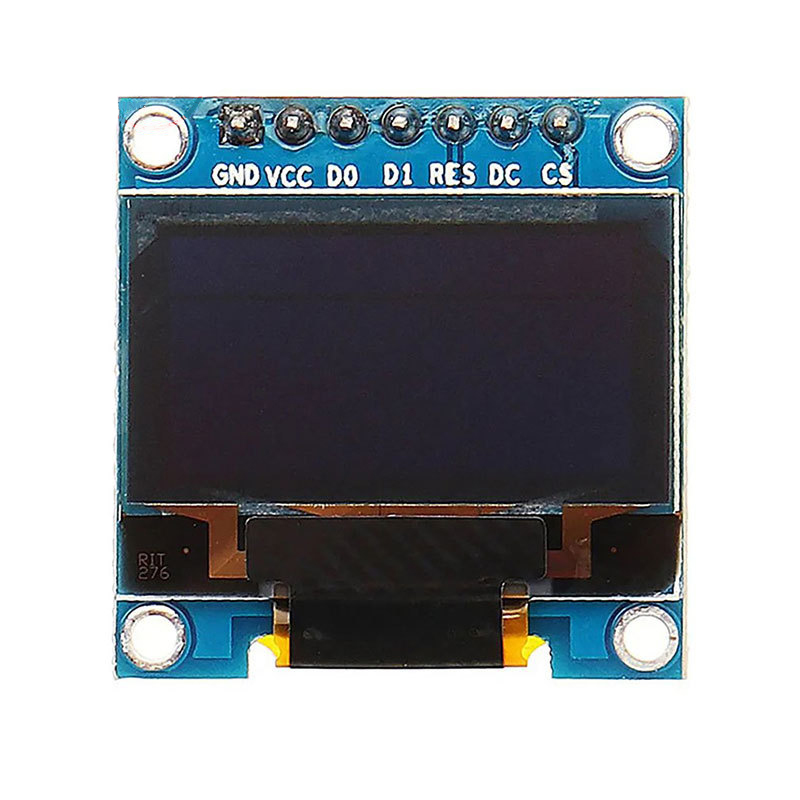

Pin Definition:
1. CS: Chip selection signal.
2. DC: Data or command switching.
3. RST: Reset.
4. D1: The SPI interface is an SPI data cable.
5. D0: The SPI interface is the SPI clock line.
6. VCC: Power supply positive 3.3V~5V.
7. GND: Negative power supply.
