4-Digit Digital Tube Display Module

Product Information:

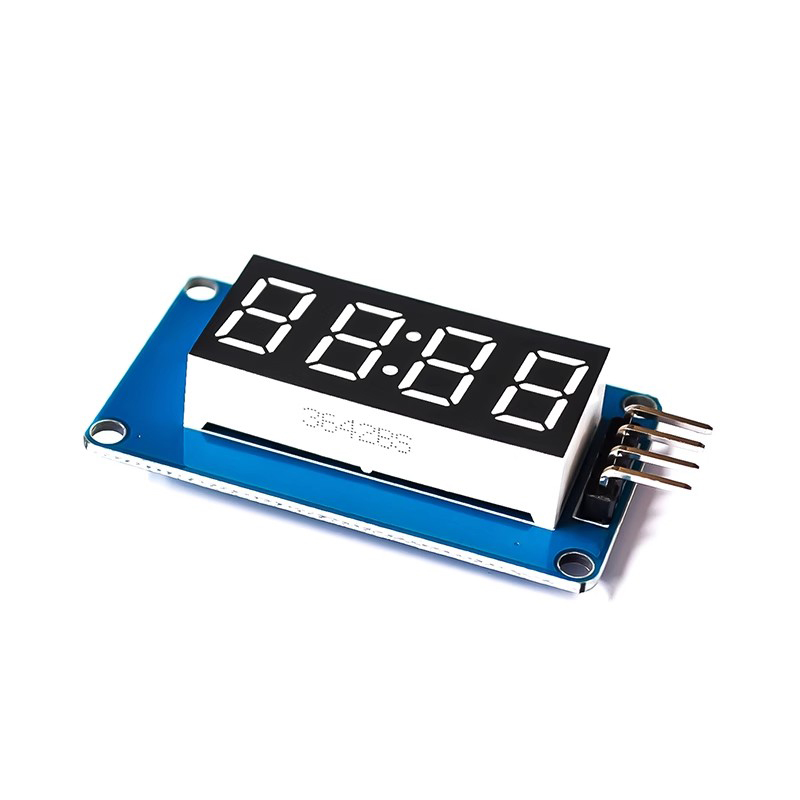

This module is a 12-pin display module of 4-bit co-positive nixie tube (0.36-inch) with time and clock. The drive chip is TM1637. Only two signal lines are needed to enable the single-chip microcomputer to control 4-bit 8-segment nixie tube.

Module Parameters:

● Power supply voltage: DC 3.3V~5.5V (typical value: 5V)

● Current (@ 5V): max. 80mA (typical value 30mA)

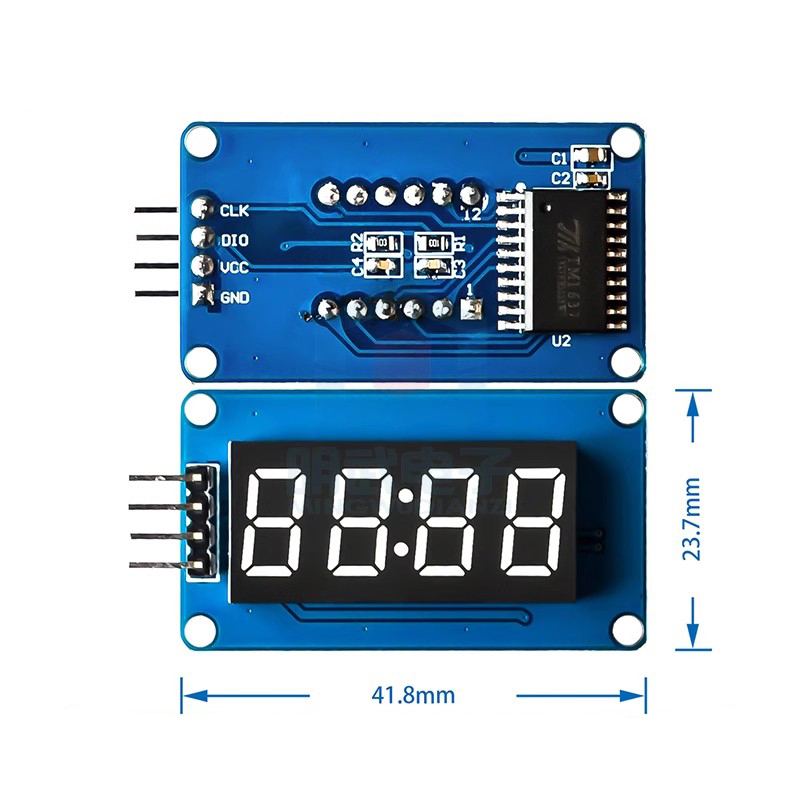

● Size: 42mm * 24mm * 12mm

● Weight: 8g

Module Features:

1. The display device is a 4-bit co-positive red-letter digital tube

2. Nixie tube 8-level gray adjustable

3. The control interface level can be 5V or 3.3V

4.4 M2 screw positioning holes for easy installation

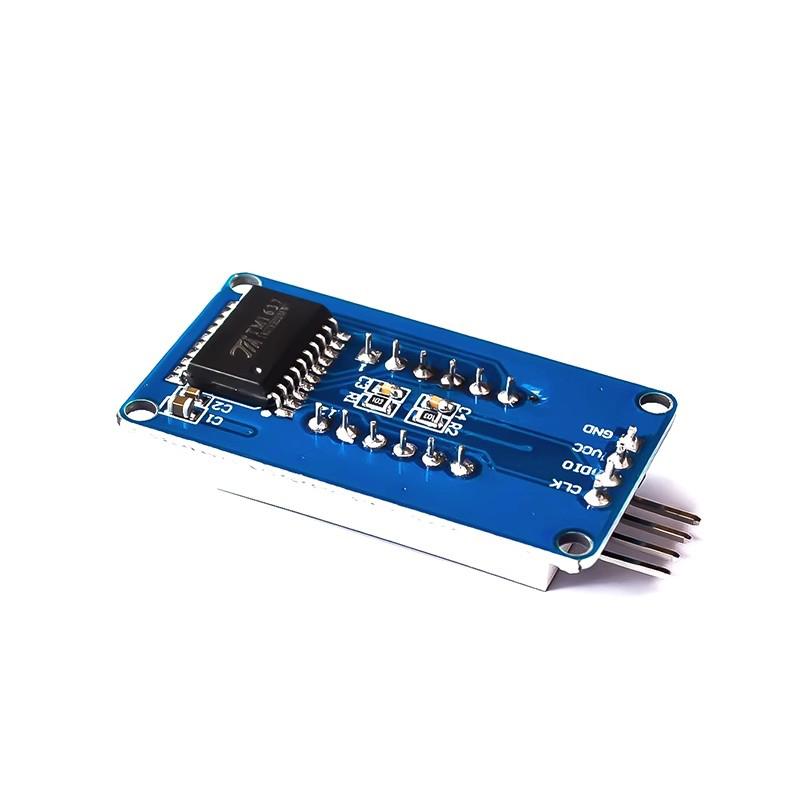

5. Control interface: 4 pins in total (GND, VCC, DIO, CLK), GND is ground, VCC is power supply, DIO is data input and output pin, CLK is clock signal pin;

6. Nixie tube: 0.36-inch nixie tube with 4 common anodes and dividing points, highlighted in red;

7. Positioning hole: 4 M2 screw positioning holes with a hole diameter of 2.2mm, which make the module easy to install and position, and realize the combination between modules;
