74HC595 Static Drive 2-Segment Digital Tube Display Module Seamlessly Connected In Series 0.5 Inch High Brightness RedItem NO.: 234Tubes-74HC595
-
Customized Requirements
- Quantity
-
-
- Product Name: 74HC595 Static Drive 2-Segment Digital Tube Display Module Seamlessly Connected In Series 0.5 Inch High Brightness Red
- Item NO.: 234Tubes-74HC595
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Display Module
- Tag: 74HC595 , Static Drive , 2-Segment Digital Tube Display Module , Seamlessly Connected , 0.5 Inch
- Creation Time: 2024-04-17
2/3/4-Bit Digital Tube Display Module 74HC595
Product Introduction:
1. The 2-way bright red nixie tube display module has four positioning screw holes for easy installation
2. Two patches 74HC595 are used for driving, and each section of nixie tube is charged with resistance and current limiting to ensure uniform brightness
3. Static drive, with the number unchanged, the microcontroller does not need to be constantly refreshed and non dynamic scanning, saving microcontroller system resources
4. Simple interface, VCC positive electrode, GND negative electrode, SDI data, shift clock SCLK, latch LOAD, only three wires are required to interface with the microcontroller, saving IO for the microcontroller
5. With data output, it is convenient to cascade. For example, four data tube modules (no matter how many bits) can be connected one by one, and the three wires of the first meter head can be connected to the microcontroller.
Module Size:

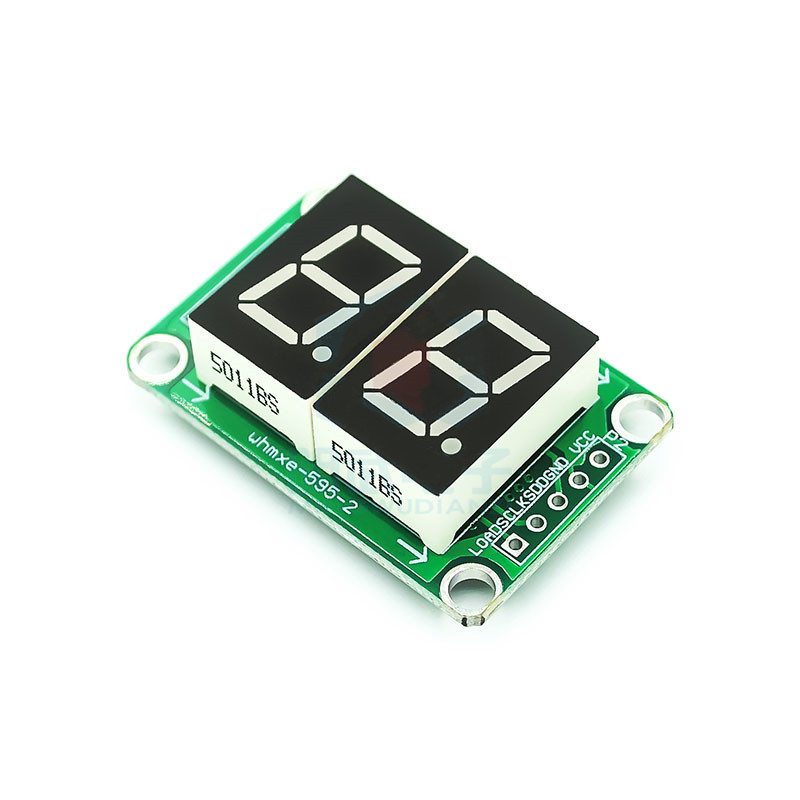

2 Digit size: 38.2mm * 25.6mm
3 Digit size: 51.8mm * 25.1mm

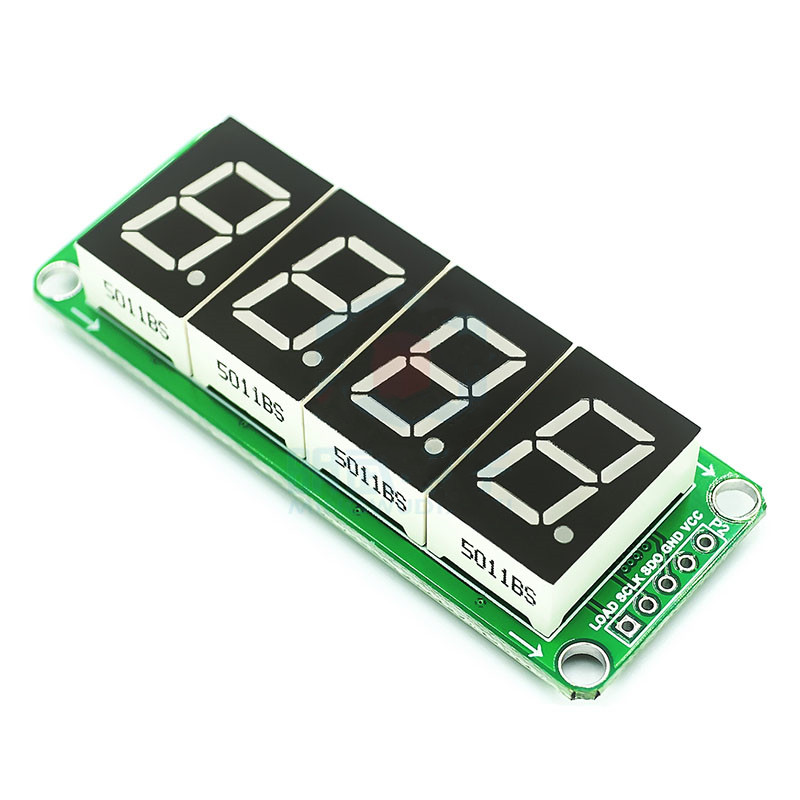

4 Digit size: 63.6mm * 25.2mm
