8-way 3.3V-5V 5V-3.3V IIC UART SPI TTL Bidirectional Level Conversion Module Bent PinItem NO.: 8way3.3V5V
-
Customized Requirements
- Quantity
-
-
- Product Name: 8-way 3.3V-5V 5V-3.3V IIC UART SPI TTL Bidirectional Level Conversion Module Bent Pin
- Item NO.: 8way3.3V5V
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: 8-way , 3.3V-5V , 5V-3.3V , Bidirectional Level Conversion Module
- Creation Time: 2024-04-16

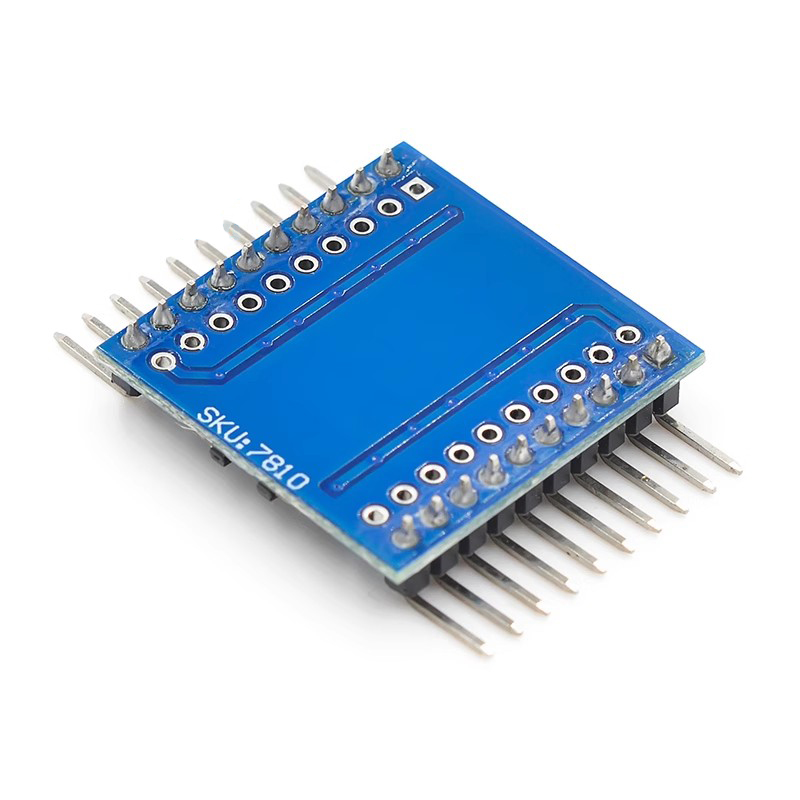

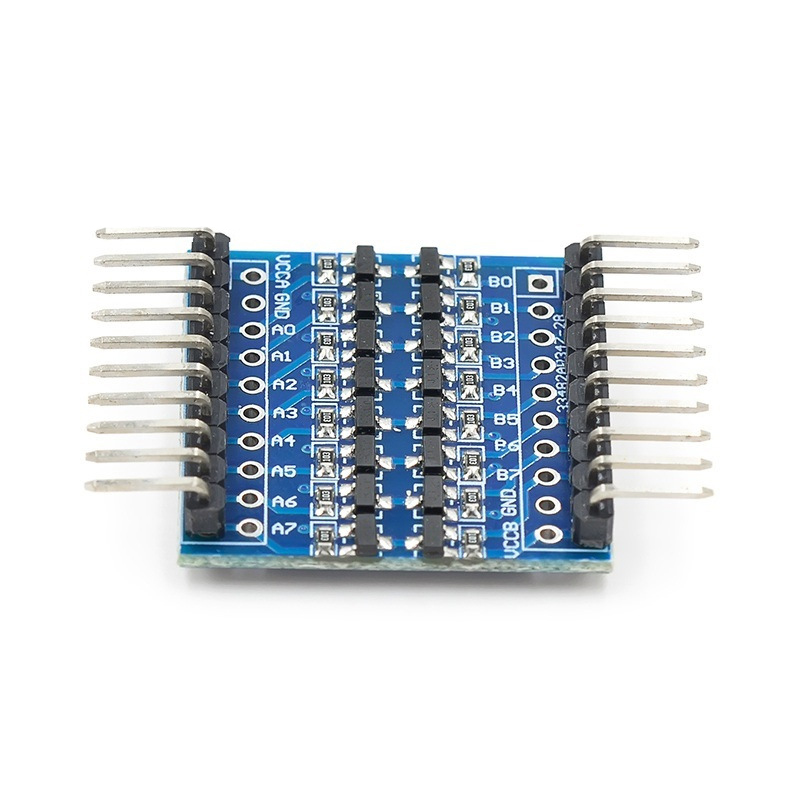

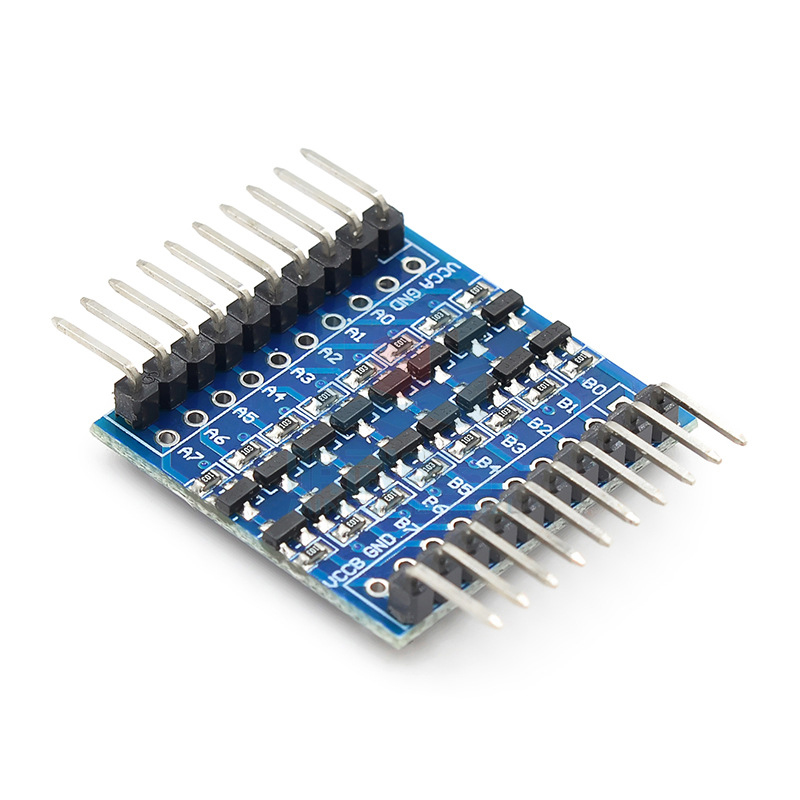

8-way Bidirectional Level Conversion Module
Product characteristics:
8-channel bidirectional conversion between high voltage logic and low voltage logic, achieving bidirectional conversion between Ax and Bx.
Conversion level range: 1.8V-6V
Module size: 28mm X 27.5mm
Instructions for use: (Taking 3.3V, 5V mutual conversion as an example)
VCCA connected to 3.3V power supply
VCCB connected to 5V power supply
GND is connected to the negative pole of the power supply, and both power supplies are grounded together
Ax inputs 3.3V TTL level, Bx outputs 5V TTL level
Bx input 5V TTL level, Ax will output 3.3V TTL level
