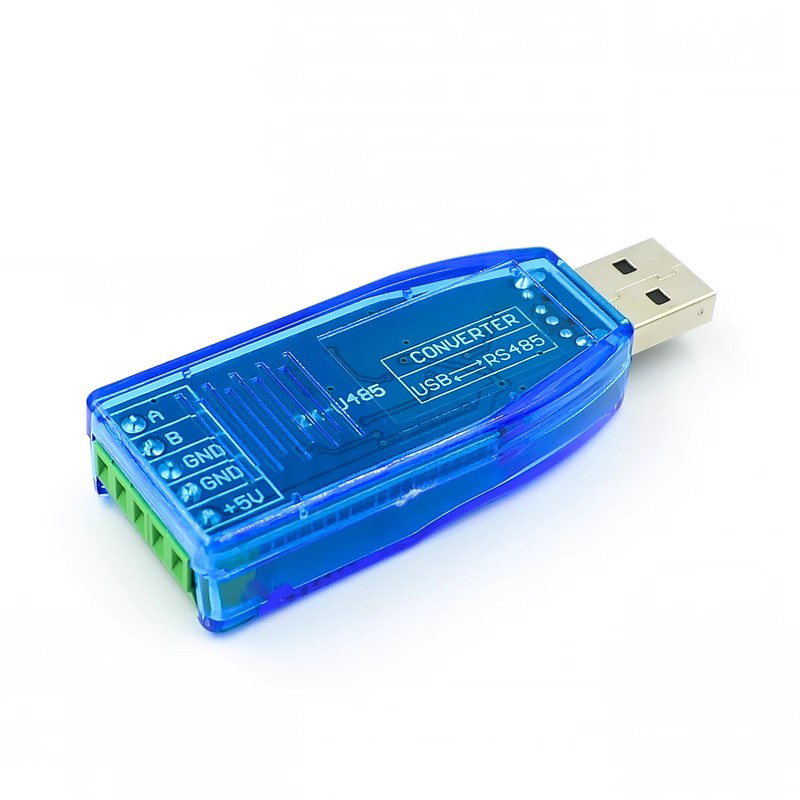

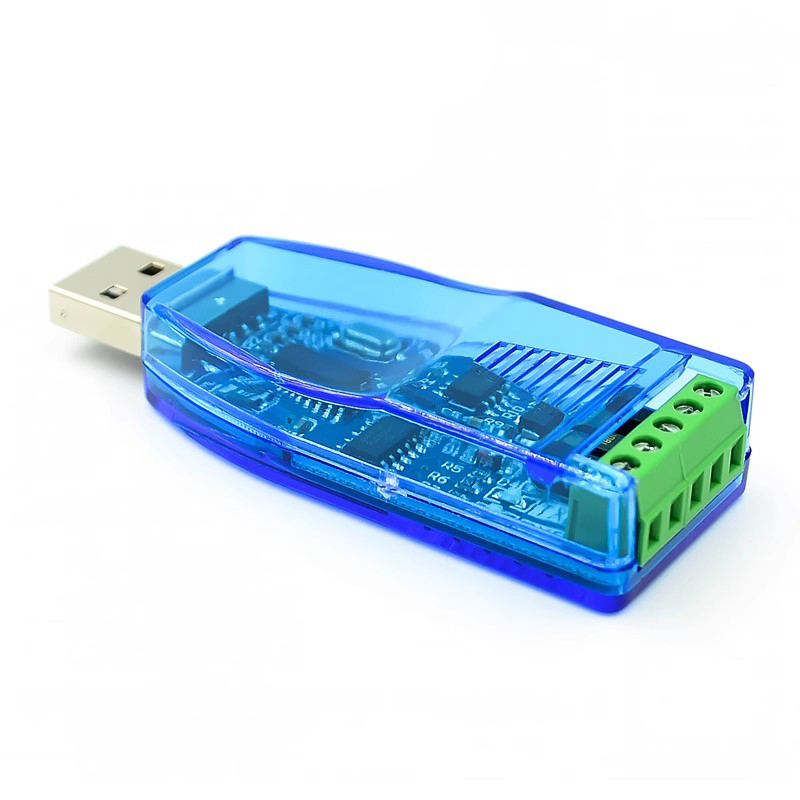

Industrial Grade USB To RS485 RS232 Communication Module Bidirectional Half Duplex Serial Port Line Converter TVS ProtectionItem NO.: usbrs485
-
Customized Requirements
- Quantity
-
-
- Product Name: Industrial Grade USB To RS485 RS232 Communication Module Bidirectional Half Duplex Serial Port Line Converter TVS Protection
- Item NO.: usbrs485
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: USB To RS485 RS232 , Serial Port Line Converter
- Creation Time: 2024-04-13
USB To RS485 RS232
Baby highlights:
Including CH340 driver
All using original chips! All using original chips! All using original chips!
Industrial grade protection: TVS transient suppression protection, electrostatic ESD protection, surge protection, AB signal line short circuit and power supply short circuit protection (short circuit without burning)
Transmission distance up to 1200 meters (tested at 9600bps)
Supports a baud rate of 921600, much higher than 115200, and uses a higher baud rate for paired transmission
Multiple systems support hot swapping, supports win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X systems, USB interface can be hot swapped
Automatically distinguish and control the direction of data transmission, without the need for any handshake signals (such as RTS, DTR, etc.), mode conversion can be achieved without the need for jumper settings, ensuring compliance with existing communication software and interface hardware.
With TXD and RXD indicator lights
