Home>Electronic Modules>Switch/Relay Module>1-way Relay Module 5V12V24V with Optocoupler Isolation Support 30A250V High and Low Level Trigger High Current
1-way Relay Module 5V12V24V with Optocoupler Isolation Support 30A250V High and Low Level Trigger High Current

1-way Relay Module 5V12V24V with Optocoupler Isolation Support 30A250V High and Low Level Trigger High CurrentItem NO.: MK00858

US$ 5.16
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
1-way Relay Module 5V12V24V with Optocoupler Isolation Support 30A250V High and Low Level Trigger High Current
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • 1-way Relay Module 5V12V24V with Optocoupler Isolation





    Module Description:

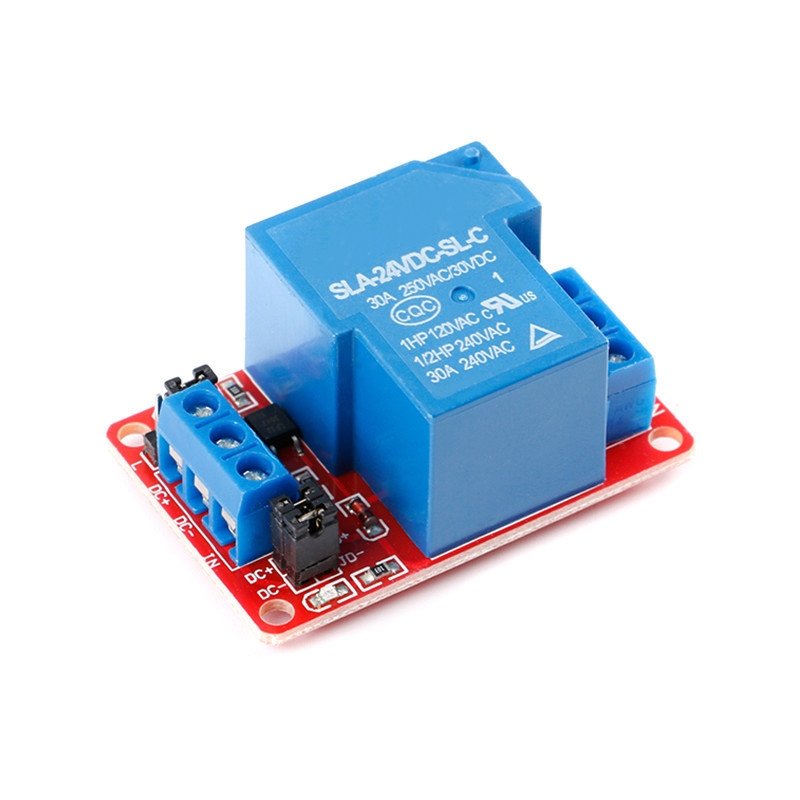

    1. The module adopts genuine high-quality 30A relays, with a normally open interface. The maximum load is 250V/30A for AC and 30V/30A for DC;

    2. Adopting patch optocoupler isolation, with strong driving ability and stable performance; Trigger current 5mA;

    3. The working voltage of the module is 5V

    4. The module can be triggered at high or low levels through jumper settings

    5. The voltage at the control end of the relay and the voltage at the trigger end can be completely isolated from the front and rear stages by powering on the jumper, which can meet different voltage requirements for the front and rear stages (such as 24V for the relay and 5V for the trigger). It is necessary to contact customer service to change the parameters, and the prices may vary;

    6. Fault tolerant design, even if the control line is broken, the relay will not act;

    7. Power indicator light (green), relay status indicator light (red)

    8. The interface design is user-friendly, and all interfaces can be directly connected and led out through wiring terminals, which is very convenient

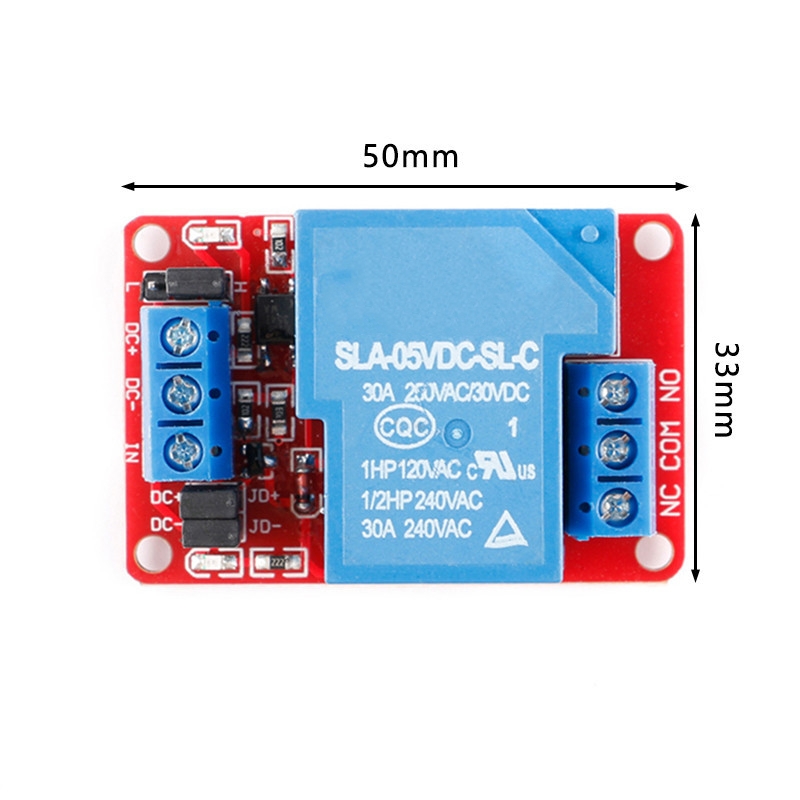

    9. Module size: 50mm * 33mm * 24mm (length * width * height), net weight of product: 36g

    10. Equipped with 4 fixed bolt holes, with holes of 3.1mm and spacing of 44.5mm * 27.5mm



    Technical Parameters:



    Relay version - Static current - Maximum current - Trigger current - Trigger voltage (low) High

    5V -5mA -190mA -2-4mA -0-1.5V -2.5-5V

    12V -5mA -80mA -2-4mA -0-4V -4.5-12V

    24V -5mA -50mA -2-4mA -0-8V -8.5-24V
