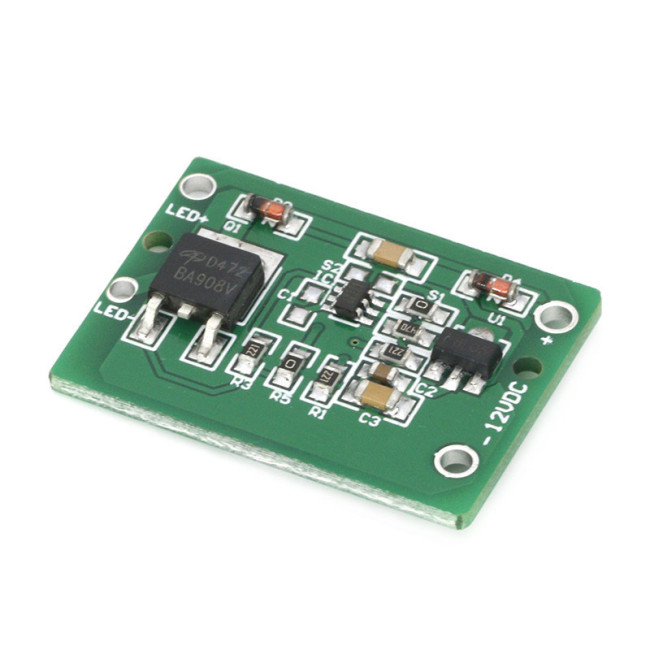

- Product Name: 12v Capacitive Touch Switch Key Module Inching Latch With Relay TTP223 Module
- Item NO.: TTP223-12v
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Key Module , 12v Capacitive Touch Switch , TTP223
- Creation Time: 2024-04-15
TTP223 12V Capacitive Touch Switch Sensor Module
Product Information:
This module is used by most customers to modify cars and motorcycles, LED lights and light strips, mirror touch, and various types of equipment that require direct loading, etc.

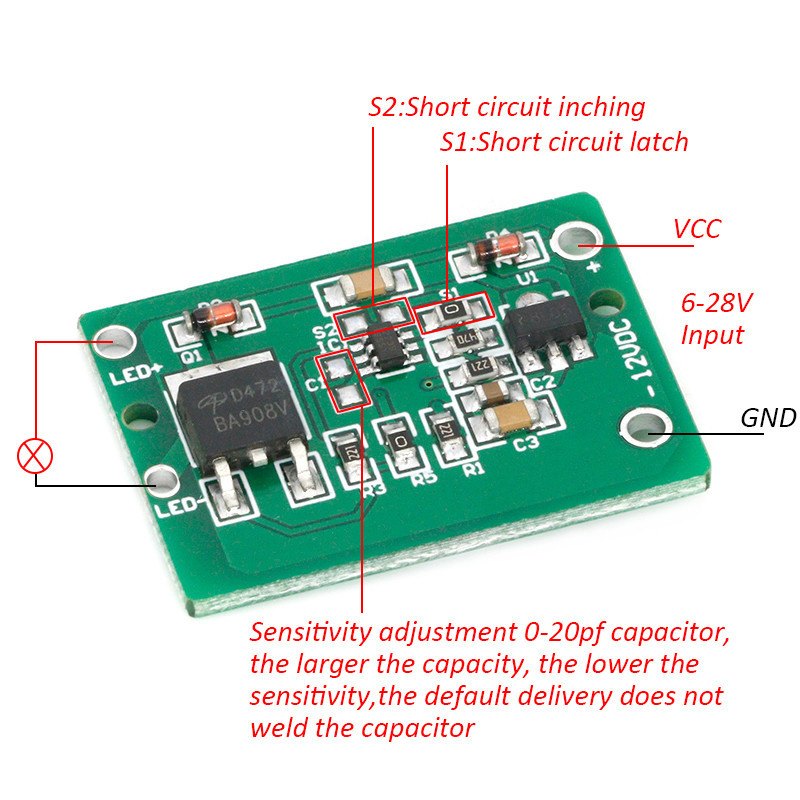

The touch module can be set to jog or latch, with adjustable sensitivity (no soldering capacitance, zero degree, shipped by default), and can also be brought out for touch
Indicator light: there is no output from the blue light when powered on, and there is output from the touch red light; Output equals input.
Input/output DC: 6v-20v (Note: Support regulated power supply, not constant current power supply temporarily)
Drive current: 3A Standby consumption: 6MA Circuit board size: 24MM * 32MM * 1.6MM
Currently, the customers we cooperate with are mainly engaged in the research and development of touch switches, LED lamp modifications, car modifications, secret room escape games, and various large-scale machine products and equipment. It can be widely used in lighting control, toys, household appliances, kitchens, bathroom mirrors, and other products.
