Customized Requirements
- Quantity
-
-
- Product Name: 13.56mHz PN532 Compatible Raspberry Pi Board NFC Reader Module
- Item NO.: PN532-Pi
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: PN532 , 13.56mHz , NFC Reader Module
- Creation Time: 2024-04-17

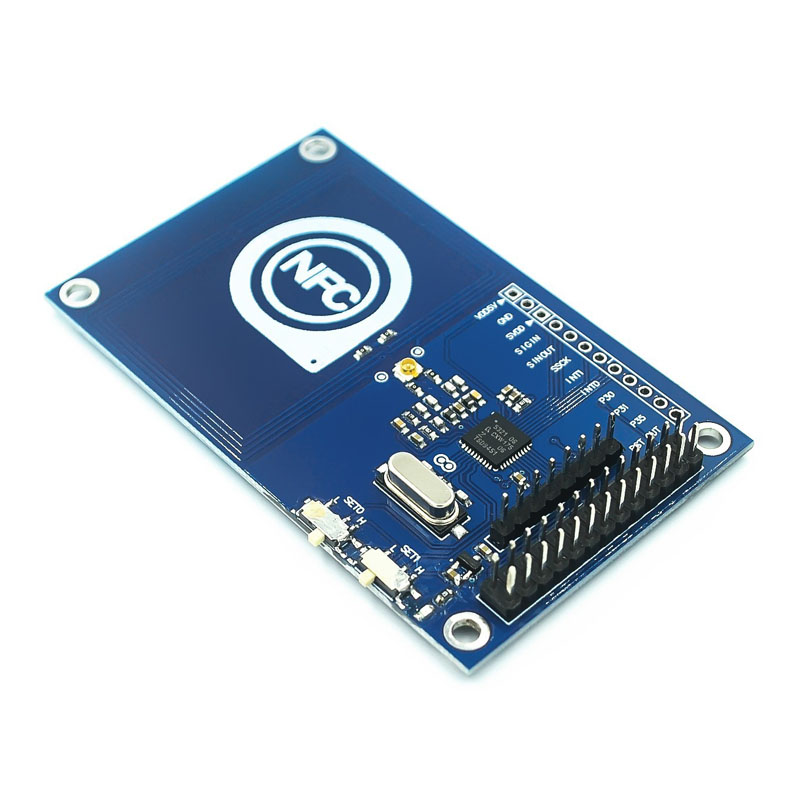

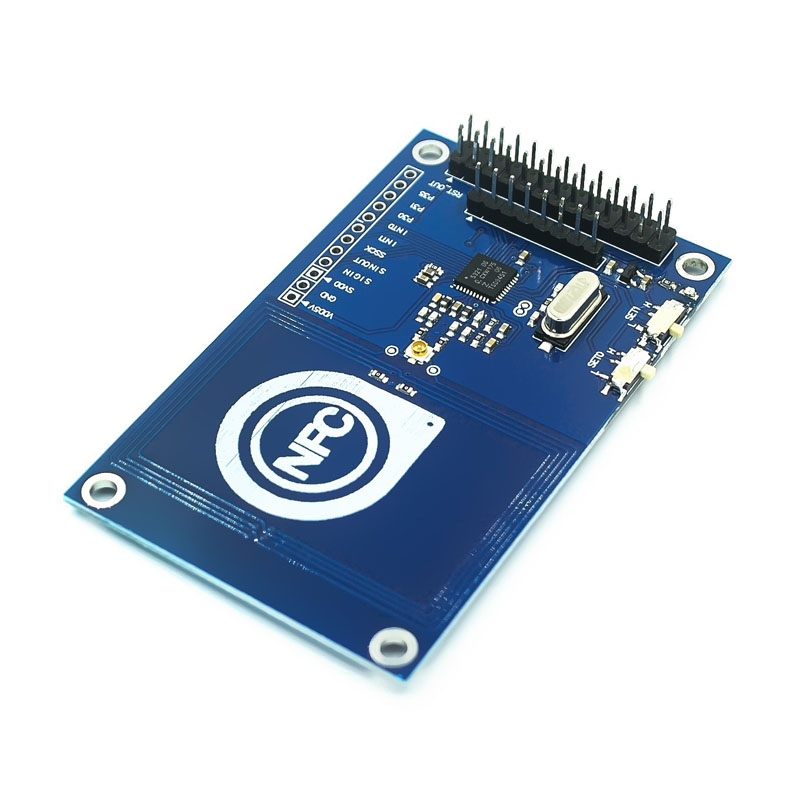

PN532 NFC Reader Module
Introduction:
ITEAD PN532 NFC module, as its name implies, is based on PN532 chip and used for 13.56MHz near-field communication. The module is equipped with on-board antenna, so there is no external antenna coil. It is compatible with SPI, IIC and UART interfaces for communication. With the NFC library supporting the development of Arduino and Raspberry Pi provided by us, products with NFC functions are very convenient to use.
Characteristic:
● Long effective communication distance is 5 cm
● Support SPI, IIC and UART interface switching.
● Can be used for 13.56M non-contact communication
● Compatible with ISO14443 TYPE A and B standards
Standard:
● Chip: NXP PN532
● Working voltage: 3.3V
● Power supply voltage: 3.3 ～ 5.5V
● Maximum power supply current: 150 mA
● Working current (standby mode): 100 mA
● Working current (write mode): 120 mA
● Working current (reading mode): 120 mA
● Pointer: PWR
● Interface: 20 pins interface standard SPI interface of Raspberry Pi

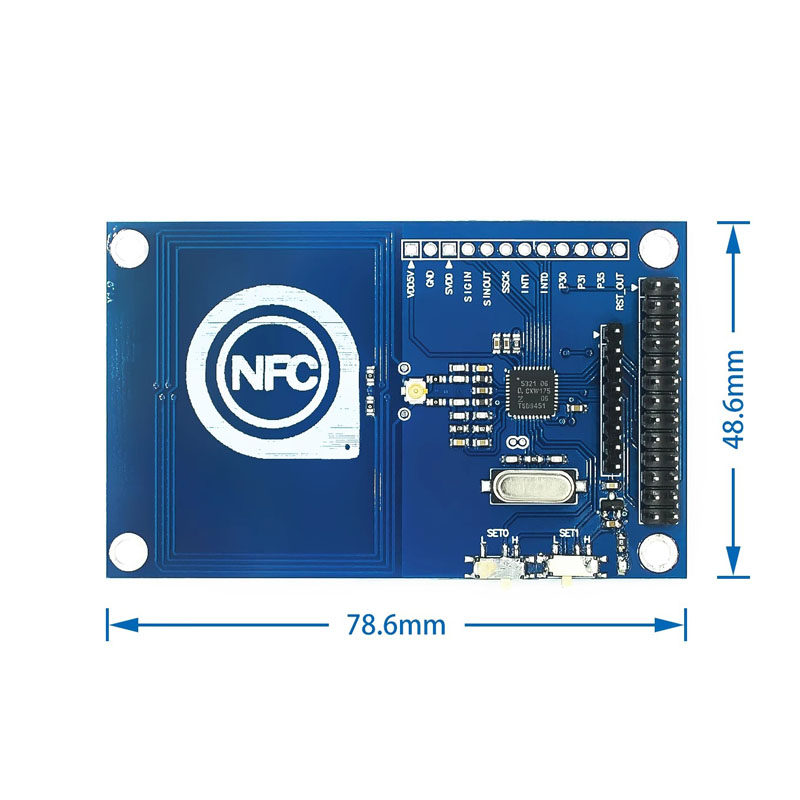

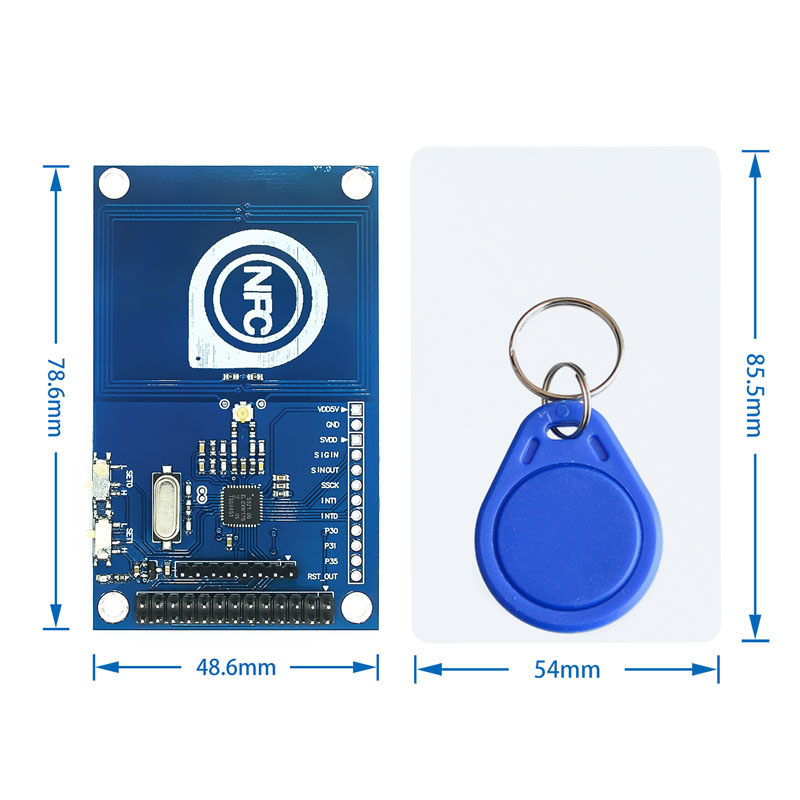

● Board size: 78.6 mm long × 48.6mm wide × 11.3mm high
