JDY-25M Bluetooth 5.0 MESH Network zigbee Wireless Transceiver Module Data Master Slave Transparent TransmissionItem NO.: JDY-25M

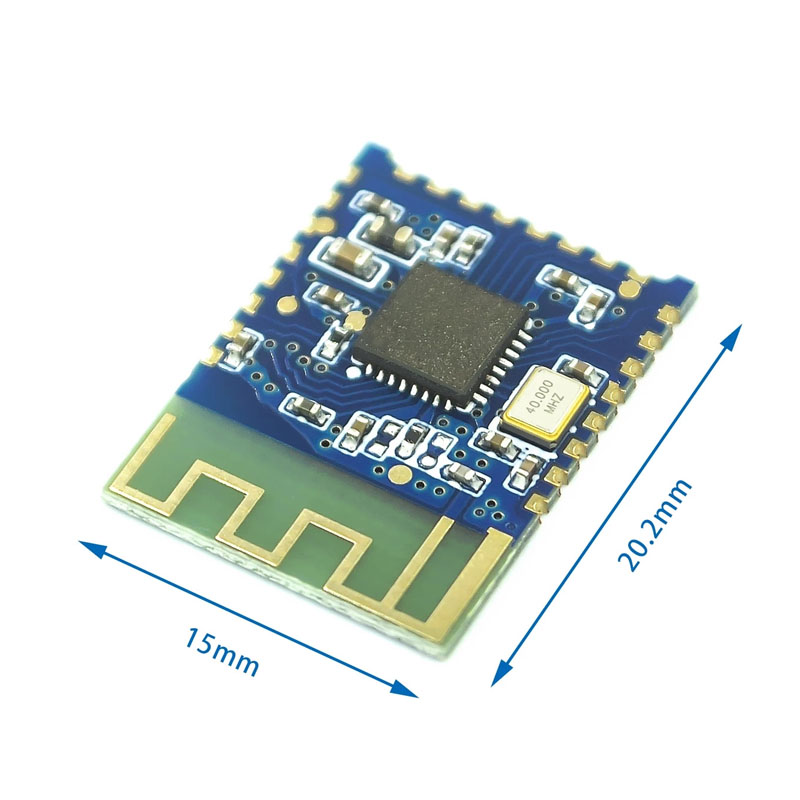

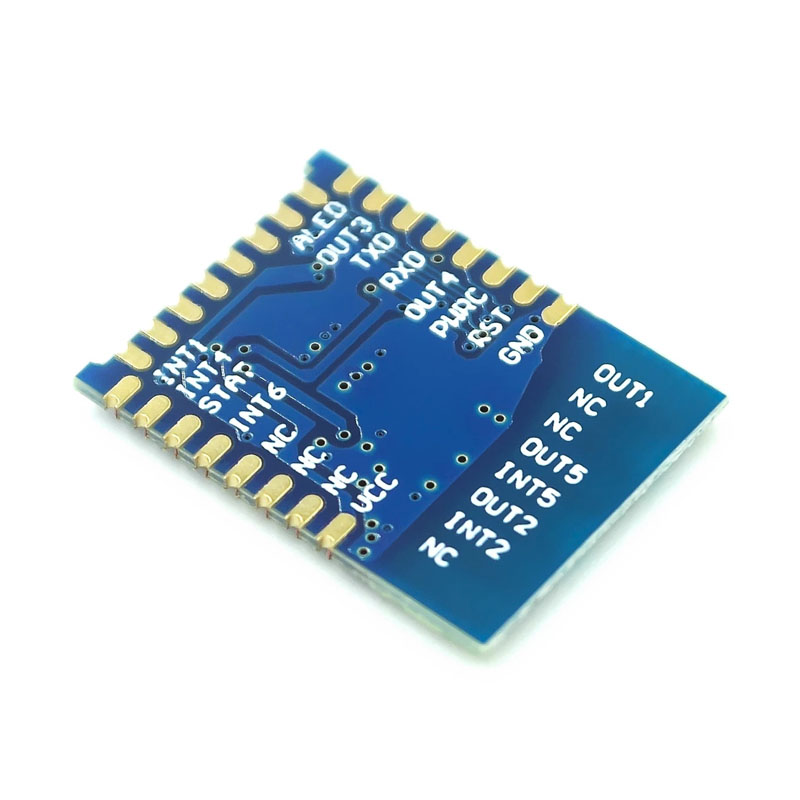

JDY-25M Wireless Receiver Module

Product Introduction:

The JDY-25M Bluetooth function supports master-slave transparent transmission, iBeacon, BLE probe, iBeacon detection, MESH networking, and the number of MESH networking supports 65280 device networking. It adopts multi hop wireless anti-collision technology, and the networking communication speed supports 50mS to send 12 bytes of data. A single module supports routing nodes and terminal nodes. The routing nodes support data relay (not low power consumption), and the terminal nodes support low power consumption (automatic sleep after pressing the key to wake up and send data), JDY-25M networking generally only requires configuring the networking NETID and short-circuit address, and the module will automatically network. When communicating with the APP, the networking module is equivalent to transparent transmission, which greatly facilitates user development and compatibility with old product apps.

Product Characteristics:

1: Support data transparent transmission with mobile phone (IOS, ANDROID) apps (operating current around 1mA)

2: Support module and module master-slave high-speed transparent transmission

3: Supports iBeacon functionality (ultra low power consumption)

4: Supports iBeacon probe function

5: Supports BLE Bluetooth probe function

6: Supports multi connected slave mode, which can connect to multiple phones and transmit transparently at the same time

7: Support Bluetooth MESH (networking serial data communication, output IO control, input button control) networking

8: MESH networking sends data to support reply and no reply communication

9: Networking remote control

10: Multiple master-slave connections (the host is connected to the slave at the same time, and the slave is connected to the phone and working simultaneously)

Product Application Scope:

1: Bluetooth networking LED lights (one to many, many to one, phone or remote control, many to many control)

2: Bluetooth networking serial communication application (one to many, many to one, mobile phone or remote control, many to many control)

3: Networking panel switch, 86 switch (ultra low power consumption)

4: Control of networked smart home applications (switches, relays, curtains)

5: Networking sensor applications

6: WIFI networking gateway application

7: Zigbee networking application

8: Mobile networking control application

9: Key label
