Lossless Bluetooth Module Automotive Bluetooth High Fidelity Audio Bluetooth Module HIFI Bluetooth JDY-64Item NO.: JDY-64
-
Customized Requirements
- Quantity
-
-
- Product Name: Lossless Bluetooth Module Automotive Bluetooth High Fidelity Audio Bluetooth Module HIFI Bluetooth JDY-64
- Item NO.: JDY-64
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Wireless Module
- Tag: Bluetooth , Lossless Bluetooth Module , Automotive Bluetooth , High Fidelity , Audio Bluetooth Module , HIFI , JDY-64
- Creation Time: 2024-03-26

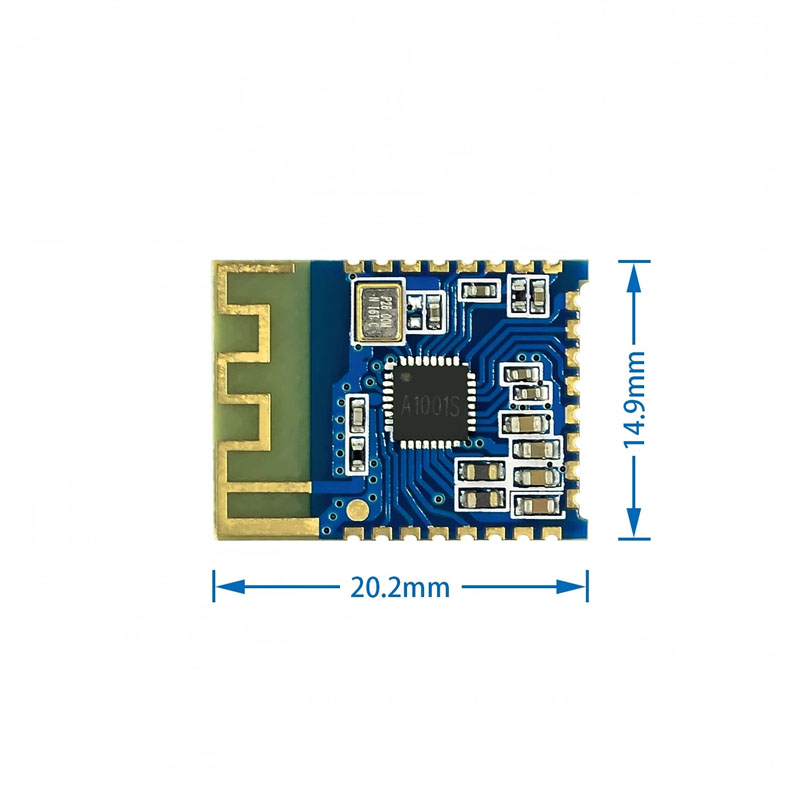

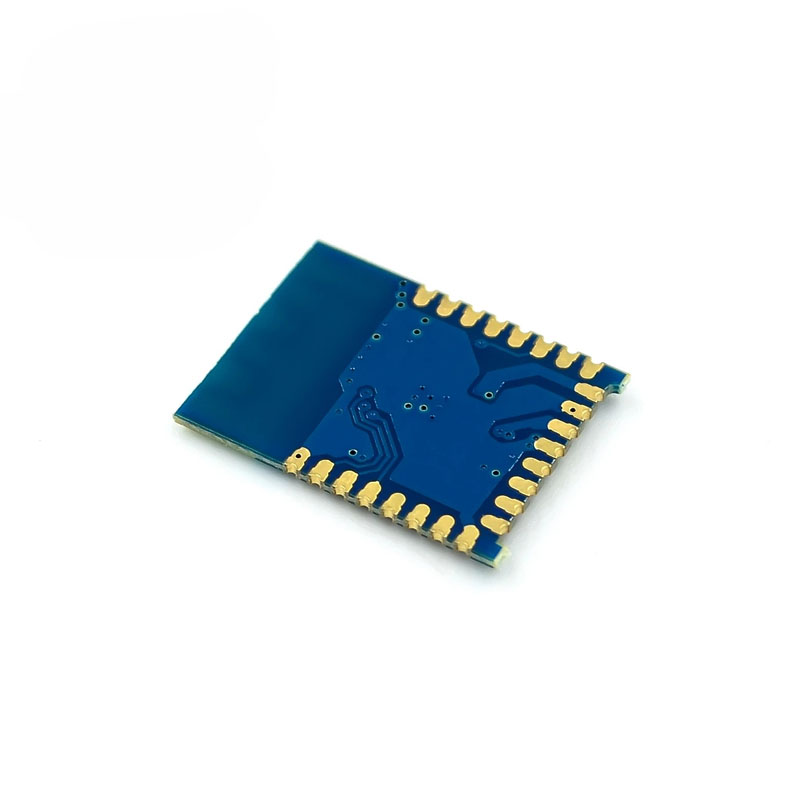

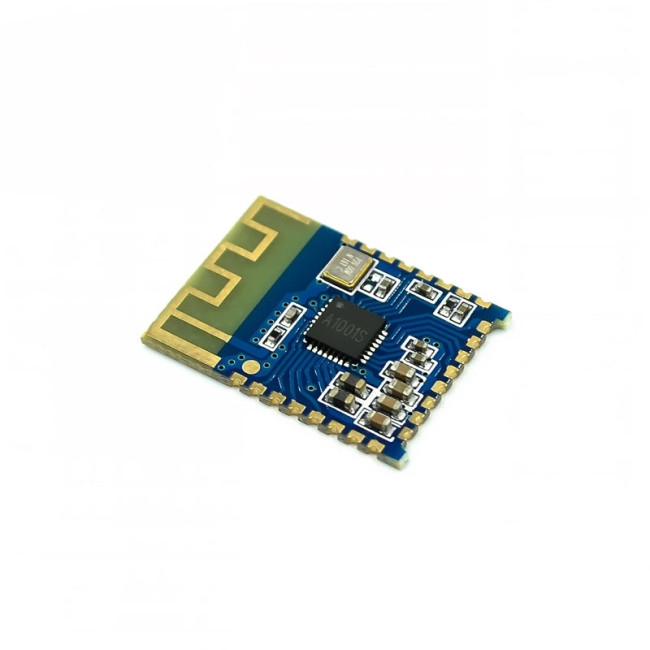

JDY-64 Lossless Bluetooth Module
Product Introduction:
JDY-64 is designed as a low-power and lossless dual channel stereo solution, with excellent overall performance. Users only need to connect the module to the application product to quickly achieve wireless music transmission. By default, there is no (button, on/off, connection, or fragmentation) prompt sound, integrated SD card (default is earphone function, SD card is not supported) function, and support button control (music up/down, playback and stop, on/off, volume increase/decrease) and other functions
Product application:
JDY-64 is mainly used in mobile phones, computers, PADs, etc. It can be applied to Bluetooth mono headphones, headphones, Bluetooth dual channel headphones, Bluetooth audio, Bluetooth audio receivers, etc.
Module parameters:
Model: JDY-64
Bluetooth version: Bluetooth V4.2
Supports Bluetooth protocols: HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
Working voltage: DC3.3-4.2V
Unconnected broadcast status current: 3.5mA
Working state current after connection: 20MA
Deep sleep current: 3uA
Working temperature: -40 ℃ -80 ℃
Transmission distance: 15m
Sensitivity: -87dbm
Patch temperature:<260 ℃
