15A Ideal Diode Low Voltage Differential Diode Solar Anti Backflow and Charging Backflow ProtectionItem NO.: 15A ideal
-
Customized Requirements
- Quantity
-
-
- Product Name: 15A Ideal Diode Low Voltage Differential Diode Solar Anti Backflow and Charging Backflow Protection
- Item NO.: 15A ideal
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 15A , Ideal Diode , Low Voltage Differential Diode
- Creation Time: 2024-05-13

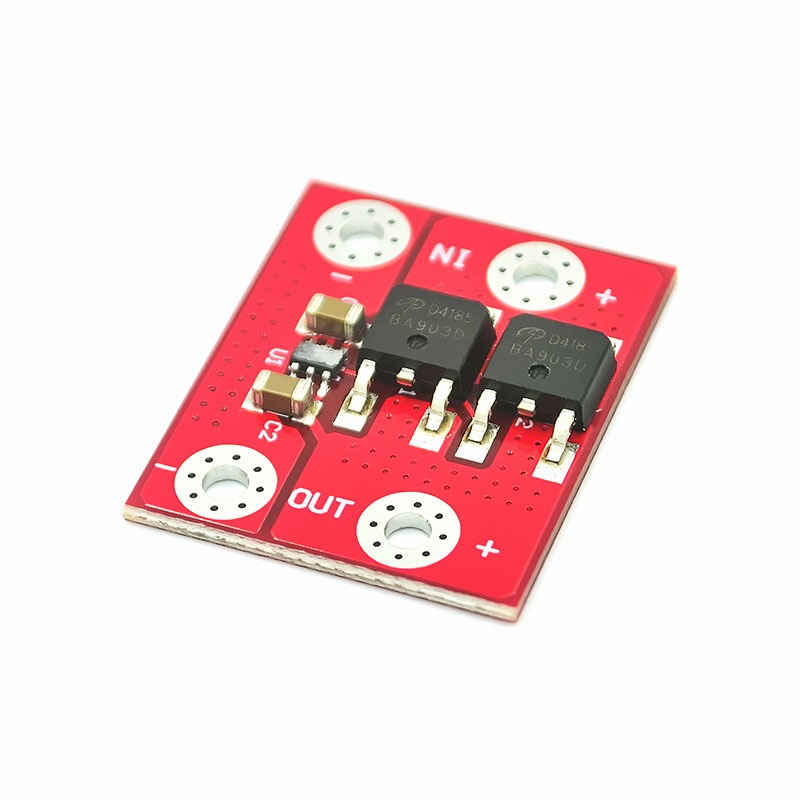

15A Ideal Diode
Product Description:
Low forward voltage diode function. Compared to Schottky diodes, this can provide a lower loss path, and in high-power applications, it can provide a more efficient solution and save valuable circuit board space by reducing the need for heat dissipation. When conducting, the voltage drop at both ends of the MOSFET is usually 20mV.
The wide power supply working range supports the use of 1 to 6 series connected lithium-ion batteries to provide working power. Low static current (typical value of 11) μ A) It is independent of the load current. The gate driver includes an internal voltage clamp for MOSFET protection.
The input and output are equivalent to diodes. If the output voltage is detected to be greater than the input, immediately turn off the output and the detected value is in millivolts.
The corresponding speed is very fast.
Usage: Replace ordinary high current diodes, ideal choice for parallel connection of solar panels,
Suitable for reverse charging protection
Working voltage: 3-28V
Working current: Operating current 15A

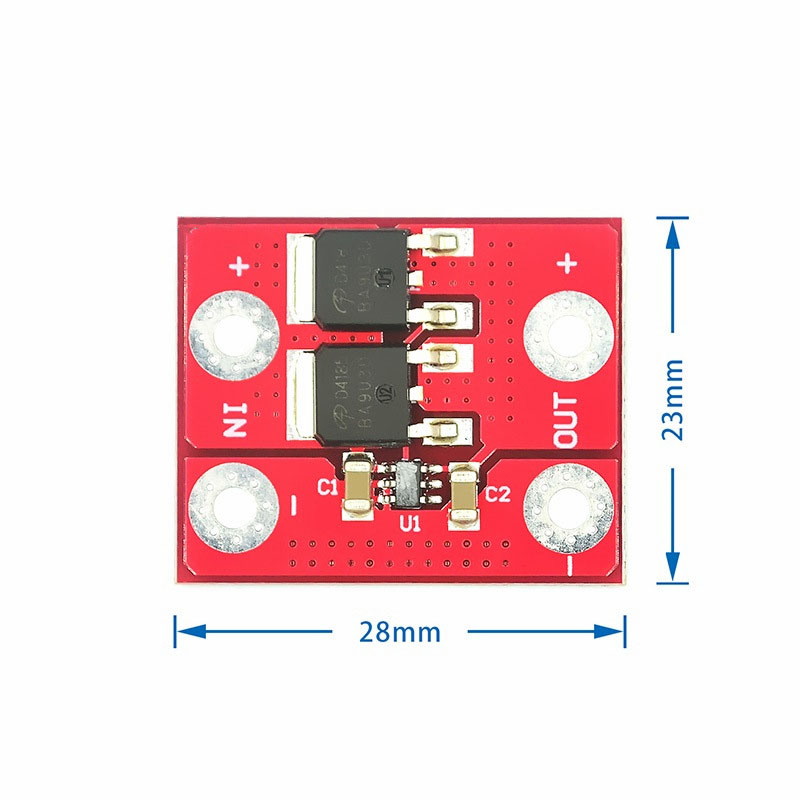

Circuit board size: 23 * 28mm
Application:
Replacing power supply Schottky diodes
Low static current: 11 μ A
Voltage range of 3V to 28V AC/DC adapter
Battery voltage range from 2.5V to 28V
• Operating temperature range from -40oC to 125oC
