CCMHCN DC Motor Controller PWM DC Motor Governor PLC 6V12V36V60V90V15AItem NO.: CCMHCN 15A

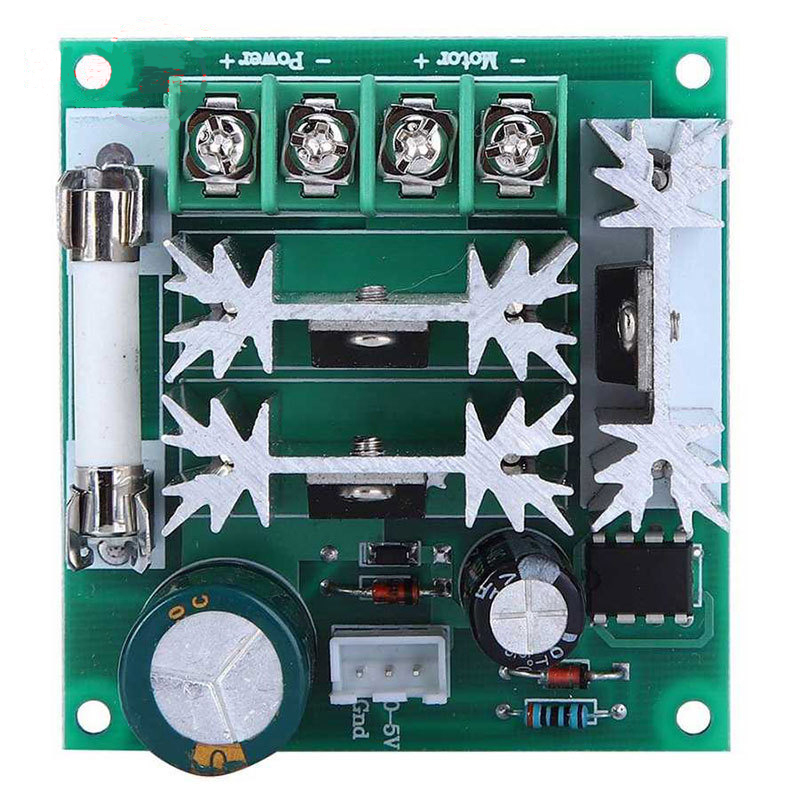

CCMHCN DC Motor Controller

Technical Indicators:

(1) Model: CCMHCN

(2) Working voltage: DC6V-DC90V (ultra wide working voltage)

(3) Control power: 0.01-1000W (maximum current 15A, rated 5A)

(4) Quiescent current: 0.005A (standby state, standby current of 5 mA)

(5) Rated current: 8A

(6) Maximum current: 15A

(7) PWM duty cycle: 0% -100%

(8) PWM frequency: 16khz

(9) Potentiometer: resistance B10K, wire length 20CM, opening 8mm

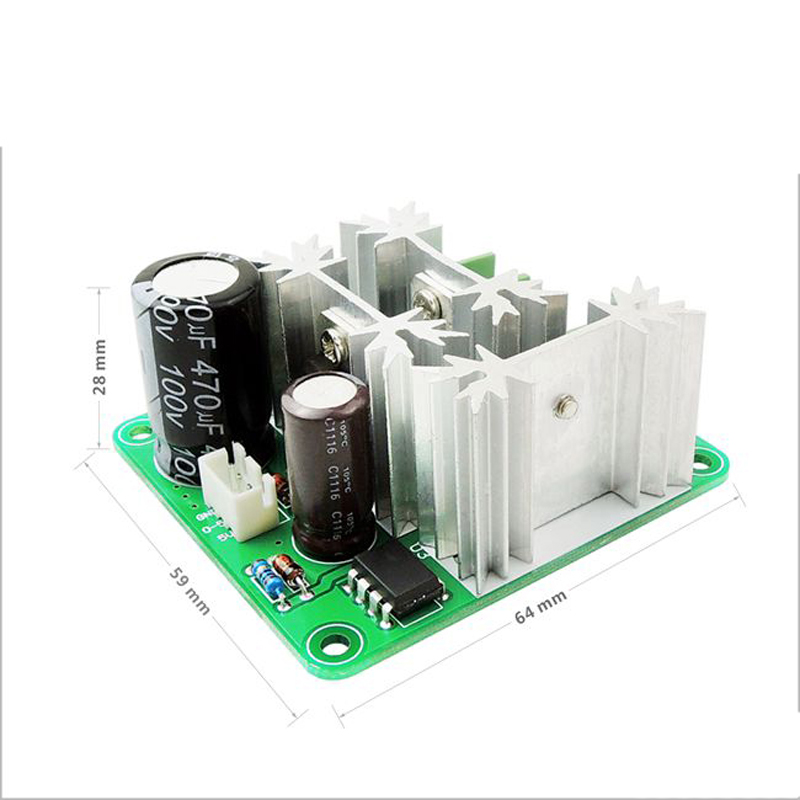

(10) Size: 64mm * 59mm * 28mm

(11) Weight: 75g

Product Features:

● If the forward and reverse control function is required, customers can connect external forward and reverse switches

● It can be controlled by an external voltage of 0-5V, and the speed of the motor can be directly controlled by PLC

● With power supply reverse connection protection function and voltage overvoltage protection function (15m * 20mm standard size of 15A fast fusing ceramic fuse)

Precautions:

1. The input of the DC motor governor is DC power, and it cannot be directly connected to AC power (such as household 220 AC power), otherwise it will burn out!!!

2. Do not reverse connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.

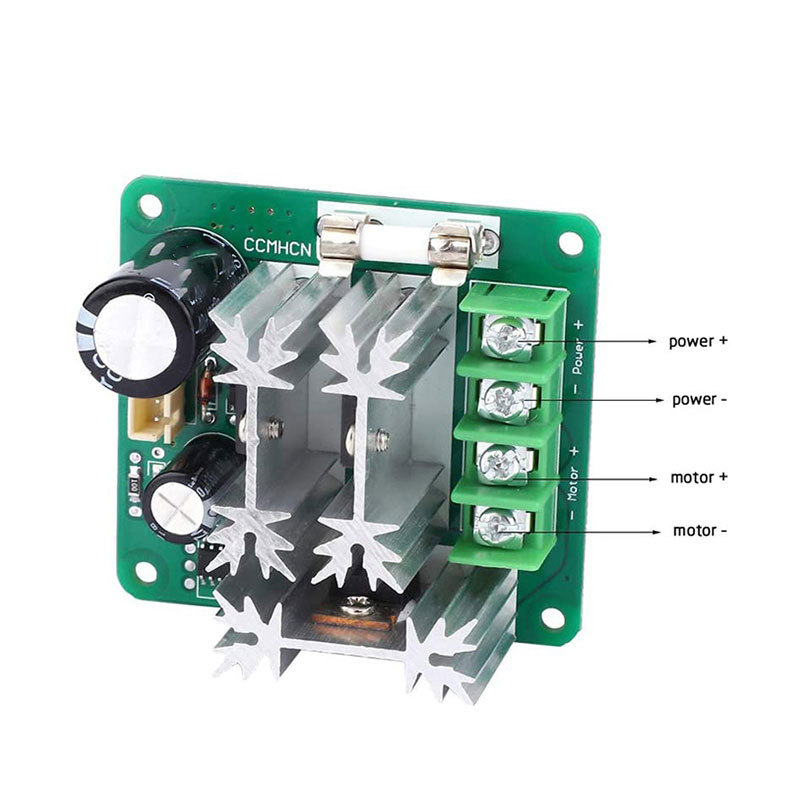

3. The motor can distinguish between positive and negative, and when the running direction is not consistent with the expected direction, the direction can be changed by adjusting the line sequence.

4. Adjusting the Potentiometer knob can change the output duty cycle of the governor. When the motor speed changes the wiring, the circuit must not touch the radiator.

5. The Potentiometer is adjusted clockwise, and the greater the value is.
