DC 0-100V 1A 10A 50A 100A LED DC Dual Display Digital Current Voltmeter Digital HeadItem NO.: MK01562
-
Customized Requirements
- Quantity
-
-
- Product Name: DC 0-100V 1A 10A 50A 100A LED DC Dual Display Digital Current Voltmeter Digital Head
- Item NO.: MK01562
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 1A , 10A , DC 0-100V , 50A , 100A , LED DC Dual Display Digital Current Voltmeter , Digital Head
- Creation Time: 2024-04-09

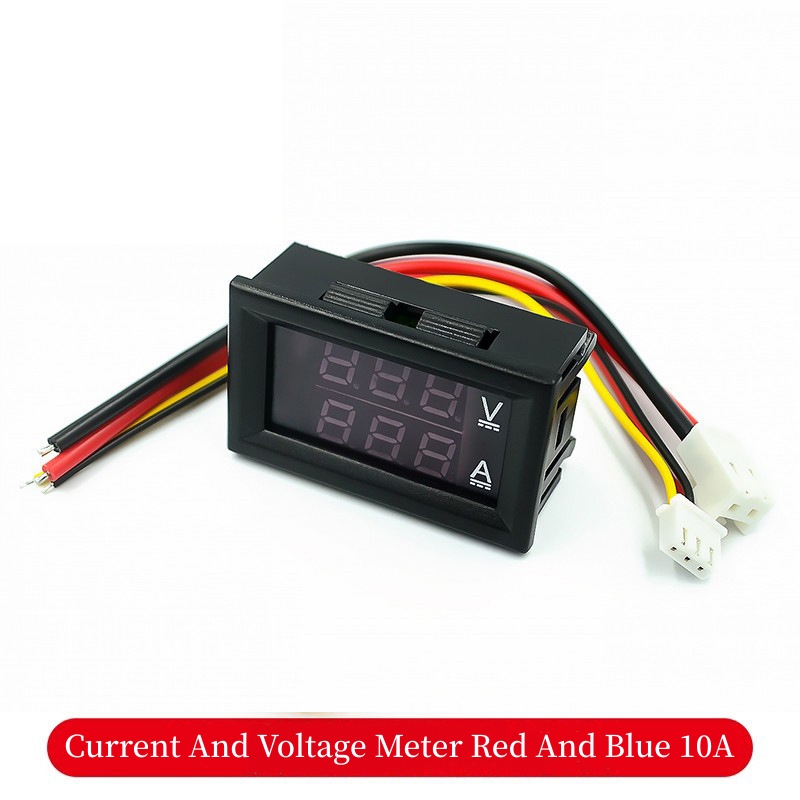

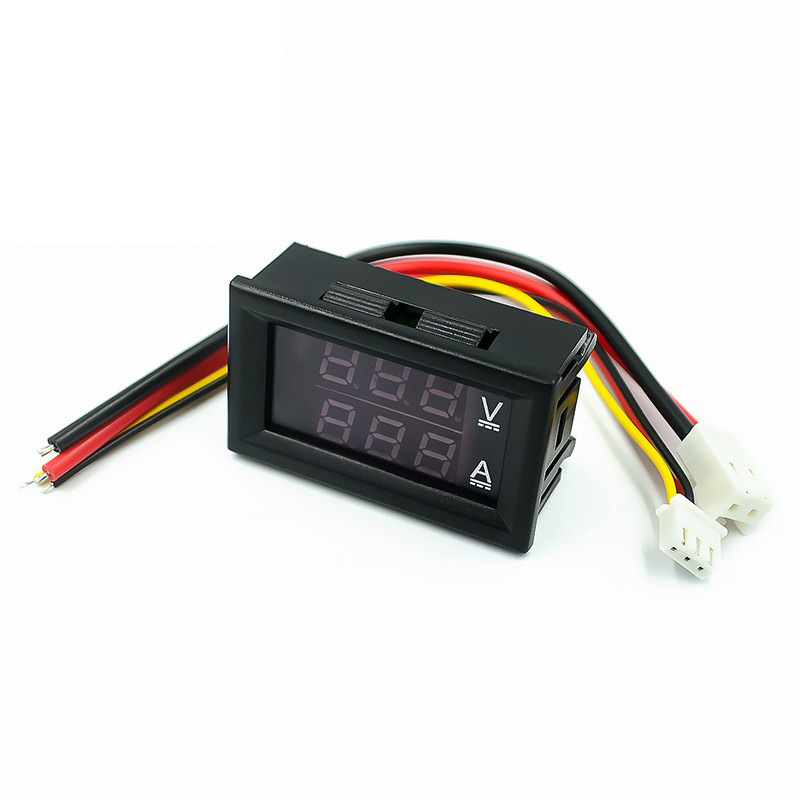

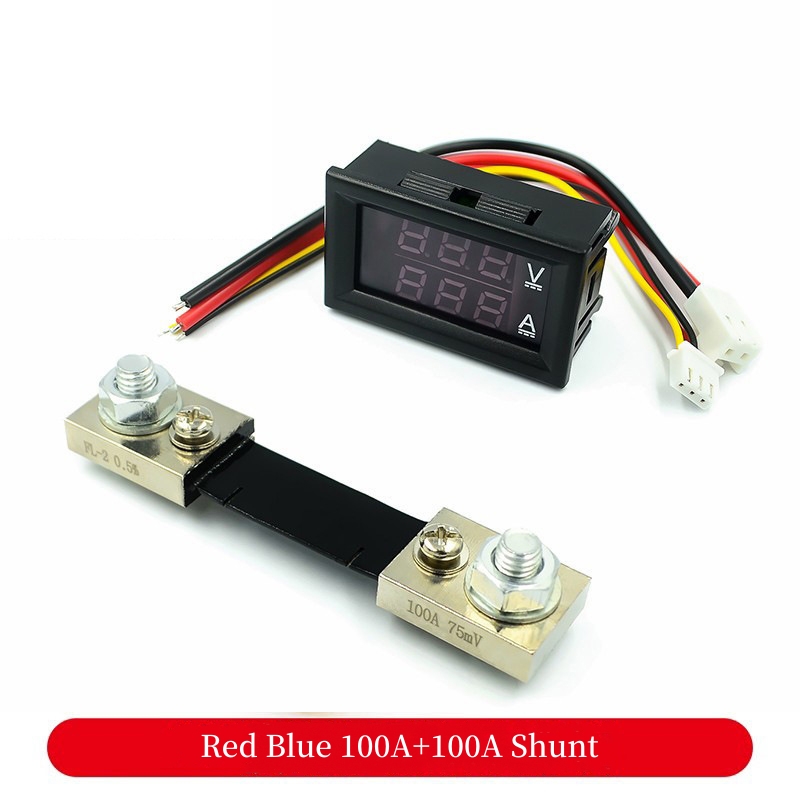

LED DC Dual Display Digital Current Voltmeter
Precautions:

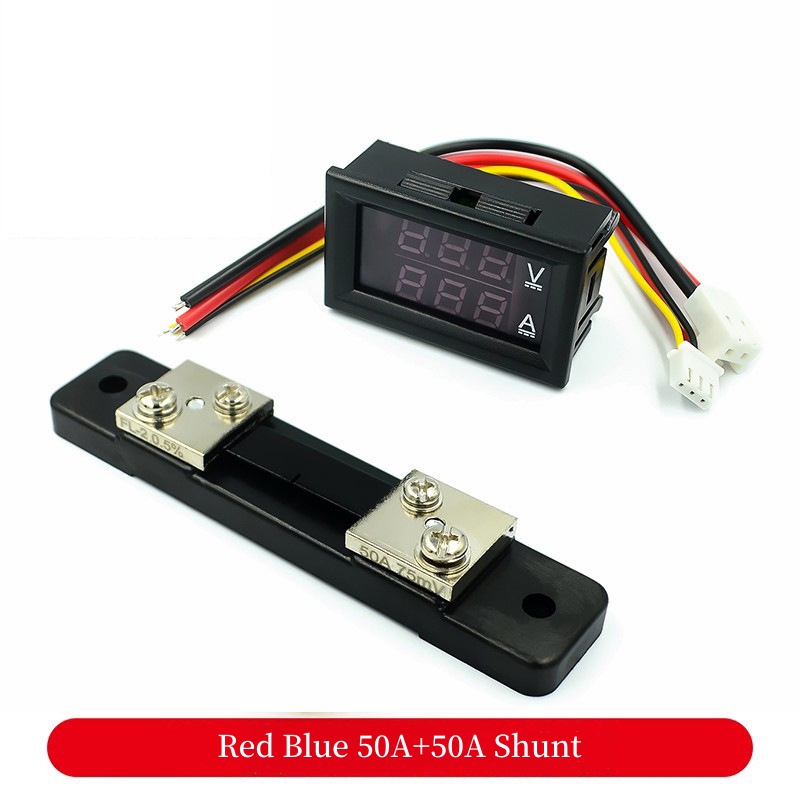

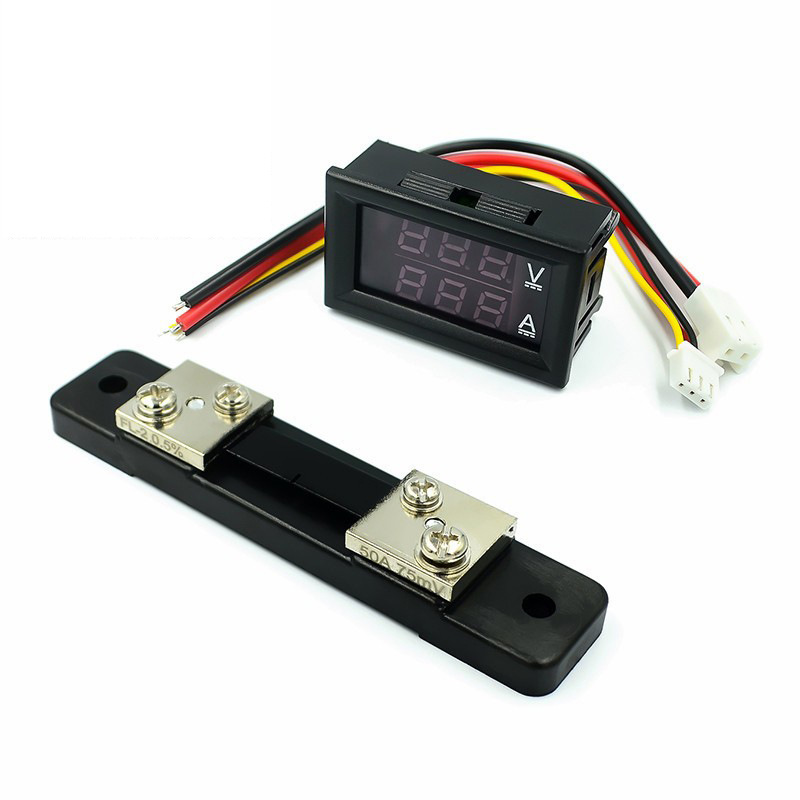

1. Meters with a range of 50A or 100A must be connected to a shunt to power on, otherwise they may burn out. Customers will use it after buying 50A and 100A. Customers who do not even buy a splitter should pay attention. Look at the wiring diagram more. Please do not take photos if you don't know how to use them. Our samples do not accept returns. Small business, please show mercy
2. The power supply range of this meter head is 4-30V (if it exceeds the range, it will burn out), and the measurement range is 0-100V.
Technical parameters:
Voltage measurement range: 0.0V-100V
Current testing range: 0-999mA, 0-10A, 0-50A, 0-100A (4 selectable ranges)
Power supply range: DC4-30.0V
Voltage error: ± 0.1%
Current error: ± 1%

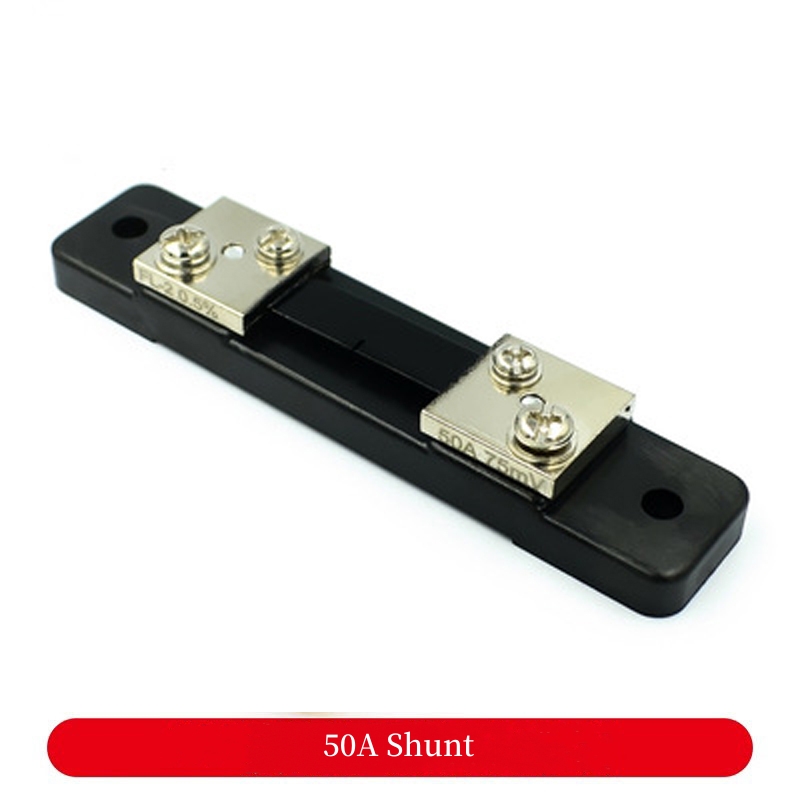

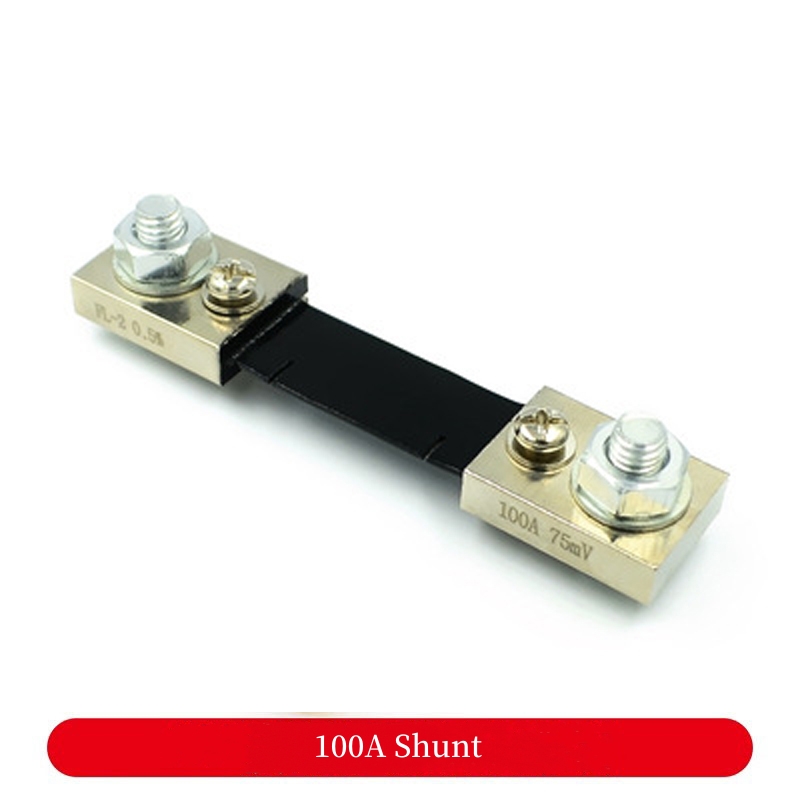

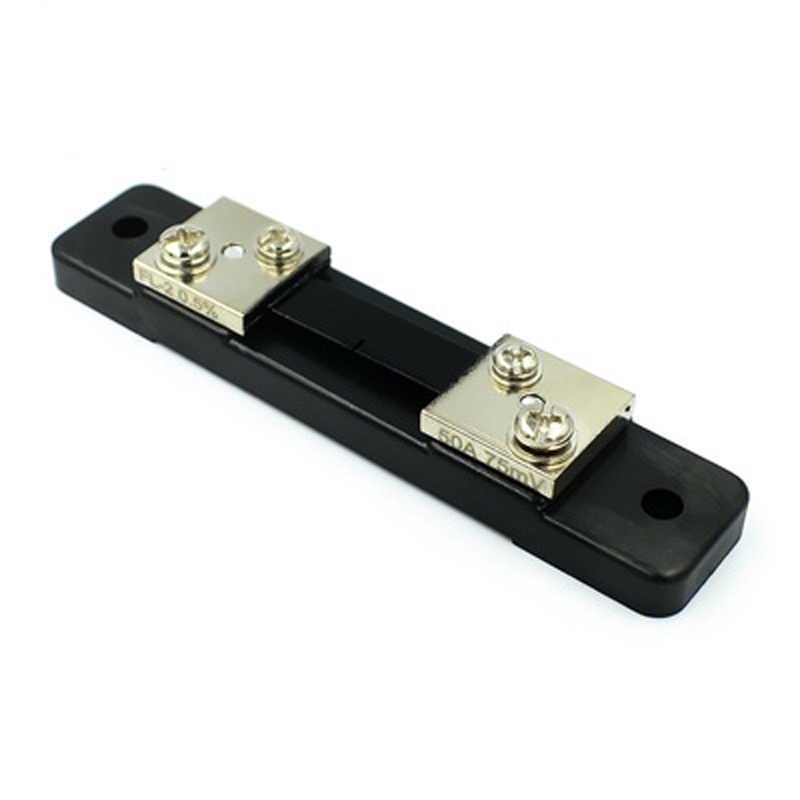

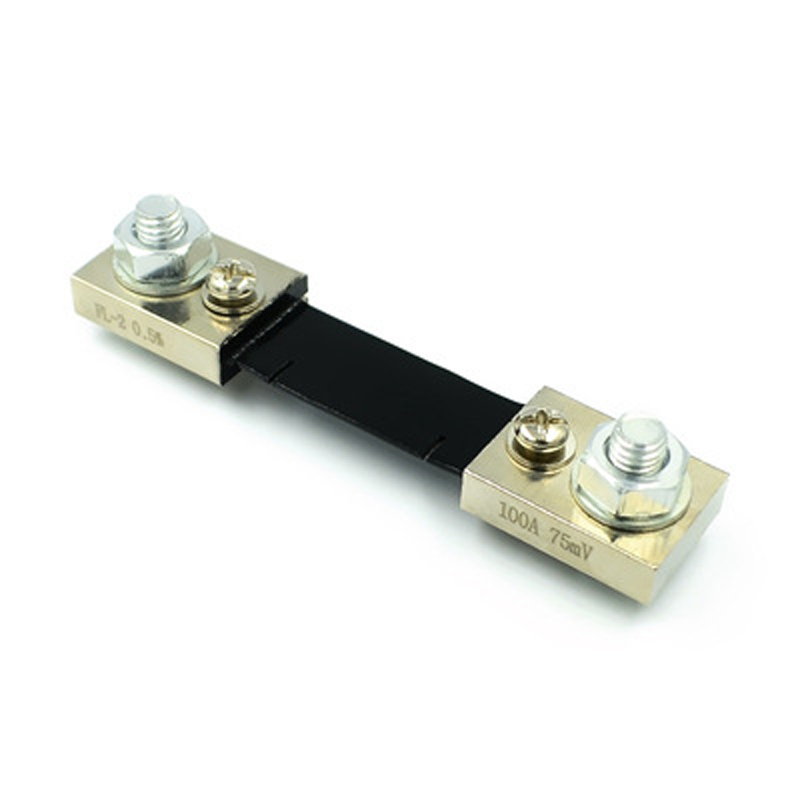

External shunt specification: 75 milliohms
Working current:<20mA
Refresh speed: approximately 300mS once
Display method: dual three position 0.28 "LED digital tube
Display color: red+red, red+blue. Optional
Lead length: 15cm
Overall dimensions: 48 x 29 x 22 mm, length x width x thickness;
Installation hole: 46 x 27 mm
Working temperature: -10 ℃~65 ℃
