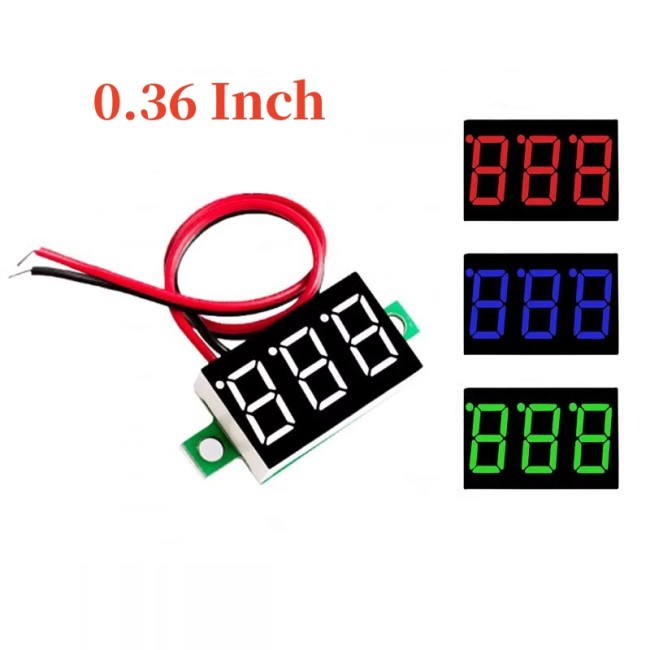

2-wire Voltmeter 0.36 Inch DC4.5V30V DC Voltmeter Head Motorcycle Voltmeter Cigital Display Meter

2-wire Voltmeter 0.36 Inch DC4.5V30V DC Voltmeter Head Motorcycle Voltmeter Cigital Display MeterItem NO.: 2-wire 0.36inch

US$ 2.91
Model
Red
Blue
Green
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
2-wire Voltmeter 0.36 Inch DC4.5V30V DC Voltmeter Head Motorcycle Voltmeter Cigital Display Meter
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • 2-wire Voltmeter 0.36 Inch



    Technical parameters:



    ● Measurement range: red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V

    ● Power supply range: Without the need for additional power supply, directly use the measured voltage as the power supply, with the same range as above

    ● Input: DC30.0V. Note: If the input voltage is higher than 30V, it may be damaged!

    ● Allowable error: ± 1%; The error is ± 0.3V when it is greater than or equal to 10V; Error ± 0.10 when less than 10V

    ● Input impedance:>100K Ω

    ● Operating current: red<23mA, green<18mA, blue<13mA

    ● Refresh speed: approximately 300mS once

    ● Display mode: Three position 0.36 "LED digital tube

    ● Display color: red, green, blue optional

    ● Lead length: 15cm

    ● Outline dimensions: 23 x 15 x 10 mm, length x width x thickness (excluding mounting ears); Including installation ear length: 33mm

    ● Installation hole: hole spacing: 28mm, aperture: 2.8mm

    ● Net weight: 4.7g

    ● Gross weight: 5.3g

    ● Operating temperature: -10 ℃~65 ℃
