Detail

- Product Name: 3.7V Lithium Battery Protection Board Suitable for Polymer 18650 Pads Can Be Spot Welded Can Have Multiple 3A Overcurrent Values
- Item NO.: 3.7V186503A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 18650 , Lithium Battery Protection Board , 3A , 3.7V , Polymer , Pads Can Be Spot Welded
- Creation Time: 2024-03-24

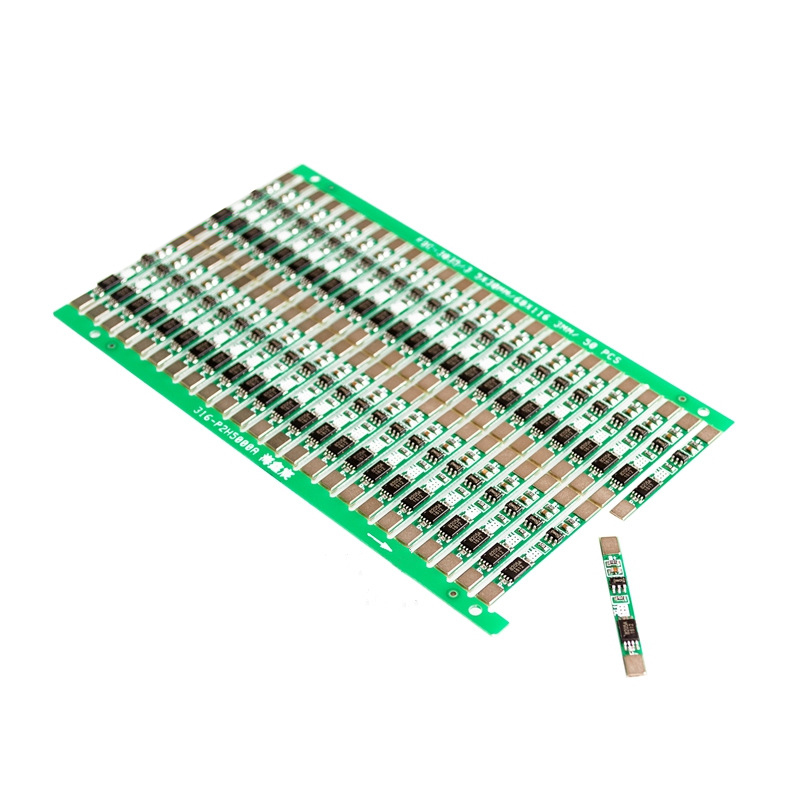

3.7V Lithium Battery Protection Board

Description:

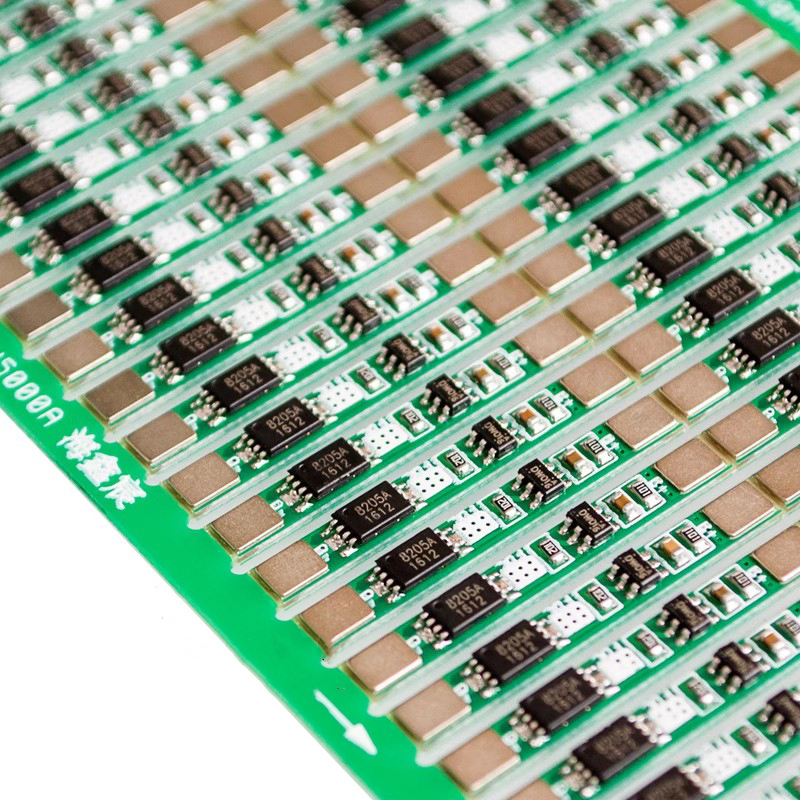

The main IC adopts original rich crystal imported components. Equipped with protection functions such as overcharging, discharging, overcurrent, short circuit, etc., suitable for various capacities and shapes of 3.7V lithium batteries. Adopting rich crystal protection IC, VISHAY, AOS, IR and other high-quality MOSFETs, FR-4 low temperature coefficient plate, with excellent design, fine workmanship, and comprehensive testing. Compact in size, suitable for many occasions that require high integration and low cost, it can meet various performance requirements and ensure the safety and reliability of battery packs.

Technical Parameters:

Overcharge detection voltage: 4.25 ± 0.05V

Overcharge release voltage: 4.23 ± 0.05V

Overdischarge detection voltage: 2.54 ± 0.1V

Overcurrent detection current: 1-3A

Main Functions:

Overcharge protection function, over discharge protection function, short circuit protection function, over current protection function

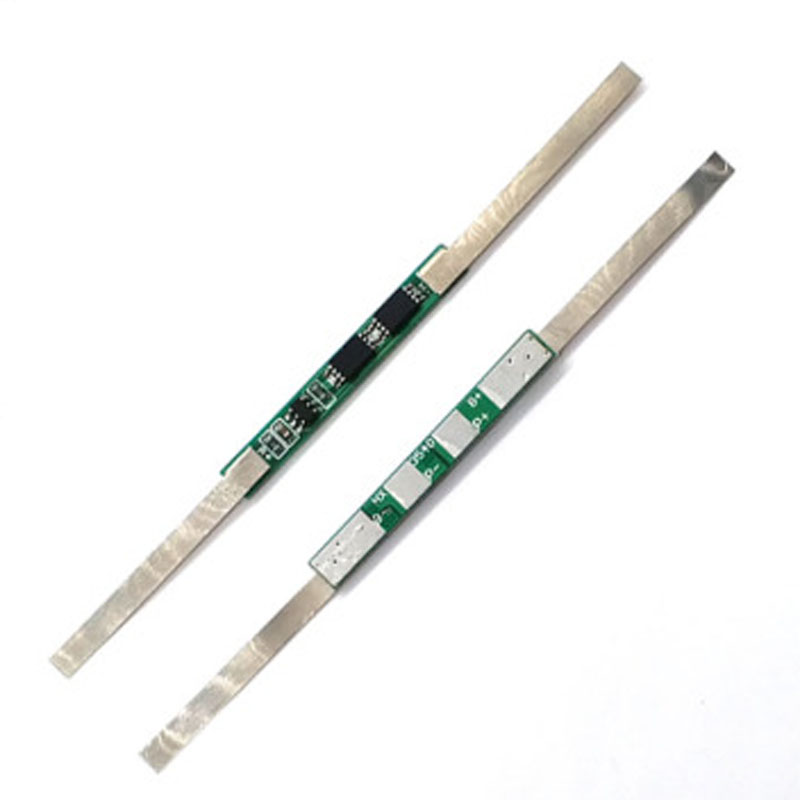

Wiring Instructions:

B+is connected to the positive pole of the battery.

B - Connect to the negative electrode of the battery.

P+is the positive pole of the battery output input

P - is the negative electrode of the battery output input
